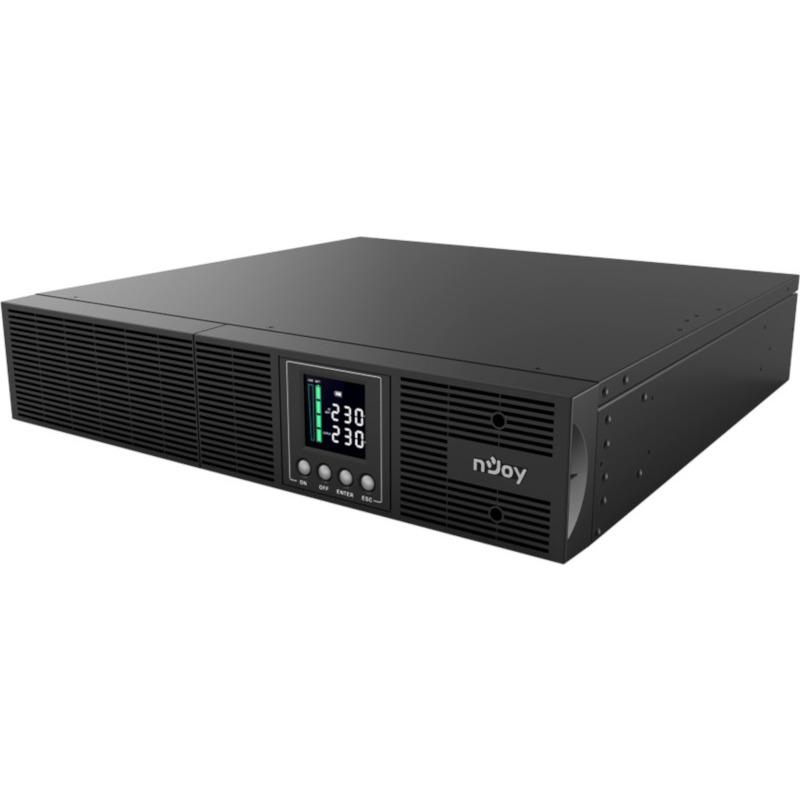

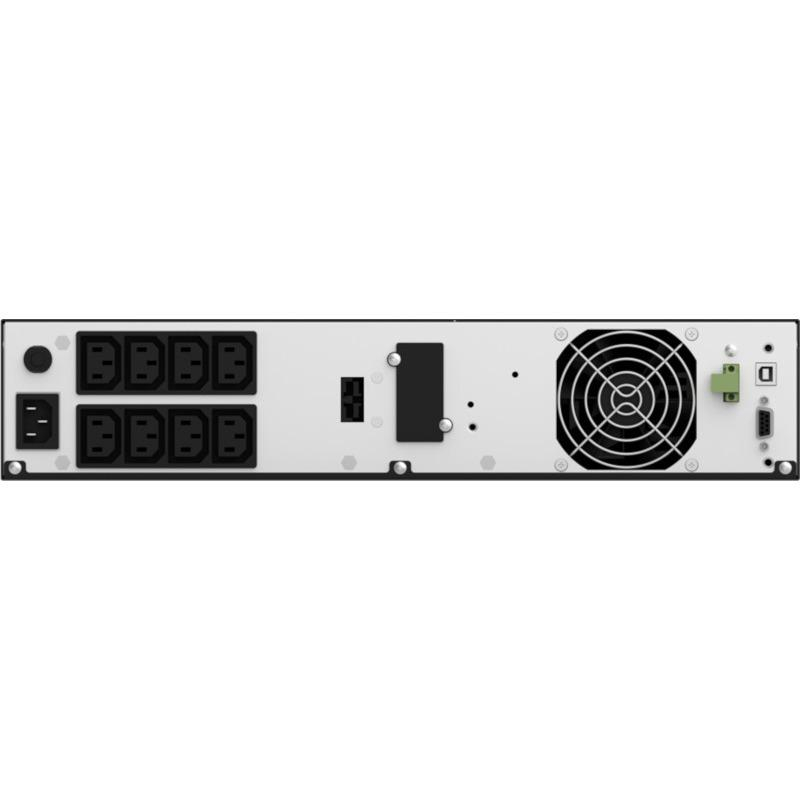

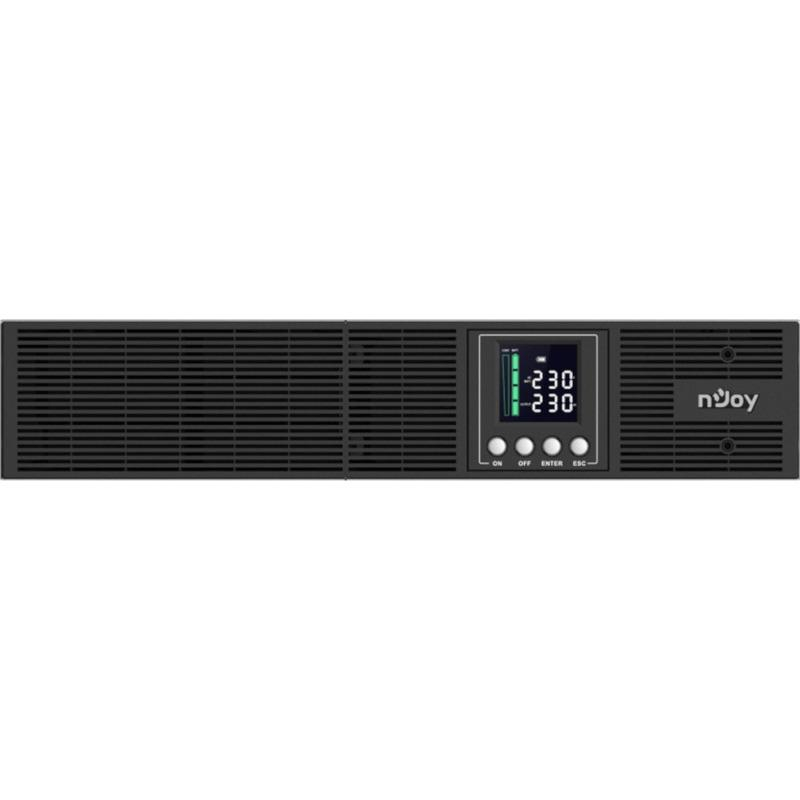

UPS NJOY Aster 1K

Cold start: Yes

Typical backup time at full load: 3.63 min

Typical backup time at half load: 10.13 min

Compliance certificates: CE, RoHS

IEC C13: 8

IEC C14: 1

LED indicators: Yes

Display type: LCD

Rack capacity: 2U

Built-in fan: Yes

Form factor: Rackmount/Tower

Cooling type: Active

ECO mode: Yes

Output power: 900 W

Number of input phases: 1

Number of output phases: 1

Input operation voltage (max): 300 V

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Auto-restart: Yes

Output power capacity: 1 kVA

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Input operation voltage (min): 80 V

Output operation voltage (min): 208 V

Output power factor: 0.9

Output voltage regulation: ±1%

Efficiency (ECO mode): 97%

Output voltage Total Harmonic Distortion (THD): 5%

Power protection features: Battery discharge, Overload

Power source type: AC

Noise level: 45 dB

Tensiune de alimentare: 230 VAC

Numar baterii: 3

Putere: 1000 VA

Greutate: 13.7 Kg

Incarcare: 900 W

Dimensiuni: 438 x 430 x 88 mm

Capacitate baterie: 12V/7Ah

Baterie: GP07122L

Timp Mediu De Functionare: 10 minute 8 secunde - 50% incarcare
3 minute 38 secunde - 100% incarcare

Tip: Online

Master (outer) case length: 566 mm

Master (outer) case gross weight: 15.1 kg

Master (outer) case width: 550 mm

Master (outer) case height: 231 mm

Products per master (outer) case: 1 pc(s)

Atentionari Mod baterie: Da

Atentionari Baterie slaba: Da

Atentionari Supratensiune: Da

Atentionari Supraincarcare: Da

Storage temperature (T-T): -15 - 45 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Rack mount kit: Yes

Cables included: Input power cable

Serial ports quantity: 1

AC outlet types: C13 coupler

Power plug: C14 coupler

Serial interface: Yes

AC outlets quantity: 8 AC outlet(s)

Serial interface type: RS-232

Width: 430 mm

Depth: 438 mm

Height: 88 mm

Weight: 13.7 kg

Garantia Produsului: 36 luni
