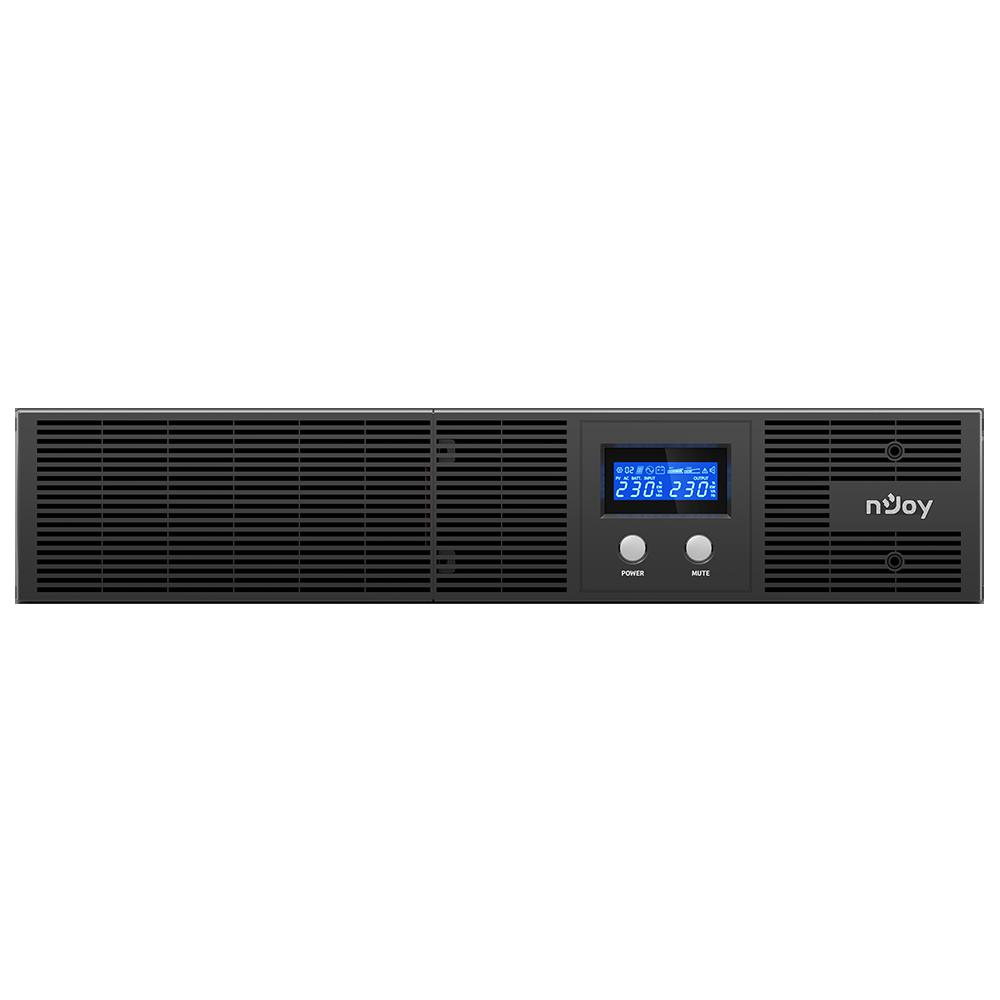

UPS NJOY ARGUS 2200 PWUP-LI220AG-CG01B

Cold start: Yes

Typical backup time at full load: 2 min

Typical backup time at half load: 7.5 min

Compliance certificates: CE, RoHS

IEC C13: 4

LED indicators: Yes

Display type: LCD

Form factor: Rackmount

Rack capacity: 2U

Cooling type: Active

Built-in fan: Yes

Auto-restart: Yes

Emergency Power Off (EPO): Yes

Input frequency: 50 - 60 Hz

Audible alarm(s): Yes

UPS topology: Line-Interactive

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Waveform: Pure sine

Output power capacity: 2.2 kVA

Output operation voltage (max): 230 V

Input operation voltage (max): 290 V

Output power: 1320 W

Input operation voltage (min): 165 V

Output voltage regulation: ±10%

Input power factor: 0.6

Power protection features: Battery discharge, Overload, Over voltage, Overcharge, Overheating

Noise level: 50 dB

Power source type: AC

Automatic Voltage Regulation (AVR): Da

Display: Da

Tip: Line-interactive

Tensiune de alimentare: 230 VAC

Numar baterii: 2

Montare in rack: 2U

Timp de transfer: 4 ms

Putere: 2200 VA

Caracteristici display: Load level, Battery level, AC mode, Battery mode and Fault indicators

Interfata: RS232
USB
Intelligent Port (nu e inclus in pachet)

Baterie: Sigilata si protejata impotriva scurgerilor

Capacitate baterie: 12V 9Ah

Incarcare: 1,32 kW

Timp incarcare: 6 ore (90%)

Timp Mediu De Functionare: 7.5 minute - 50% incarcare
2 minute - 100% incarcare

Dimensiuni: 438 x 400 x 88 mm

Greutate: 18.85 Kg

Altele: Sinusoida pura

Master (outer) case width: 560 mm

Master (outer) case length: 542 mm

Master (outer) case height: 218 mm

Master (outer) case gross weight: 18.9 kg

Products per master (outer) case: 1 pc(s)

Atentionari Baterie slaba: Da

Atentionari Supraincarcare: Da

Management: Da

Atentionari Mod baterie: Da

Atentionari Eroare: Da

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Package width: 560 mm

Package depth: 542 mm

Package weight: 18.9 kg

Package height: 218 mm

Ethernet LAN (RJ-45) ports: 2

Serial ports quantity: 1

Serial interface type: RS-232

AC outlet types: C13 coupler

Serial interface: Yes

AC outlets quantity: 4 AC outlet(s)

Modem (RJ-11) ports: 2

Protectie supratensiune: Da

Protectie Scurt-Circuit: Da

Protectie supraincarcare: Da

Weight: 1.65 kg

Height: 88 mm

Width: 438 mm

Depth: 400 mm

UPS-Management: Yes

Rackable: Yes

Garantia Produsului: 36 luni
