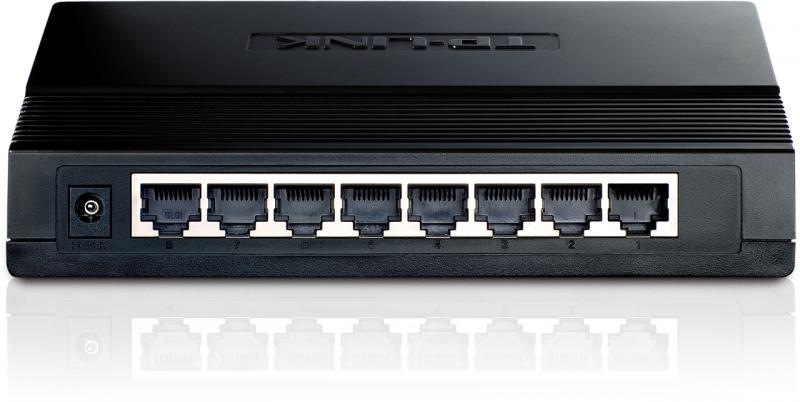

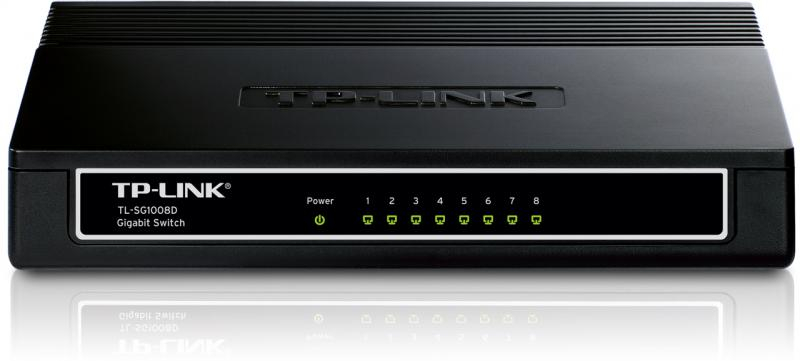

TPL SW 8P-GB UNMNGD DESK

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: CE, FCC, RoHS

Switching capacity: 16 Gbit/s

Jumbo frames: 15000

Packet forwarding rate (100 Mbps): 148800 pps

Packet forwarding rate (1 Gbps): 14880 pps

Packet forwarding rate (10 Mbps): 1488000 pps

Jumbo frames support: Yes

MAC address table: 8000 entries

Packet buffer memory: 2 MB

Store-and-forward: Yes

Stackable: No

Rack mounting: No

Product colour: Black

Housing material: Plastic

LED indicators: Activity, Link, Power

Wall mountable: Yes

Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Full duplex: Yes

10G support: Yes

Power over Ethernet (PoE): No

Heat dissipation: 15.8 BTU/h

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage relative humidity (H-H): 5 - 90%

Cables included: AC

Package type: Box

Package width: 110 mm

Package depth: 185 mm

Package height: 85 mm

Package weight: 300 g

Maximum cable length: 100 m

Fanless: Yes

Gigabit Ethernet (copper) ports quantity: 8

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power connector: DC-in jack

Basic switching RJ-45 Ethernet ports quantity: 8

AC input frequency: 50 - 60 Hz

AC input voltage: 100 - 240 V

Power source: DC

Power supply included: Yes

DC input voltage: 9 V

Input current: 0.6 A

Power consumption (max): 3.53 W

Power consumption (typical): 4.63 W

Sustainability compliance: Yes

Width: 180 mm

Height: 25.5 mm

Depth: 90 mm

LAN port type: Gigabit

Garantia Produsului: 36 luni
