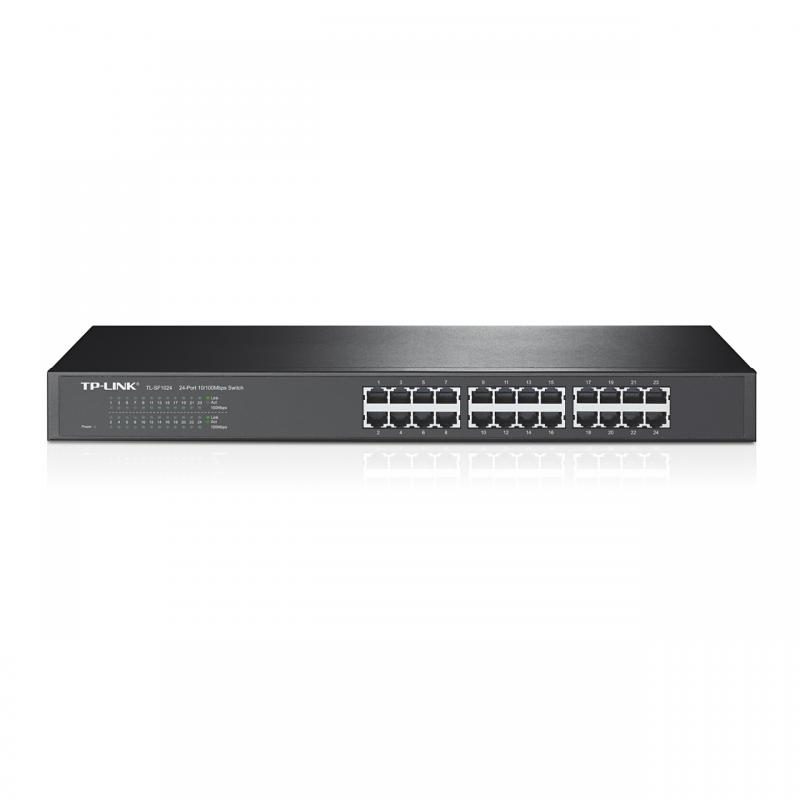

TPL SW 24P-FE UNMNGD RM

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: FCC, CE, RoHS

Store-and-forward: Yes

Switching capacity: 48 Gbit/s

Packet buffer memory: 2 MB

Forwarding rate: 3.57 Mpps

MAC address table: 8000 entries

Stackable: No

Rack mounting: Yes

Form factor: 1U

Product colour: Black

Housing material: Metal

LED indicators: Activity, Link

Ethernet LAN data rates: 10,100 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Flow control support: Yes

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

Routing entries: 1

10G support: No

Half duplex: Yes

Auto MDI/MDI-X: Yes

Auto-negotiation: Yes

Full duplex: Yes

Power over Ethernet (PoE): No

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

Cable types supported: Cat3, Cat4, Cat5, Cat5e

Heat dissipation: 10.88 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Rack mount kit: Yes

Quick start guide: Yes

Cables included: AC

Package width: 250 mm

Package type: Box

Package depth: 528 mm

Package weight: 2.34 kg

Compatible operating systems: Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Installed SFP modules quantity:

Installed SFP+ modules quantity:

Power connector: DC-in jack

Fast Ethernet (copper) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Power source: AC

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power supply included: Yes

Power consumption (typical): 3.53 W

Power consumption (max): 3.53 W

Supported network protocols: CSMA/CD, TCP/IP

MAC address filtering: Yes

Sustainability compliance: Yes

Master (outer) cases per pallet layer: 1 pc(s)

Shipping (inner) case height: 1 mm

Shipping (inner) case width: 1 mm

Shipping (inner) case length: 1 mm

Shipping (inner) case net weight: 1 g

Layers per pallet (air): 1 pc(s)

Layers per pallet (sea): 1 pc(s)

Pallet gross weight (air): 1 g

Master (outer) cases per pallet (air): 11 pc(s)

Products per pallet (air): 1 pc(s)

Pallet gross length: 1 mm

Pallet gross width: 1 mm

Pallet gross weight (sea): 1 g

Master (outer) cases per pallet (sea): 1 pc(s)

Products per shipping (inner) case: 11 pc(s)

Pallet height (air): 1.1 cm

Products per pallet (sea): 1 pc(s)

Pallet height (sea): 1.1 cm

Width: 440 mm

Height: 44 mm

Depth: 180 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
