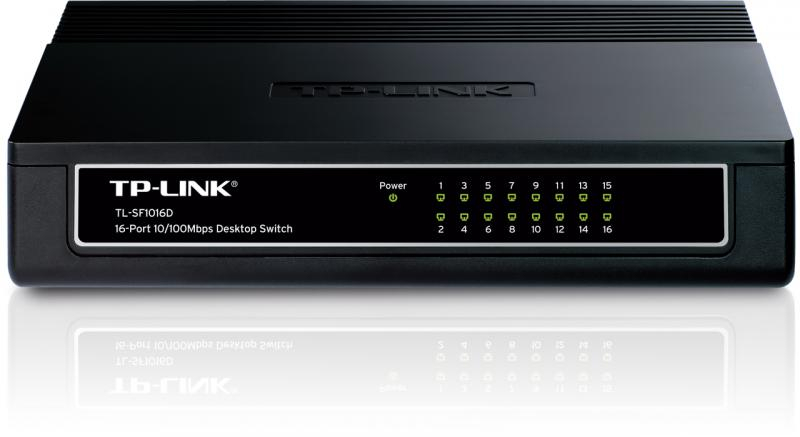

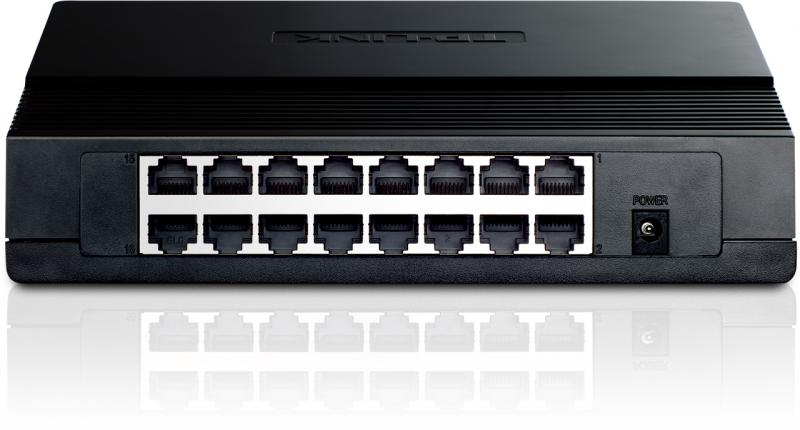

TPL SW 16P-FE UNMNGD DESK

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Certification: FCC, CE, RoHS

MAC address table: 8000 entries

Switching capacity: 32 Gbit/s

Packet buffer memory: 2 MB

Store-and-forward: Yes

Throughput: 23.8 Mpps

Stackable: No

Rack mounting: Yes

Wall mountable: Yes

Product colour: Black

LED indicators: Yes

Ethernet LAN data rates: 10,100 Mbit/s

Flow control support: Yes

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Harmonized System (HS) code: 85176990

Switch type: Unmanaged

MAC address auto-learning supported: Yes

10G support: No

Half duplex: Yes

Auto-negotiation: Yes

Full duplex: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Copper ethernet cabling technology: 100Base-TX, 10Base-T

Heat dissipation: 11.01 BTU/h

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 5 - 90%

Package type: Box

Package height: 68 mm

Package width: 223 mm

Package depth: 285 mm

Package weight: 590 g

Minimum system requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux

Fanless: Yes

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Installed SFP modules quantity:

Fast Ethernet (copper) ports quantity: 16

Installed SFP+ modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 16

Power connector: DC-in jack

DC input voltage: 9 V

Power supply included: Yes

Input current: 0.6 A

AC input voltage: 100 - 240 V

Power source: DC

AC input frequency: 50 - 60 Hz

Power consumption (max): 3.23 W

Power consumption (typical): 2.23 W

Sustainability compliance: Yes

Depth: 180 mm

Height: 44 mm

Width: 294 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
