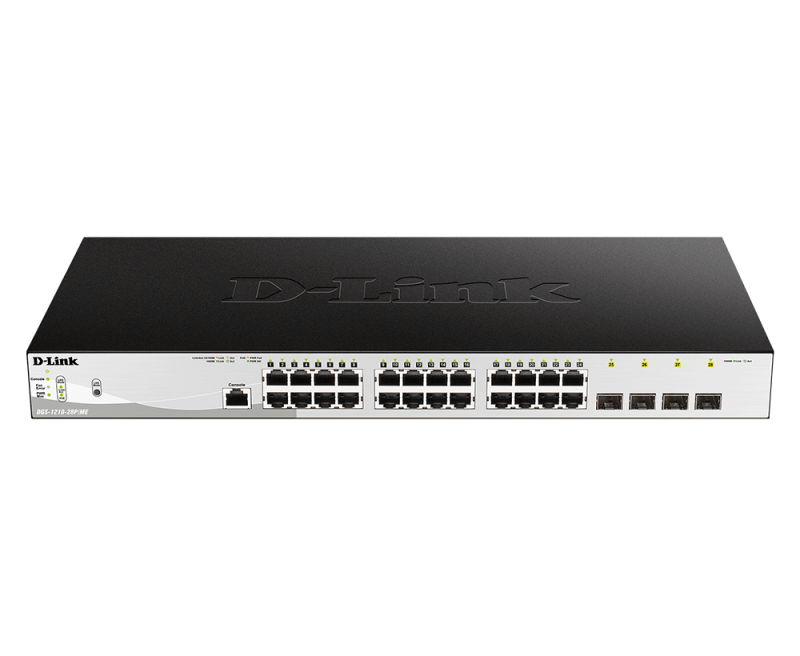

DLINK SW 24P-GB 4CMB 12P-POE SMART RM

Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Certification: FCC Class AnCE Class AnICES-003nVCCI Class AnC-TicknBSMI

Store-and-forward: Yes

Switching capacity: 56 Gbit/s

Maximum data transfer rate: 1 Gbit/s

Forwarding rate: 41.7 Mpps

Number of static routes: 96

Number of IP interfaces: 4

Static route: Yes

Number of queues: 8

MAC address table: 16000 entries

Packet buffer memory: 1.5 MB

Form factor: 1U

Rack mounting: Yes

Stackable: No

Number of fans: 3 fan(s)

LED indicators: Activity, Fan fail, Link, Power, Speed

Ethernet LAN data rates: 1000 Mbit/s

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flash memory: 32 MB

Flow control support: Yes

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Mean time between failures (MTBF): 331669 h

Power protection features: Surge protection

Harmonized System (HS) code: 85176990

Configuring Location Settings (CLI): Yes

Traffic classification: Yes

ARP inspection: Yes

Switch layer: L2

Web-based management: Yes

System event log: Yes

Switch type: Managed

Multicast support: Yes

Multicast features: Controllable multicast

Number of multicast groups filtered: 256

Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2

Cable types supported: Cat5, Cat5e

IPv4 routes: 64

IPv6 routes: 32

Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN

Number of VLANs: 4094

Active link detection: Yes

Auto MDI/MDI-X: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Auto-negotiation: Yes

Half duplex: Yes

Broadcast storm control: Yes

Spanning tree protocol: Yes

Port mirroring: Yes

Full duplex: Yes

Power over Ethernet (PoE): Yes

Link aggregation: Yes

Storage relative humidity (H-H): 0 - 95%

Heat dissipation: 857.98 BTU/h

Storage temperature (T-T): -20 - 70 °C

Operating temperature (T-T): -5 - 50 °C

Operating relative humidity (H-H): 0 - 95%

Fiber ethernet cabling technology: 1000BASE-X

Package width: 365 mm

Package depth: 521 mm

Package weight: 4.93 kg

Package height: 92 mm

Noise level: 52.9 dB

Fanless: No

Memory type: DDR3-SDRAM

Installed SFP+ modules quantity: 4

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 24

Gigabit Ethernet (copper) ports quantity: 24

Console port: RJ-45

Fiber optic connector: SFP

Power over Ethernet (PoE) ports quantity: 24

SFP/SFP+ slots quantity: 4

Installed SFP modules quantity: 4

Input voltage: 100-240 V

Power consumption (max): 251.5 W

Power source: AC

AC input frequency: 50/60 Hz

Power consumption (typical): 238.4 W

Total Power over Ethernet (PoE) budget: 193 W

GARP VLAN Registration Protocol (GVRP): Yes

SSH/SSL support: Yes

Loop protection: Yes

IGMP snooping: Yes

MAC address filtering: Yes

Access Control List (ACL): Yes

Password protection: Yes

BPDU filtering/protection: Yes

IP-MAC-Port binding: Yes

Access Control List (ACL) rules: 256

Access Control List (ACL) ingress: 256

Security algorithms: EAP, SNMP, SNMPv2, SNMPv3

Authentication type: AAA, RADIUS, TACACS+

Queue scheduling algorithms: Strict Priority Queue (SPQ), Weighted Round Robin (WRR)

DHCP features: DHCP server, DHCP client

Sustainability certificates: UL ECOLOGO

Sustainability compliance: Yes

Products per shipping (inner) case: 3 pc(s)

Shipping (inner) case height: 39.3 cm

Shipping (inner) case length: 53.9 cm

Shipping (inner) case net weight: 14.8 kg

Products per pallet (air): 72 pc(s)

Pallet height (air): 131.4 cm

Products per pallet (sea): 120 pc(s)

Master (outer) cases per pallet (air): 24 pc(s)

Pallet height (sea): 2.1 m

Shipping (inner) case width: 29.5 cm

Master (outer) cases per pallet (sea): 40 pc(s)

Pallet gross length: 110 cm

Pallet gross width: 120 cm

Pallet gross weight (air): 401.7 kg

Pallet gross weight (sea): 652.9 kg

Shipping (inner) case gross weight: 15.7 kg

Depth: 250 mm

Height: 44 mm

Width: 440 mm

Weight: 3.7 kg

LAN-Ports: 24

Layer: Unmanaged

Rackable: Yes

LAN-Port-Type: Gigabit

Redundant-PSU: No

Garantia Produsului: 60 luni
