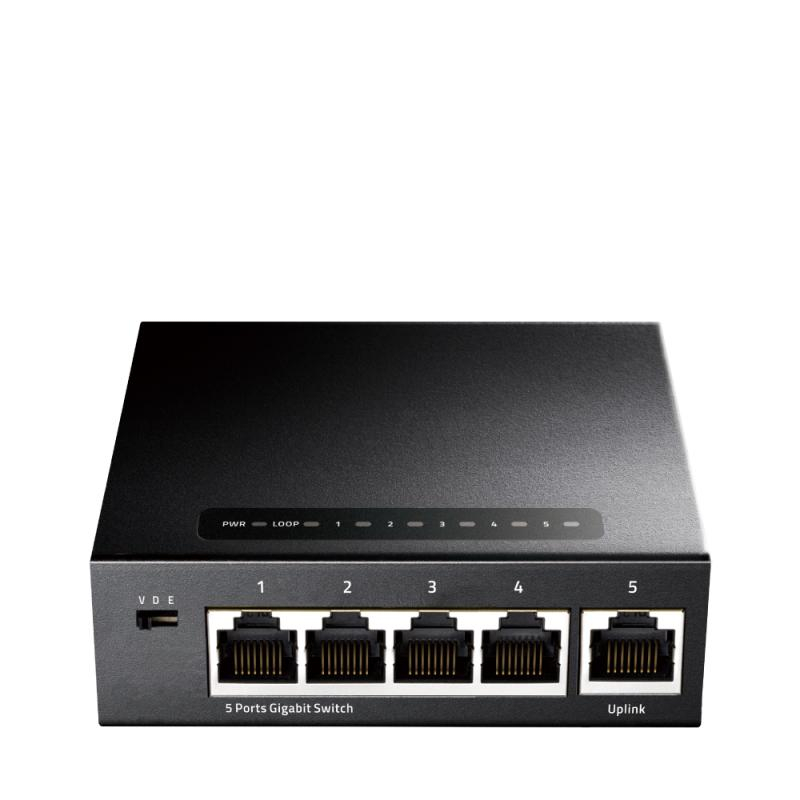

CUDY 5-Port Gigabit Metal Switch

Jumbo frames support: Yes

Store-and-forward: Yes

Switching capacity: 10 Gbit/s

Packet buffer memory: 1 MB

MAC address table: 1000 entries

Jumbo frames: 2000

Throughput: 74.4 Mpps

LED indicators: Loop, Link, Power

Product colour: Black

Stackable: No

Rack mounting: No

Ethernet LAN data rates: 10,100,1000 Mbit/s

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

VLAN support: Yes

Flow control support: Yes

Mean time between failures (MTBF): 100000 h

Products per master (outer) case: 40 pc(s)

Master (outer) case height: 400 mm

Master (outer) case length: 320 mm

Master (outer) case width: 505 mm

Master (outer) case gross weight: 17 kg

MAC address auto-aging supported: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX

Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1

Half duplex: Yes

MAC address auto-learning supported: Yes

Auto-negotiation: Yes

Auto MDI/MDI-X: Yes

Power over Ethernet (PoE): No

Full duplex: Yes

Operating altitude: 0 - 3048 m

Storage relative humidity (H-H): 5 - 90%

Operating relative humidity (H-H): 10 - 90%

Operating temperature (T-T): -10 - 50 °C

Storage temperature (T-T): -40 - 70 °C

Manual: Yes

Cables included: DC

Package height: 63 mm

Package weight: 400 g

Package type: Box

Package depth: 120 mm

Package width: 175 mm

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity: 5

Power source: AC/DC

AC input voltage: 100 - 240 V

Power supply included: Yes

DC input voltage: 5 V

Width: 100 mm

Height: 26 mm

Depth: 70 mm

Weight: 200 g

Layer: Layer-2

Rackable: No

LAN-Port-Type: Gigabit

Redundant-PSU: No

LAN-Ports: 5

Garantia Produsului: 24 luni
