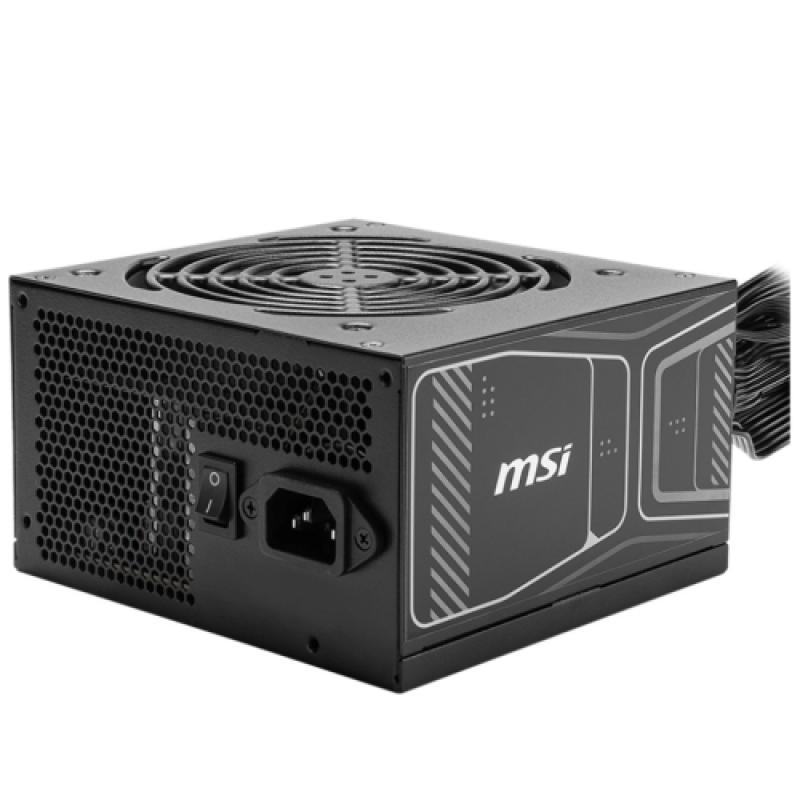

SURSA MSI MAG A850GN PCIE5

20+4 Pin ATX: 1

6+2 PCI-E: 2

4+4 Pin ATX/EPS: 2

16 Pin PCI-E: 1

SATA: 4

Molex: 2

On/off switch: Yes

Cooling type: Active

Number of fans: 1 fan(s)

Illumination: No

Fan diameter: 12 cm

Recomandat Gaming: Da

PFC: Active

Sursa Modulara: Nu

Dimensiuni: 140 x 150 x 86 mm

Numar de ventilatoare: 1 x 120 mm

Putere Sursa: 850 W

Eficienta: 90%

Certificare: 80+ Gold

Permite Asamblare: Premium, Gold

Permite Wire Management: Da

Tip sursa: ATX 3.1

Voltaj/Amperaj: 100-240V/ 47-63Hz

Protectii: OCP, OVP, OPP, OTP, SCP

Harmonized System (HS) code: 84733020

Package type: Box

Purpose: PC

Power supply unit (PSU) form factor: ATX

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

80 PLUS certification: 80 PLUS Gold

PCI Express power connectors (16-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

EPS power connector (8-pin): No

PCI Express power connectors (6+2 pin): 2

ATX Power connector (24-pin): No

Number of SATA power connectors: 4

PCI Express power connectors (6-pin):

PCI Express power connectors (8-pin):

PCI Express power connectors (12+4 pin):

PCI Express power connectors (12-pin):

ATX power connector (20+4 pin): No

Motherboard power cable length: 60 cm

CPU power connector (4+4 pin): Yes

Cabling type: Non-Modular

Motherboard power connector: 20+4 pin ATX

EPS power connector (4+4 pin): Yes

Combined power (+5Vsb): 15 W

Max output current (+5Vsb): 3 A

Combined power (-12V): 3.6 W

Max output current (-12V): 0.3 A

Max output current (+12V): 0.3 A

Number of +12V rail(s): 1

Total power: 850 W

Efficiency: 90%

Combined power (+12V): 3.6 W

Combined power (+5V): 110 W

Max output current (+5V): 20 A

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 110 W

Max output current (+3.3V): 20 A

AC input frequency: 47-63 Hz

+5Vsb: 3 A

+12V 1: 70.5 A

-12V: 0.3 A

Rail +12V: 1

+5V: 20 A

+3.3V: 20 A

PSU Type: ATX

Conectivitate: Non Modular

Iluminare RGB: Nu

PSU Power: 850 W

Certificare 80 Plus: 80 PLUS Gold

Width: 150 mm

Height: 86 mm

Depth: 140 mm

Modular: Yes

Garantia Produsului: 120 luni
