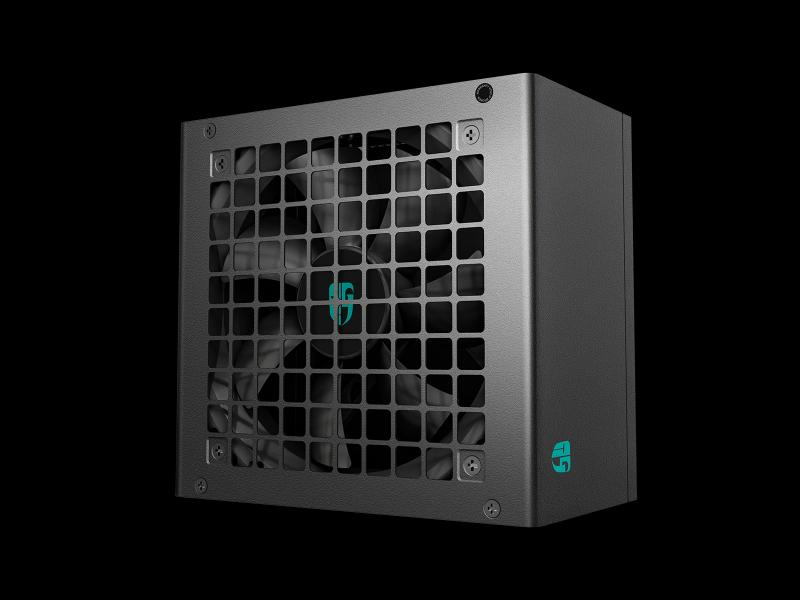

SURSA DEEPCOOL PF500X 500W 80 PLUS BRONZ

Compliance certificates: CCC, CE, KC, RCM, TÜV mark, WEEE

On/off switch: Yes

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

Product colour: Black

Warranty period: 3 year(s)

Operating temperature (T-T): 0 - 40 °C

Cable ties included: Yes

Screws included: Yes

Cables included: AC

Package type: Box

Bearing technology: HYB

ATX version: 2.52

Mean time between failures (MTBF): 40000 h

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

Power supply unit (PSU) form factor: ATX

Motherboard power connector: 20+4 pin ATX

Cabling type: Non-Modular

Motherboard power cable length: 55 cm

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

PCI Express connector: Yes

Peripheral (Molex) power connectors (4-pin): 1

PCI Express power cable length: 55 cm

Peripheral (Molex) power cable length: 900 mm

PCI Express power connectors (6+2 pin): 2

Number of SATA power connectors: 3

CPU power cable length: 62 cm

SATA power cable length: 450,600,750 mm

Number of SATA power cables: 2

Combined power (+12V): 499.2 W

Max output current (+12V): 41.6 A

Efficiency: 88%

AC input voltage: 200 - 240 V

AC input frequency: 50/60 Hz

Max output current (+5V): 16 A

Total power: 500 W

Max output current (+3.3V): 16 A

Input current: 5 A

Hold time: 16 ms

Power Factor Correction (PFC) type: Active

Combined power (+5Vsb): 15 W

Max output current (+5Vsb): 3 A

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

Max output current (-12V): 0.3 A

Sustainability certificates: ErP, Triman

Depth: 140 mm

Width: 150 mm

Height: 86 mm

Modular: No

PSU-Power: 501W-750W

Garantia Produsului: 120 luni
