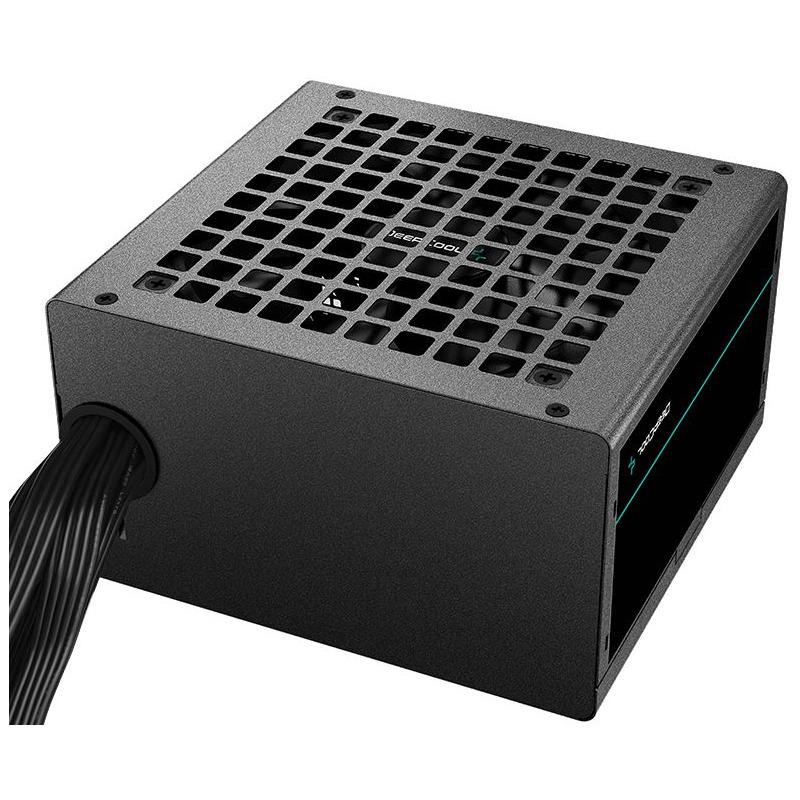

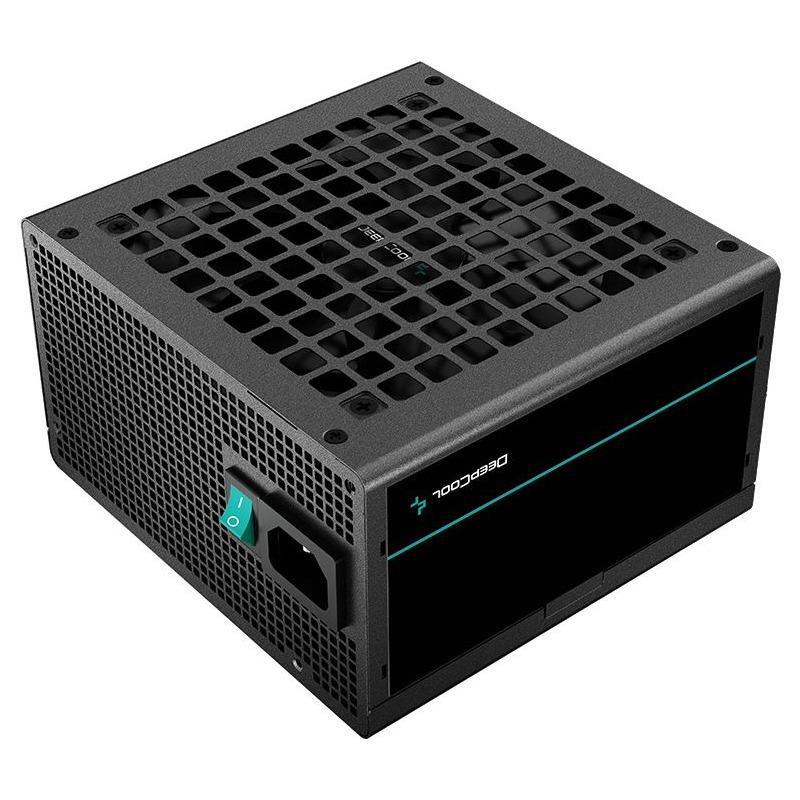

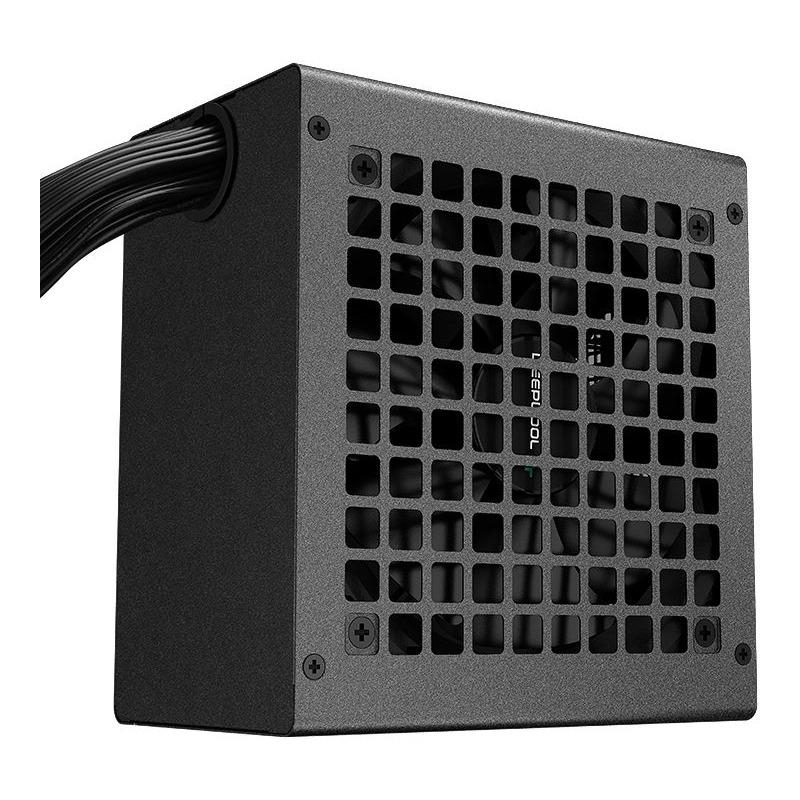

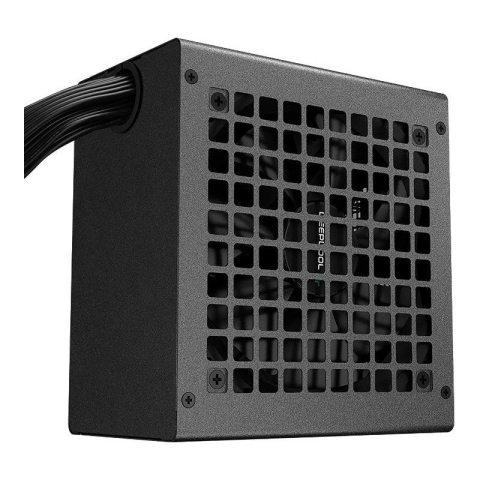

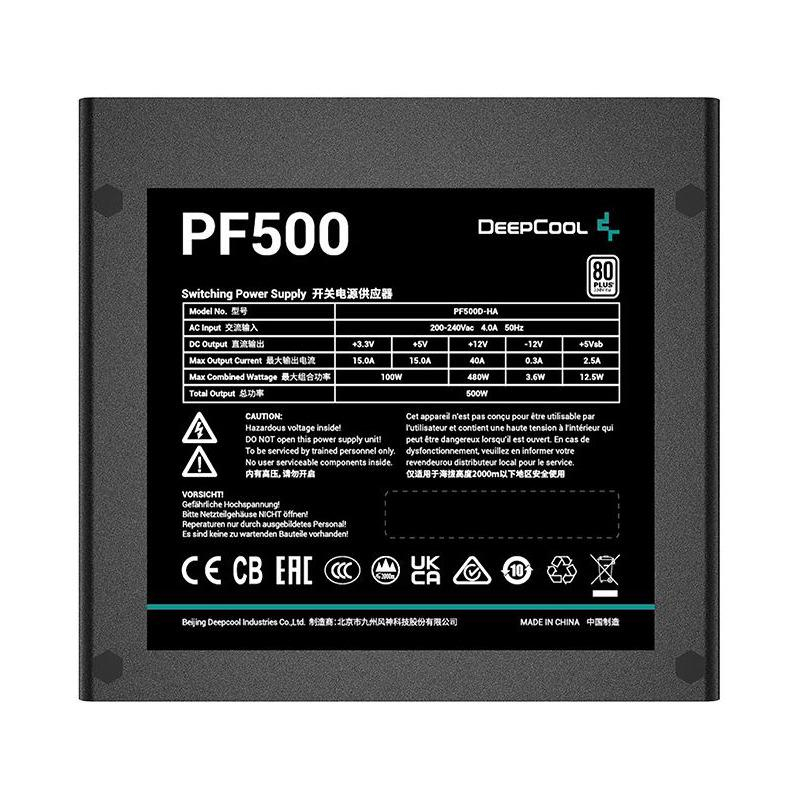

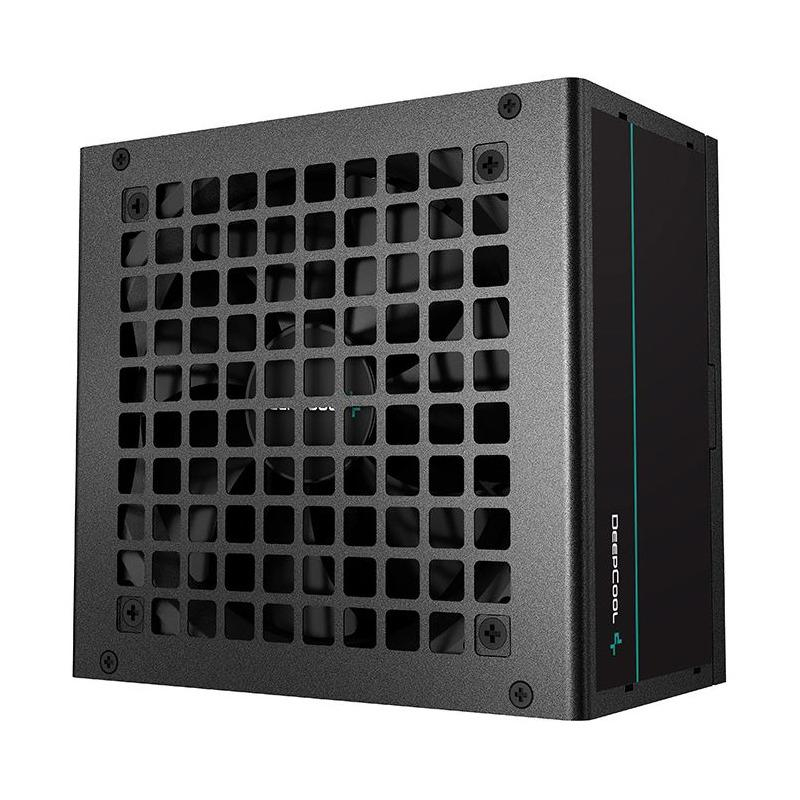

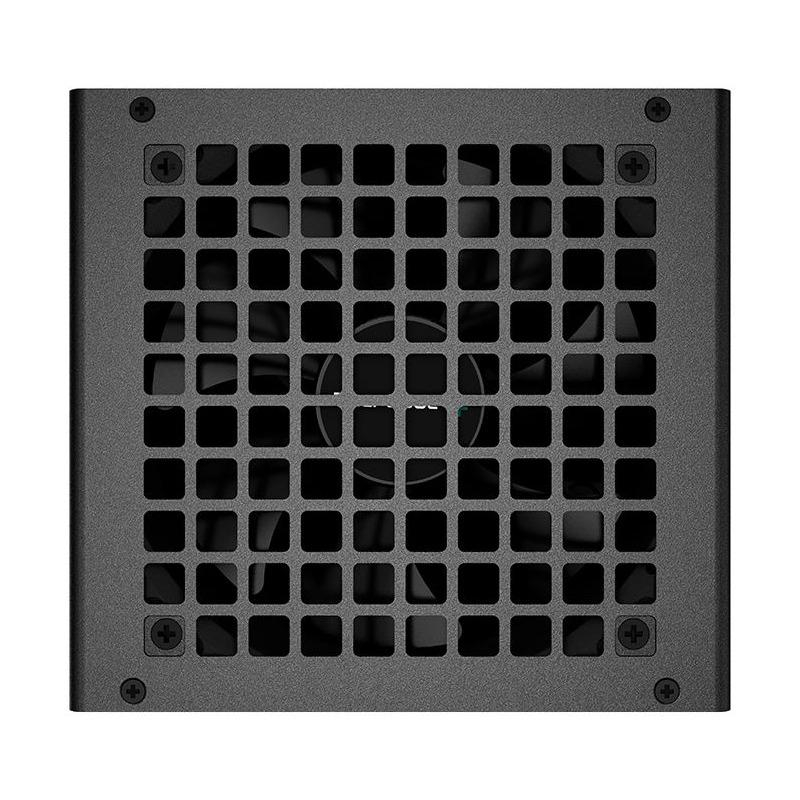

SURSA DEEPCOOL PF500

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Product colour: Black

On/off switch: Yes

Operating temperature (T-T): 0 - 40 °C

Cables included: AC

Package type: Box

ATX version: 2.4

Power protection features: Over power, Over voltage, Short circuit, Under voltage

80 PLUS certification: 80 PLUS

Mean time between failures (MTBF): 100000 h

Purpose: PC/Server

Power supply unit (PSU) form factor: ATX

Cabling type: Non-Modular

Motherboard power cable length: 55 cm

EPS power connector (4+4 pin): Yes

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power connectors (4-pin):

PCI Express power connectors (6+2 pin): 2

Number of SATA power connectors: 4

SATA power cable length: 450,600,750,900 mm

Hold time: 16 ms

Efficiency: 85%

AC input frequency: 50 Hz

Combined power (+12V): 480 W

Max output current (+12V): 40 A

Total power: 500 W

Max output current (+5Vsb): 2.5 A

Max output current (+5V): 15 A

Max output current (-12V): 0.3 A

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 12.5 W

Max output current (+3.3V): 15 A

AC input voltage: 220 - 240 V

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Garantia Produsului: 36 luni
