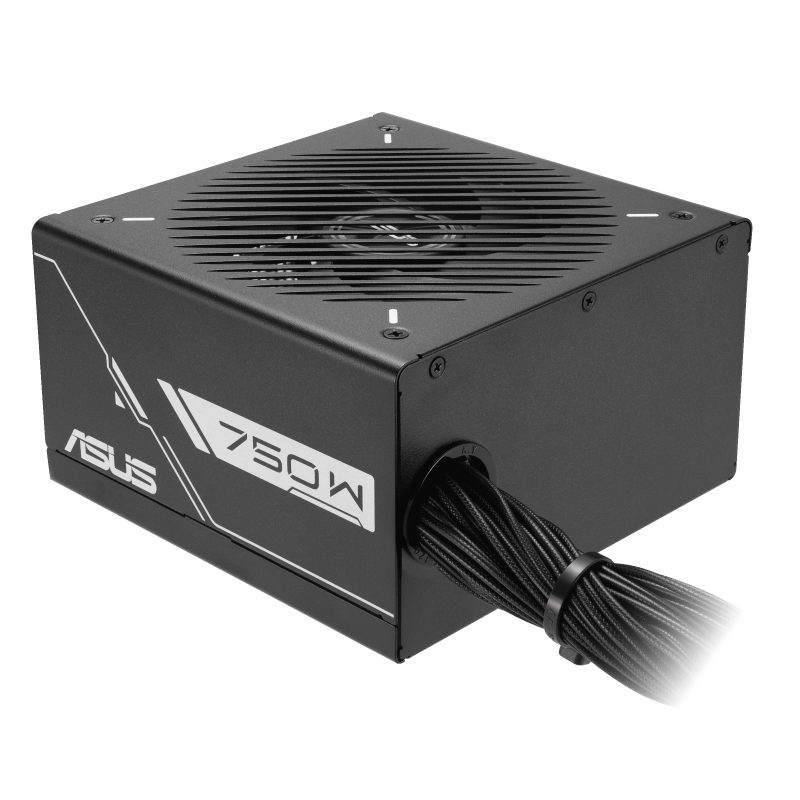

SURSA ASUS PRIME 750B W BRONZE

Sursa ASUS PRIME 750W 80 PLUS BRONZE, Active PFC, ATX12V, protectii OPP/OVP/UVP/SCP/OCP/OTP
Garantie: 120 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 13.5 cm
On/off switch: Yes
Package width: 340 mm
Package weight: 3 kg
Package type: Box
Package height: 115 mm
Package depth: 196 mm
Bearing technology: Ball bearing
Mean time between failures (MTBF): 120000 h
Power supply unit (PSU) form factor: ATX
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Non-Modular
Motherboard power cable length: 60 cm
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
CPU power cable length: 80 cm
PCI Express power connectors (8-pin): 3
SATA power cable length: 120,400 mm
Peripheral (Molex) power cable length: 120,400 mm
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Max output current (+5V): 20 A
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Efficiency: 80Plus-Bronze
Max output current (+5Vsb): 2.5 A
Total power: 750 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A
Weight: 1.92 kg
Width: 150 mm
Depth: 150 mm
Height: 86 mm
PSU-Power: 501W-750W
Modular: Yes
