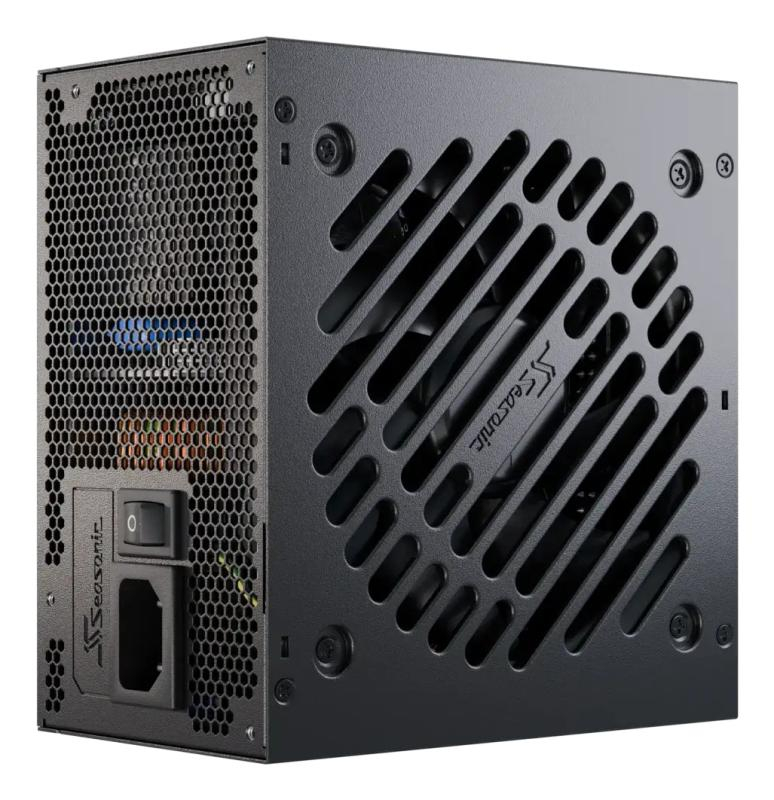

Seasonic SRP-CGX751-A5A32SF power supply

Seasonic SRP-CGX751-A5A32SF. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA
Garantie: 84 luni


Specificatii tehnice

Certification: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Product colour: Black
On/off switch: Yes
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)
Operating temperature (T-T): 0 - 50 °C
Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA
Package type: Box
Purpose: PC
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Cabling type: Fully-Modular
Number of PATA power connectors: 2
Max output current (+12V): 0.3 A
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power protection features: Over current, Over power, Under voltage, Over total voltage, Over voltage, Short circuit
Max output current (+3.3V): 20 A
Input current: 9 A
Combined power (+12V): 744 W
Total power: 750 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Combined power (+3.3V): 100 W
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Depth: 140 mm
Width: 150 mm
Height: 86 mm
