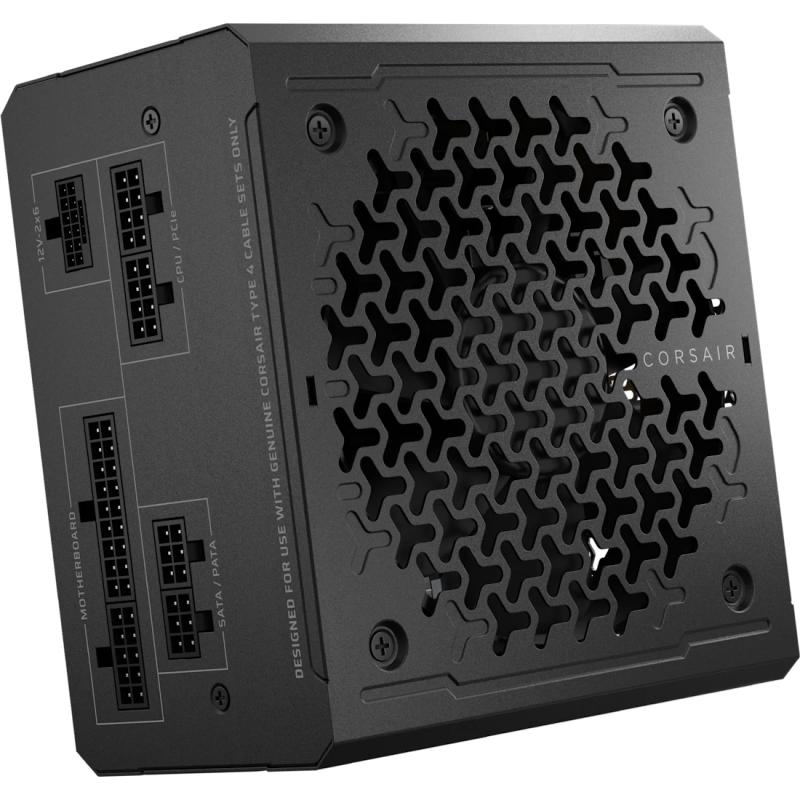

CR PSU RM650e ATX MODULAR 650W

Compliance certificates: CE, RoHS, UKCA

Fan location: Front

On/off switch: Yes

Number of fans: 1 fan(s)

Cooling type: Active

Fan diameter: 12 cm

Package type: Box

Power supply unit (PSU) form factor: ATX

Purpose: PC

80 PLUS certification: 80 PLUS Gold

Bearing technology: Rifle

ATX version: 3.1

Mean time between failures (MTBF): 100000 h

ATX power connector (12+4 pin): Yes

Number of PATA power connectors: 2

PCI Express power connectors (6+2 pin): 2

Cabling type: Fully-Modular

Motherboard power connector: 24-pin ATX

Number of SATA power connectors: 6

ATX Power connector (24-pin): Yes

CPU power connector (4+4 pin): Yes

PCI Express connector: Yes

Total power: 650 W

Combined power (+5Vsb): 15 W

Max output current (+5Vsb): 3 A

Combined power (+3.3V): 110 W

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Combined power (+5V): 110 W

Input current: 10 - 5 A

Combined power (+12V): 650 W

Max output current (+12V): 54.2 A

Efficiency: 80Plus-Gold

Combined power (-12V): 650 W

Max output current (-12V): 54.2 A

AC input frequency: 47-63 Hz

Height: 150 mm

Width: 140 mm

Weight: 2.73 kg

Depth: 86 mm

PSU-Power: 501W-750W

Modular: Yes

Garantia Produsului: 84 luni
