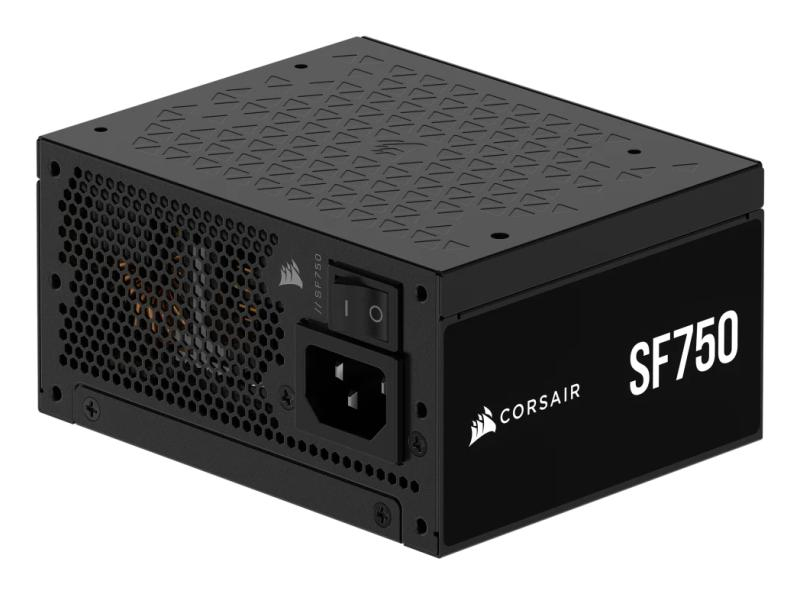

CR PSU 750W CP-9020284-EU

Sursa CORSAIR 750W 80+ Platinum, Active PFC, Modulara, OVP, UVP, SCP, OTP, OPP
Garantie: 120 luni


Specificatii tehnice

Fan location: Top
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 9.2 cm
Product colour: Black
On/off switch: Yes
Cables included: AC, CPU, PATA, PCIe, SATA
Package type: Box
ATX version: 3.1
Power supply unit (PSU) form factor: SFX
Bearing technology: FDB
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 100000 h
Silent mode: Yes
Motherboard power connector: 24-pin ATX
Cabling type: Fully-Modular
PCI Express power connectors (6+2 pin): 2
Number of PATA power connectors: 1
Number of SATA power connectors: 3
PCI Express power cable length: 40 cm
Motherboard power cable length: 30 cm
EPS power connector (4+4 pin): Yes
SATA power cable length: 445 mm
AC input voltage: 100 - 240 V
Combined power (-12V): 750 W
Max output current (-12V): 62.5 A
Input current: 10 - 5 A
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Efficiency: 80Plus-Platinum
Total power: 750 W
Combined power (+3.3V): 130 W
Combined power (+12V): 750 W
Combined power (+5V): 130 W
Combined power (+5Vsb): 15 W
Max output current (+12V): 62.5 A
Max output current (+5Vsb): 3 A
AC input frequency: 47-63 Hz
Weight: 2.15 kg
Modular: Yes
