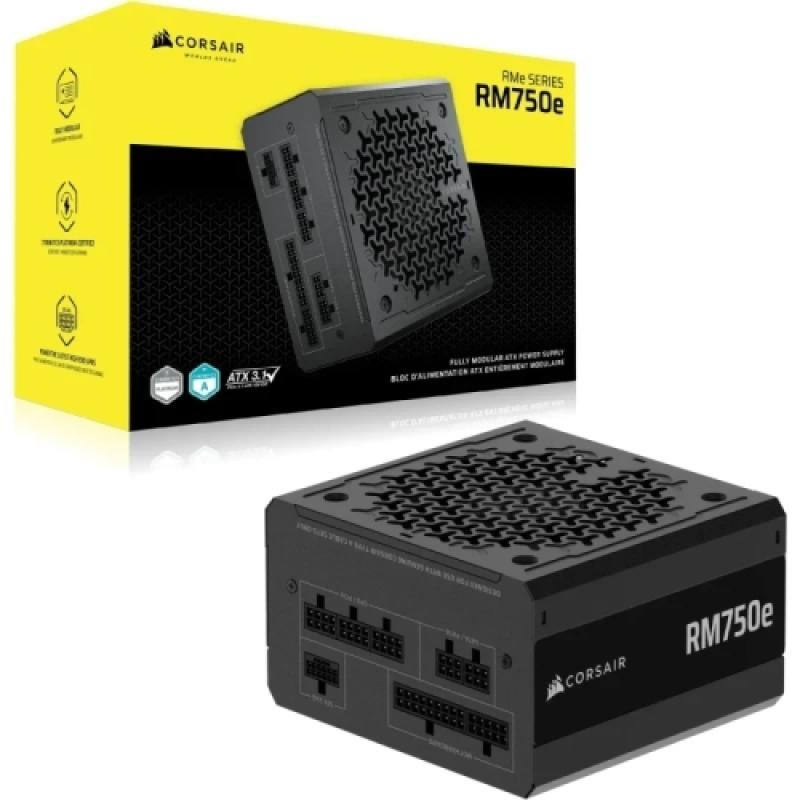

CORSAIR PSU RM750e 750W 80PLUS GOLD

Sursa CORSAIR RM750e 750W 80PLUS GOLD ATX 3.1, full modulara
Garantie: 84 luni


Specificatii tehnice

Compliance certificates: CE, RoHS, UKCA
20+4 Pin ATX: 1
SATA: 6
4+4 Pin ATX/EPS: 2
6+2 PCI-E: 3
Molex: 2
Alti conectori: 1 x 16 Pin PCI-E 12VHPWR
On/off switch: Yes
Fan location: Front
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Recomandat Gaming: Da
Eficienta: 90%
Tip sursa: ATX 3.1
Putere Sursa: 750 W
Numar de ventilatoare: 1x 120 mm
Dimensiuni: 150 x 140 x 86 mm
Sursa Modulara: Da, Full Modulara
Certificare: 80+ Gold
Permite Asamblare: Premium, Gold
Permite Wire Management: Da
Mean time between failures (MTBF): 100000 h
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Bearing technology: Rifle
ATX version: 3.1
ATX power connector (12+4 pin): Yes
Number of PATA power connectors: 2
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 24-pin ATX
Cabling type: Fully-Modular
ATX Power connector (24-pin): Yes
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Total power: 750 W
Combined power (+12V): 750 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Input current: 10 - 5 A
Combined power (+5V): 110 W
Max output current (+12V): 54.2 A
Efficiency: Not certified
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Rail +12V: 1
+5V: 20 A
+3.3V: 20 A
+12V 1: 54.2 A
+5Vsb: 3 A
PFC: Active
Weight: 2.9 kg
Depth: 86 mm
Width: 140 mm
Height: 150 mm
Modular: Yes
