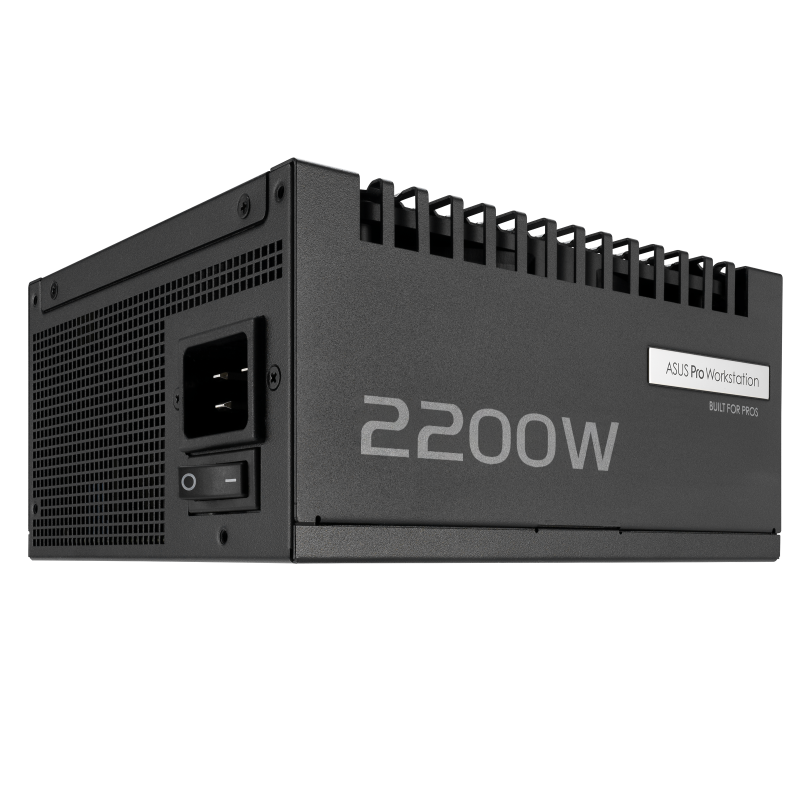

ASUS Pro WS 2200W Platinum power supply

On/off switch: Yes

Cooling type: Active

Warranty period: 10 year(s)

Package type: Box

Package width: 346 mm

Package weight: 5.06 kg

Package height: 144 mm

Package depth: 208 mm

Purpose: PC

80 PLUS certification: 80 PLUS Platinum

Power supply unit (PSU) form factor: ATX

Bearing technology: Ball bearing

ATX version: 3.1

PCI Express power cable length: 75 cm

SATA power cable length: 120,400 mm

Number of SATA power connectors: 12

CPU power cable length: 100 cm

Peripheral (Molex) power cable length: 150,400 mm

PCI Express power connectors (16-pin): 4

Motherboard power cable length: 61 cm

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 4

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

Peripheral (Molex) power connectors (4-pin): 3

Motherboard power connector: 20+4 pin ATX

Combined power (+3.3V): 130 W

Combined power (+5V): 130 W

Combined power (-12V): 9.6 W

Combined power (+5Vsb): 15 W

Max output current (+3.3V): 25 A

Max output current (+5V): 25 A

Max output current (-12V): 0.8 A

Max output current (+5Vsb): 3 A

Efficiency: 92%

Power Factor Correction (PFC) type: Active

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Total power: 2200 W

Combined power (+12V): 2200 W

AC input voltage: 200-240 V

Weight: 2.13 kg

Height: 86 mm

Width: 150 mm

Depth: 17.5 mm
