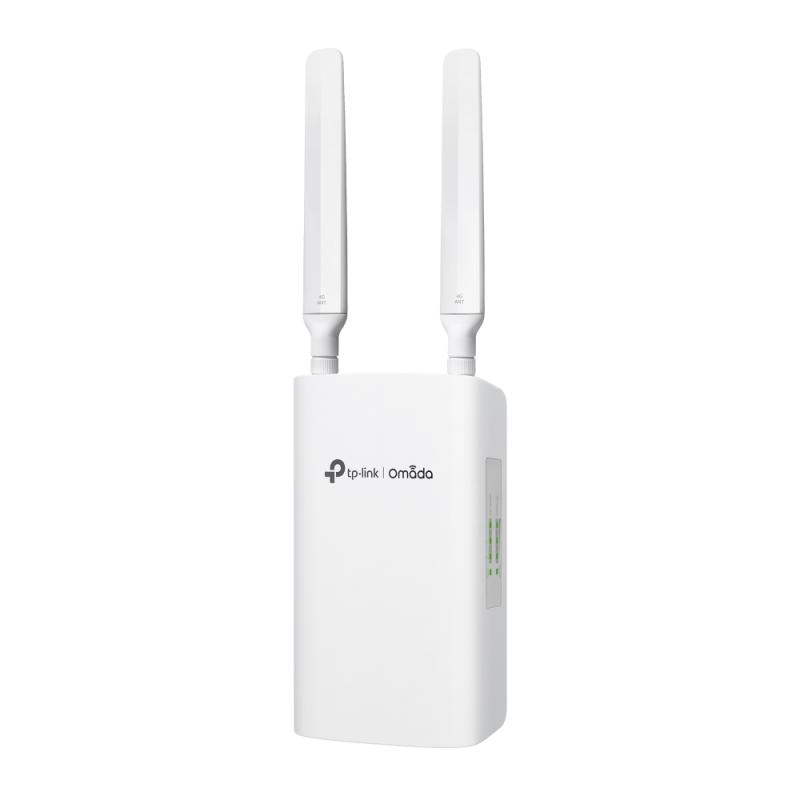

Omada 4G+ Cat6 AX3000 Outdoor/Indoor

Omada 4G+Cat6 AX3000 Outdoor/Indoor Gateway PORT: 3× Gigabit WAN/LAN Port, 1 Nano SIM slot(4G+ Cat6) SPEC: 802.3bt/at/af，1 Ports PoE IN(support 802.3bt), 2 Ports with 45W PoE Power SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz (HE160) Wi-Fi Speed, 300 Mbps Download LTE Speed FEATURE: Integration with Omada SDN Controller, Omada APP, Support SSL VPN, OpenVPN and Wireguard/ IPsec/ PPTP/ L2TP/ L2TP over IPSec VPN, 4G+ Cat6 LTE, 2× Detachable LTE Antennas, 160MHz Supported, OFDMA, MU-MIMO, Beamforming, Load Balance, Link Backup, Policy-based Firewall, Static Routing, Policy Routing, Multi-net DHCP, VLAN, stateful ACL, mDNS Repeater, Bridge VLAN, IP55 Weatherproof
Garantie: 60 luni


Specificatii tehnice

Antennas quantity: 2
Antenna type: External
Antenna gain level (max): 4 dBi
Product colour: White
LED indicators: Status
Mounting type: Wall mounting
Flash memory: 256 MB
Internal memory type: DDR4
Short Message Service (SMS): Yes
Certification: CE, FCC, RoHS
Frequency band: 2.4/5 GHz
Web-based management: Yes
Data network: LTE
SIM card type: NanoSIM
Mobile network generation: 4G
GSM bands supported: 850,900,1800,2100 MHz
All services ready time: 3.8 s
SSL VPN throughput: 0.0866 Gbit/s
PPTP/L2TP VPN tunnels (max): 50
SSL VPN tunnels (max): 50
Ethernet LAN data rates: 10,100,1000 Mbit/s
Forwarding rate: 1453489 Mpps
Networking standards: IEEE 802.3at, IEEE 802.3bt
Downlink/uplink speed: 300/50 Mbit/s
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): -30 - 60 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 70 °C
Control display unit: No
DC-in jack: Yes
Power consumption (max): 1.66 W
Power over Ethernet (PoE): Yes
DHCP server: Yes
MAC address filtering: Yes
Security algorithms: SSID, WPA2, WPA3
SIM card slot: Yes
Height: 38.7 mm
Depth: 100.4 mm
Width: 174 mm
Wi-FI: Yes
LAN-Port-Type: Gigabit
LAN-Ports: 4
Redundant-PSU: No
Additional-Slot: Slot-LAN/WAN
ADSL: No
WAN-Ports: 2
WAN-Port-Type: Gigabit
