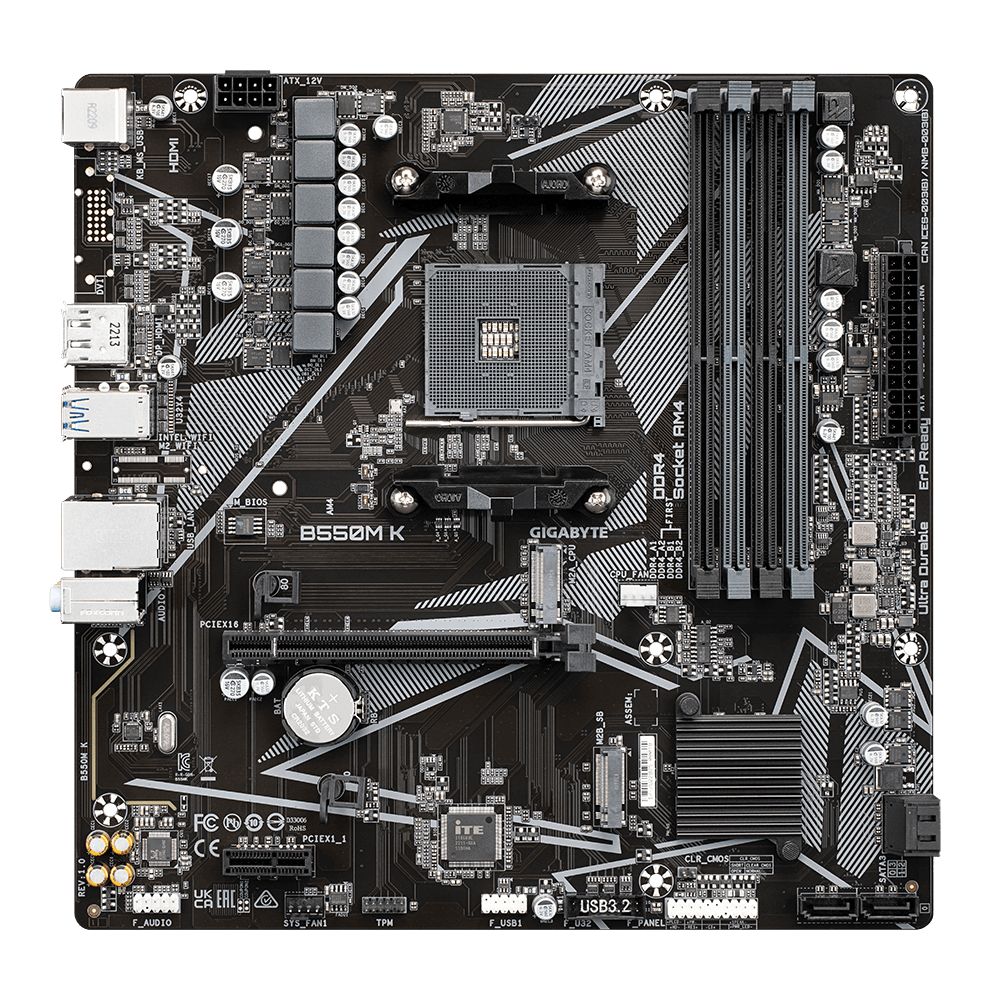

MB Gigabyte B550M K AM4 DDR4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS memory size: 128 Mbit

Product colour: Brown

Cooling type: Passive

Number of M.2 (M) slots: 2

PCI Express x1 slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 slots: 1

PCI Express x16 (Gen 4.x) slots: 1

2nd M.2 highest PCI Express generation: 3.0

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

PC health monitoring: Fan, Temperature, Voltage

Power source type: ATX

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

DirectX version: 12.0

Maximum resolution: 5120 x 2880 pixels

Parallel processing technology support: Not supported

Graphics card family: AMD

HDCP: Yes

On-board graphics card: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Number of EPS power connectors (8-pin): 1

Audio connector: Yes

Number of CPU fan connectors: 1

Power fan connector: Yes

Front panel connector: Yes

TPM connector: Yes

USB 2.0 connectors: 1

Number of chassis fan connectors: 1

Total number of SATA connectors: 4

12V power connector: Yes

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

ECC сompatibility: ECC & Non-ECC

Memory channels: Dodeca-channel

Maximum internal memory per slot: 32 GB

Supported memory clock speed (max): 4733 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

Screws included: Yes

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 837 g

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DisplayPort version: 1.4

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM4

Supported processor sockets: Socket AM4

Maximum internal memory supported by processor: 128 GB

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 2

Supported storage drive interfaces: M.2, SATA

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Depth: 24.4 mm

Height: 35 mm

Width: 244 mm

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
