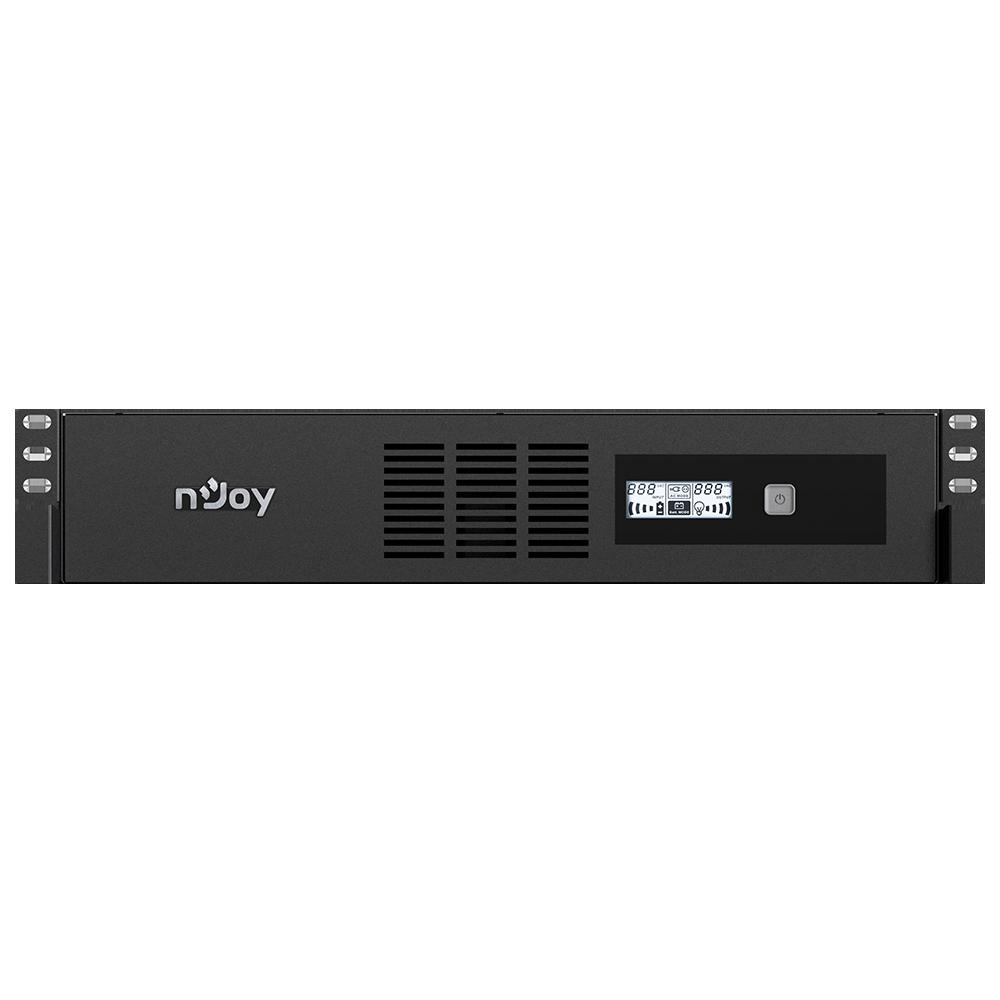

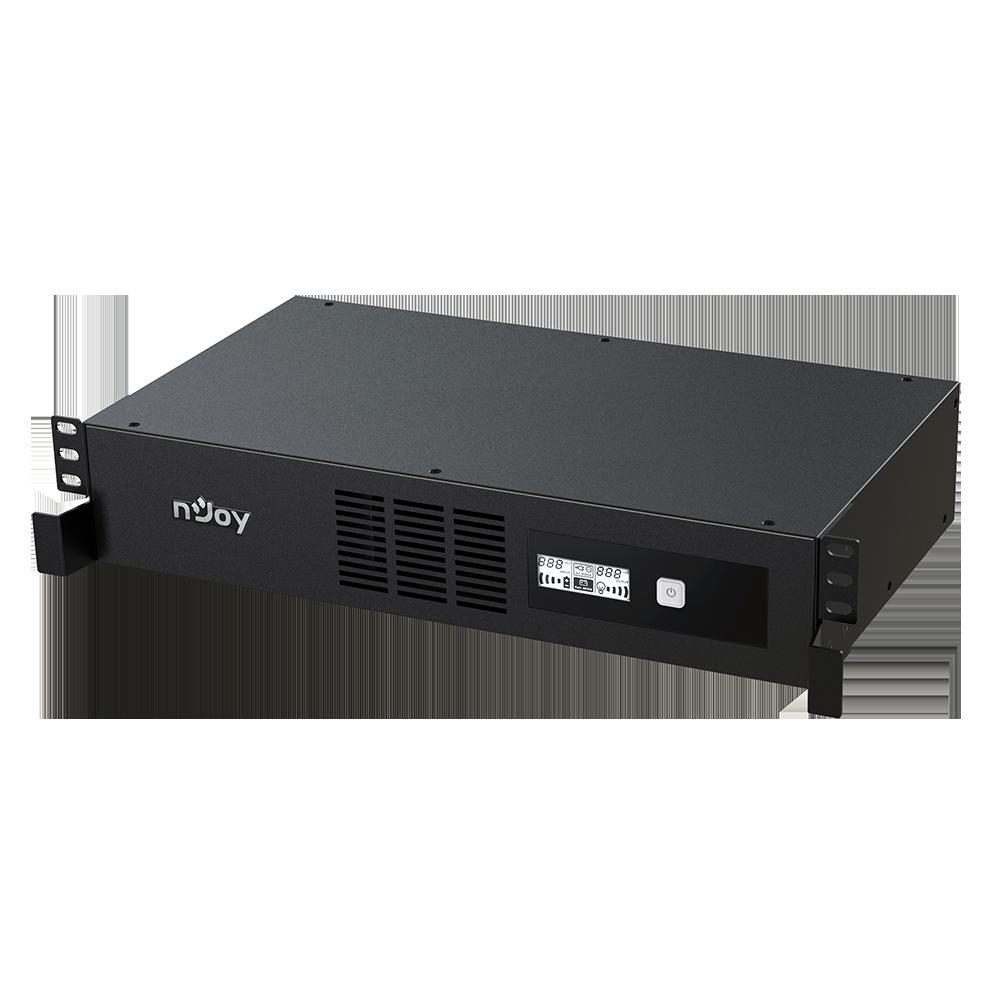

UPS NJOY Code 800

Cold start: Yes

Typical backup time at half load: 5.5 min

Replacement battery cartridge: GP09122L

Typical backup time at full load: 0.016 min

Number of batteries supported: 1

Battery recharge time: 6 h

Compliance certificates: CE, RoHS

Display type: LCD

LED indicators: Yes

Form factor: Rackmount

Rack capacity: 2U

Auto-restart: Yes

Waveform: Sine

Response time: 10 ms

Input frequency: 50 - 60 Hz

UPS topology: Line-Interactive

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Output power factor: 0.6

Output operation voltage (max): 230 V

Output voltage regulation: -10 - 10%

Power protection features: Battery discharge, Overcharge, Overload

Output power capacity: 0.8 kVA

Output power: 480 W

Input operation voltage (min): 162 V

Input operation voltage (max): 290 V

Automatic Voltage Regulation (AVR): Yes

Efficiency: 95%

Power source type: AC

Noise level: 40 dB

Products per master (outer) case: 1 pc(s)

Master (outer) case width: 330 mm

Master (outer) case net weight: 7.7 kg

Master (outer) case height: 211 mm

Master (outer) case gross weight: 9.2 kg

Master (outer) case length: 503 mm

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Batteries included: Yes

Package type: Box

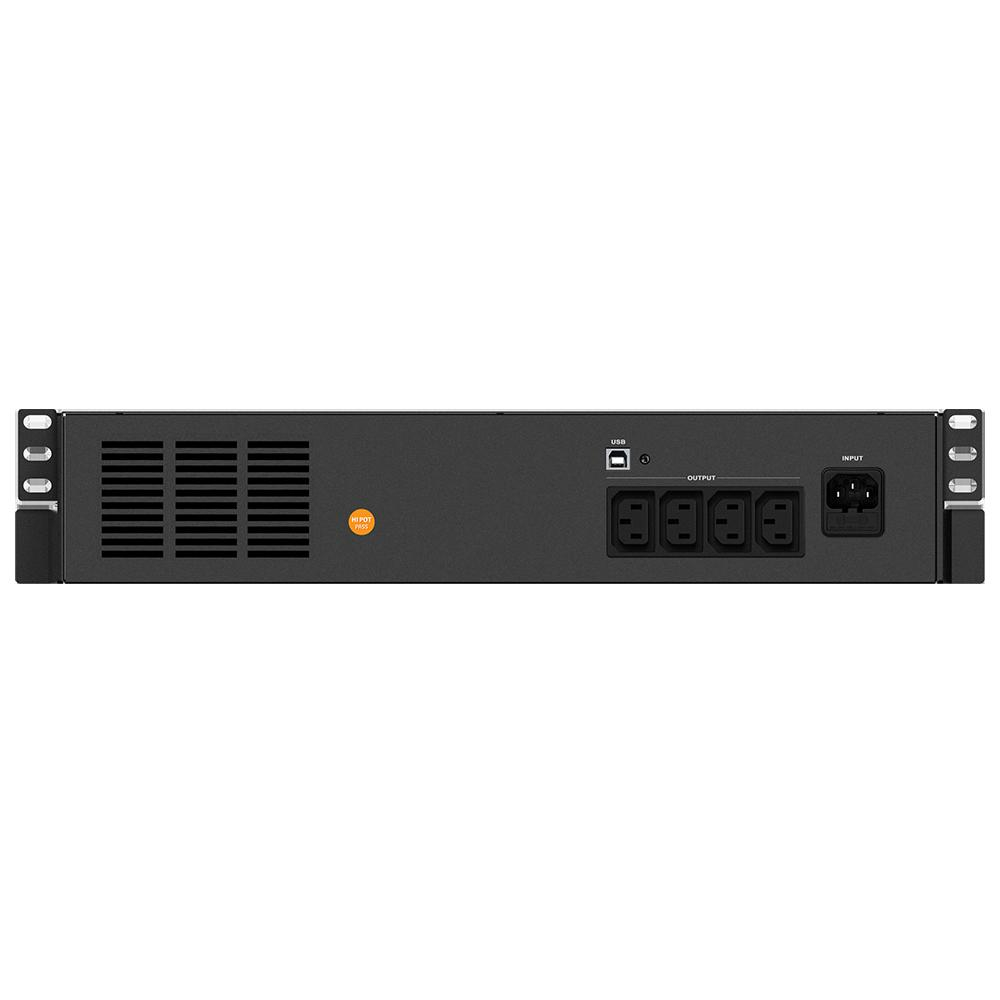

AC outlets quantity: 4 AC outlet(s)

USB 2.0 ports quantity: 1

AC outlet types: C13 coupler

Power plug: C14 coupler

USB port type: USB Type-B

Sustainability compliance: Yes

Weight: 7.7 kg

Width: 438 mm

Depth: 230 mm

Height: 86 mm

Garantia Produsului: 36 luni
