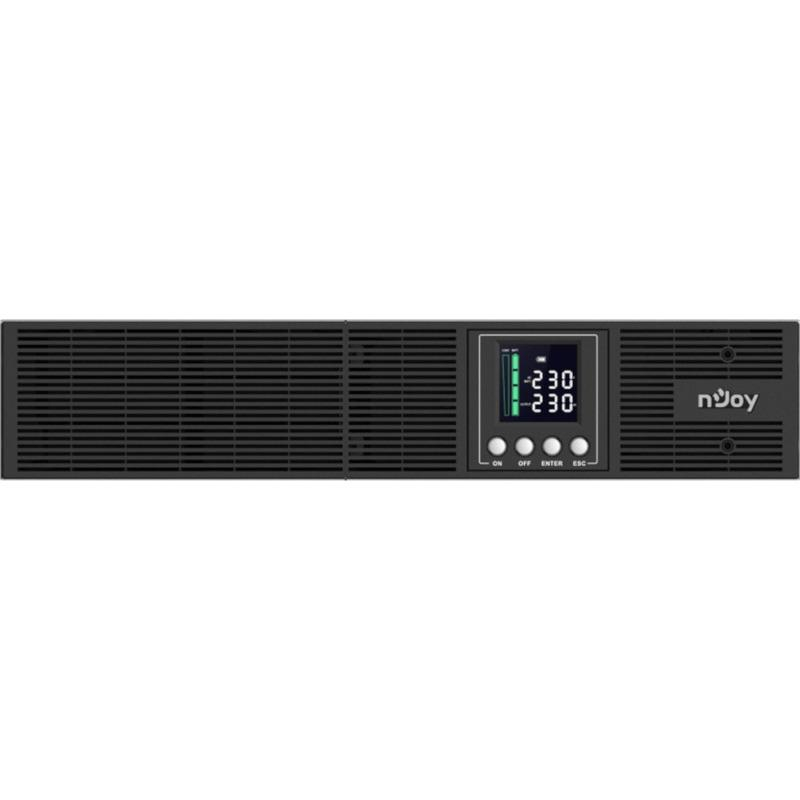

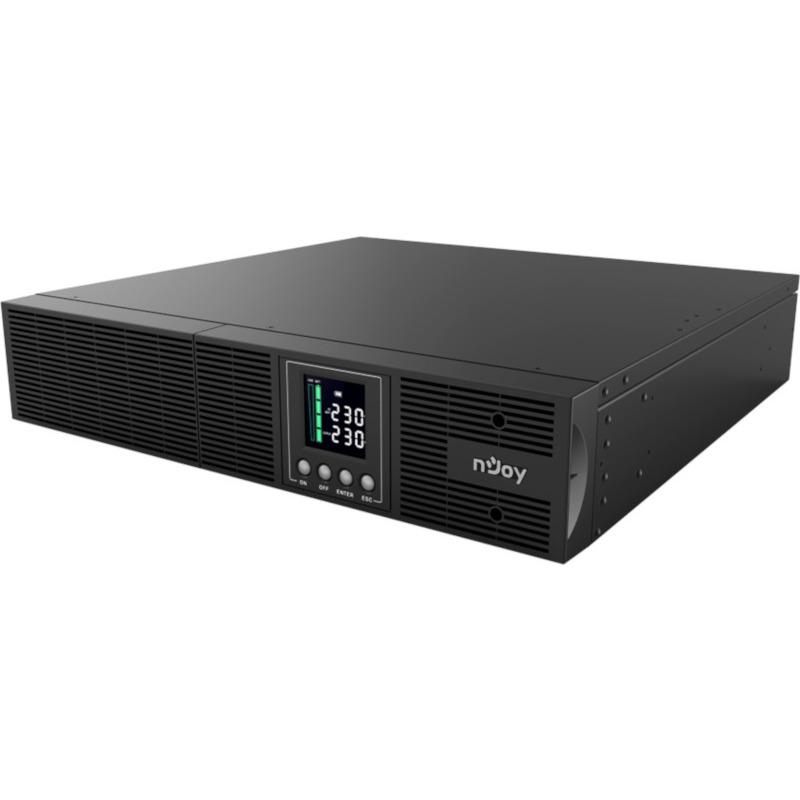

UPS NJOY Aster 3K

Cold start: Yes

Typical backup time at full load: 3.33 min

Typical backup time at half load: 11.01 min

Compliance certificates: CE, RoHS

LED indicators: Yes

Display type: LCD

Built-in fan: Yes

Form factor: Rackmount/Tower

Rack capacity: 2U

Cooling type: Active

ECO mode: Yes

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Output power capacity: 3 kVA

Auto-restart: Yes

Output power: 2700 W

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

Input operation voltage (max): 300 V

Power source type: AC

UPS topology: Double-conversion (Online)

Input frequency: 40 - 70 Hz

Crest factor: 3:1

Waveform: Pure sine

Input operation voltage (min): 80 V

Output operation voltage (min): 208 V

Output power factor: 0.9

Output voltage regulation: ±1%

Efficiency (ECO mode): 97%

Output voltage Total Harmonic Distortion (THD): 5%

Power protection features: Battery discharge, Overload

Noise level: 45 dB

Master (outer) case width: 550 mm

Master (outer) case length: 746 mm

Master (outer) case gross weight: 27.3 kg

Master (outer) case height: 231 mm

Products per master (outer) case: 1 pc(s)

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 90%

Storage temperature (T-T): -15 - 45 °C

Cables included: Input power cable, USB cable

Batteries included: Yes

Rack mount kit: Yes

Serial ports quantity: 1

Serial interface: Yes

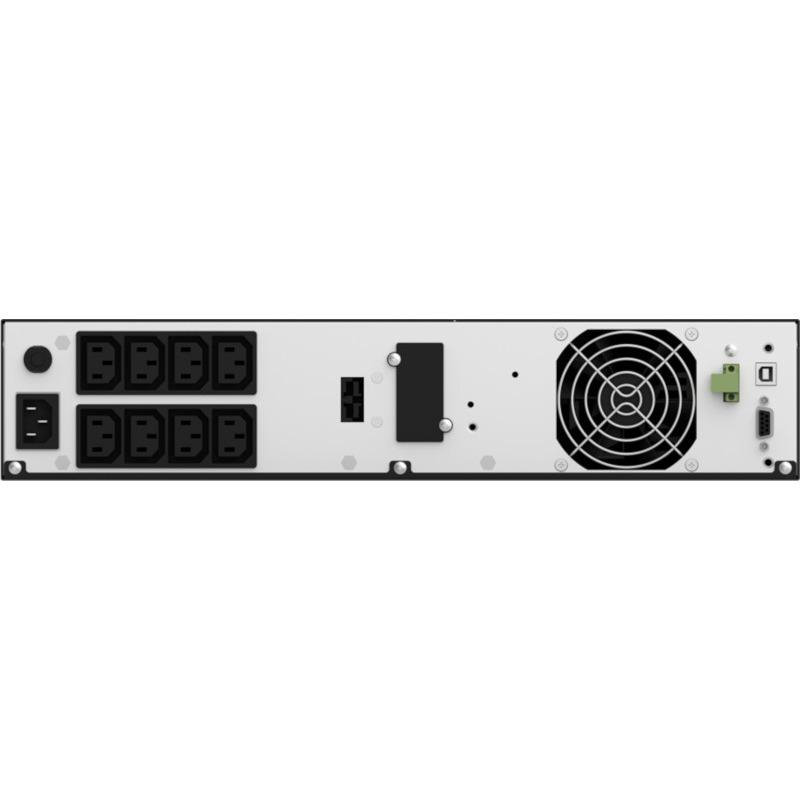

AC outlet types: C13 coupler, C19 coupler

Power plug: C20 coupler

Serial interface type: RS-232

AC outlets quantity: 9 AC outlet(s)

Weight: 2.6 kg

Depth: 438 mm

Width: 610 mm

Height: 88 mm

Garantia Produsului: 60 luni
