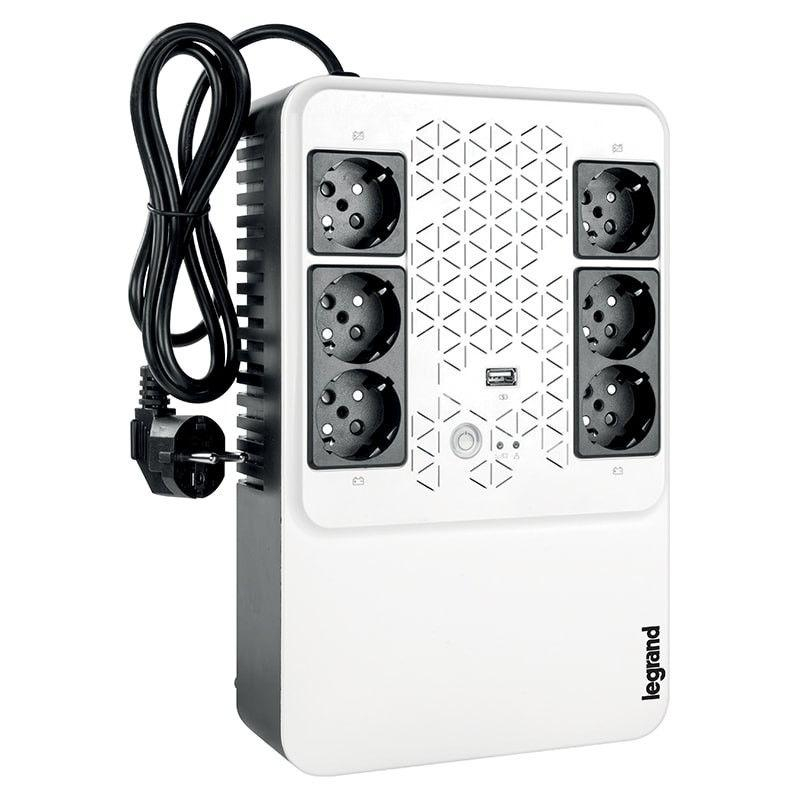

UPS LEGRAND MULTIPLUG 600VA/ 360W

UPS Legrand MULTIPLUG 600, 600VA/360W, 6x German standard sockets, USB charger, baterie 1x 12V 7.2Ah, 230V, tehnologie Line interactiv, dimensiuni 190 x 89.5 x 296mm
Garantie: 24 luni


Specificatii tehnice

Battery capacity: 7 Ah
Typical backup time at full load: 15 min
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 12 V
Battery recharge time: 6 h
Certification: EN 62040-1, EN 62040-2
Product colour: Black, White
Form factor: Compact
Power source type: AC
Noise level: 40 dB
Efficiency: 96%
Output power capacity: 0.6 kVA
Output power: 360 W
Output voltage regulation: 10%
Input frequency: 45/65 Hz
Output frequency regulation: 1 Hz
Power protection features: Overcharge, Overdischarge, Overload, Short circuit
Potential-free output: No
Auto shut-off: No
Surge protection: Yes
Audible alarm(s): Yes
UPS topology: Line-Interactive
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Output operation voltage (min): 207 V
Output operation voltage (max): 253 V
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Output power factor: 0.6
Waveform: Sine
Automatic Voltage Regulation (AVR): Yes
Products per master (outer) case: 1 pc(s)
Pallet net width: 120 cm
Pallet net length: 100 cm
Pallet net height: 104 cm
Pallet net weight: 318.6 kg
Master (outer) case gross weight: 5.9 kg
Master (outer) case width: 158 mm
Master (outer) case length: 390 mm
Master (outer) case height: 290 mm
Products per pallet: 54 pc(s)
Harmonized System (HS) code: 85078000
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 40 °C
Package width: 190 mm
Package depth: 5.03 mm
Package height: 89.5 mm
Package weight: 5.61 kg
Power plug: Type F
USB port type: USB Type-A
USB 2.0 ports quantity: 1
AC outlet types: Type F
Number of type F outputs: 6
AC outlets quantity: 6 AC outlet(s)
Depth: 296 mm
Weight: 5 kg
Width: 190 mm
Height: 89.5 mm
