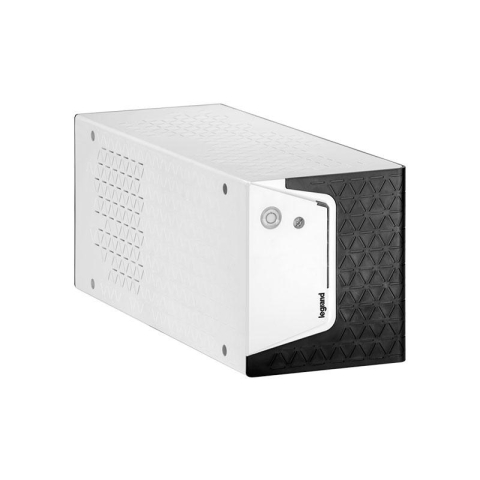

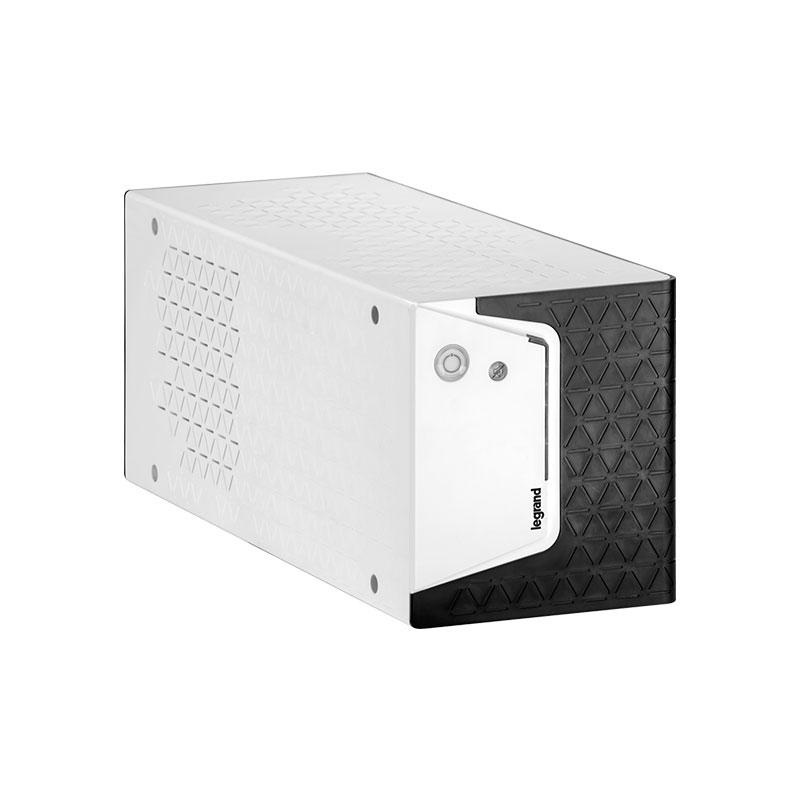

UPS LEGRAND KEOR SP 800VA/480W

UPS Legrand KEOR SP 800, 800VA/480W, 1x IEC + 1x German standard sockets, USB HID tip B, stabilizator electronic (AVR), baterie 1 x 12V/ 9 Ah, 230V, forma sinusoidala simulata in forma de unda, tehnologie Line interactive VI, interfata RGB LED bar (verde/ portocaliu/ rosu), dimensiuni 120 x 330 x 138mm
Garantie: 24 luni


Specificatii tehnice

Battery capacity: 9 Ah
Number of batteries supported: 1
Battery technology: Sealed Lead Acid (VRLA)
Compliance certificates: CE
Certification: EN 62040-1, EN 62040-2
Product colour: Black, White
Form factor: Mini Tower
Waveform: Sine
Output power capacity: 0.8 kVA
Output power: 480 W
Surge protection: Yes
Audible alarm(s): Yes
UPS topology: Line-Interactive
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Output operation voltage (min): 207 V
Output operation voltage (max): 253 V
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Output power factor: 0.6
Output voltage regulation: 10%
Input frequency: 45/65 Hz
Output frequency regulation: 1 Hz
Efficiency: 97%
Power protection features: Overcharge, Overdischarge, Overload, Short circuit
Potential-free output: No
Auto shut-off: No
Noise level: 40 dB
Power source type: AC
Automatic Voltage Regulation (AVR): Yes
Products per master (outer) case: 1 pc(s)
Pallet net width: 120 cm
Pallet net height: 135 cm
Master (outer) case width: 192 mm
Master (outer) case length: 392 mm
Pallet net weight: 389.6 kg
Master (outer) case gross weight: 6.49 kg
Pallet net length: 100 cm
Master (outer) case height: 218 mm
Products per pallet: 60 pc(s)
Harmonized System (HS) code: 85078000
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): 0 - 40 °C
Package width: 120 mm
Package height: 138 mm
Package weight: 6.17 kg
Package depth: 5.46 mm
USB 2.0 ports quantity: 2
Number of type F outputs: 1
AC outlets quantity: 2 AC outlet(s)
Serial interface: No
USB port type: USB Type-A/USB Type-B
AC outlet types: C13 coupler
Power plug: C14 coupler
Height: 13.8 mm
Depth: 330 mm
Weight: 5.5 kg
Width: 120 mm
