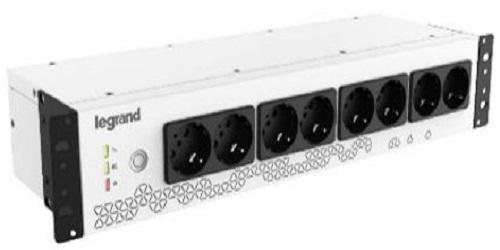

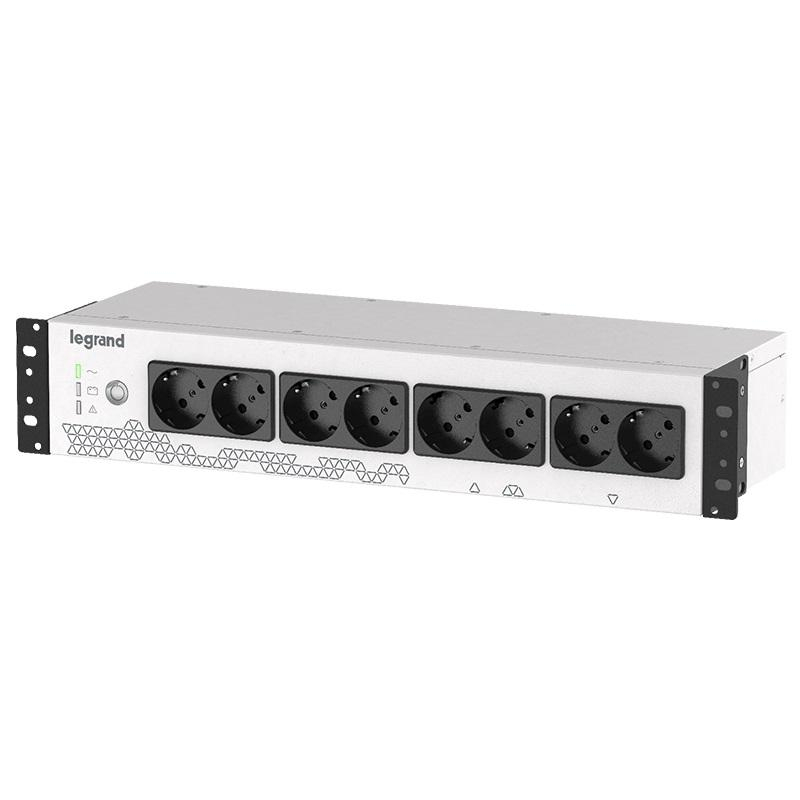

UPS LEGRAND KEOR PDU 800VA/480W

Battery capacity: 9 Ah

Typical backup time at half load: 10 min

Battery technology: Sealed Lead Acid (VRLA)

Number of batteries supported: 1

Compliance certificates: CE

Certification: EN 62040-1, EN 62040-2

Schuko: 8

Product colour: Black, White

Form factor: Rackmount

Rack capacity: 2U

Output voltage regulation: 10%

Input frequency: 45/65 Hz

Output frequency regulation: 1 Hz

Potential-free output: No

Auto shut-off: No

Waveform: Sine

Output operation voltage (min): 207 V

Output operation voltage (max): 253 V

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Efficiency: 98%

Output power factor: 0.6

Input operation voltage (min): 160 V

Output power capacity: 0.8 kVA

Output power: 480 W

Input operation voltage (max): 290 V

Maximum current: 10 A

Power protection features: Overdischarge, Overload, Short circuit

UPS topology: Standby (Offline)

Power source type: AC

Noise level: 40 dB

Tip: Offline

Incarcare: 480 W

Numar baterii: 1

Capacitate baterie: 12V/9Ah

Putere: 800 VA

Dimensiuni: 440 x 150 x 88 mm

Montare in rack: Da

Greutate: 5 kg

Products per master (outer) case: 1 pc(s)

Pallet net width: 120 cm

Pallet net length: 100 cm

Master (outer) case width: 159 mm

Master (outer) case length: 528 mm

Master (outer) case height: 255 mm

Pallet net height: 102 cm

Pallet net weight: 306.6 kg

Master (outer) case gross weight: 6.39 kg

Products per pallet: 48 pc(s)

Harmonized System (HS) code: 85078000

Atentionari Scurt-circuit: Da

Atentionari Supraincarcare: Da

Operating relative humidity (H-H): 0 - 95%

Operating temperature (T-T): 0 - 40 °C

Package width: 88 mm

Package height: 440 mm

Package depth: 5.81 mm

Package weight: 6.07 kg

AC outlets quantity: 16 AC outlet(s)

Number of type F outputs: 8

AC outlet types: C13 coupler

Power plug: C14 coupler

USB port type: USB Type-B

Sustainability compliance: Yes

Width: 88 mm

Depth: 150 mm

Height: 440 mm

Weight: 5.5 kg

Garantia Produsului: 24 luni
