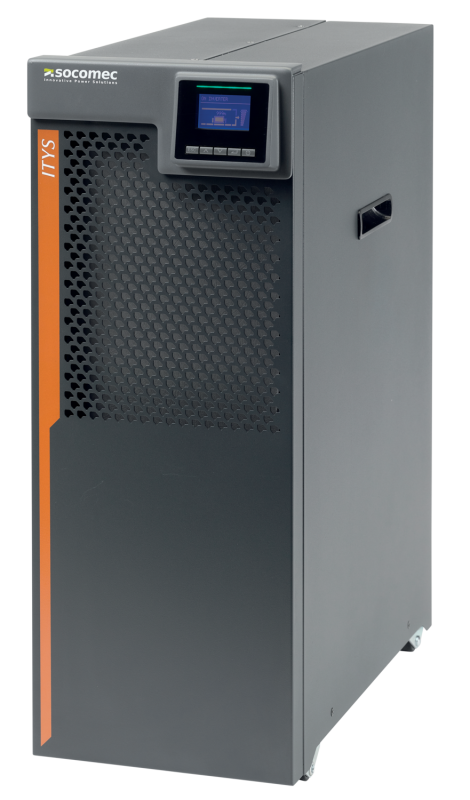

SOCOMEC ITYS 10000VA VFI UPS 1/1 PF=1 WI

Battery technology: Sealed Lead Acid (VRLA)

Battery voltage: 192 V

Charging current: 12 A

Typical backup time at full load: 4.3 min

Certification: IEC/EN 62040-2, AS 62040.2nIEC/EN 62040-3nCE, RCM (E2376)

LED indicators: Yes

Display type: LCD

Control type: Buttons

International Protection (IP) code: IP20

Product colour: Black, Grey, Orange

Cooling type: Active

Built-in fan: Yes

Form factor: Tower

Input operation voltage (max): 276 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

UPS topology: Double-conversion (Online)

Crest factor: 3:1

Input power factor: 0.99

Input operation voltage (min): 160 V

Input frequency: 40/70 Hz

Output power factor: 1

Power protection features: Short circuit

ECO mode: Yes

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Efficiency (ECO mode): 98%

Waveform: Sine

Noise level: 55 dB

Output power capacity: 10 kVA

Output power: 10000 W

Efficiency: 95%

Country of origin: China

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 0 - 95%

Operating altitude: 0 - 1000 m

Manual: Yes

Ethernet LAN (RJ-45) ports: 1

USB port type: USB Type-B

RS-232 ports: 1

Safety: IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2

Width: 225 mm

Depth: 469 mm

Weight: 61 kg

Height: 596 mm

Garantia Produsului: 24 luni
