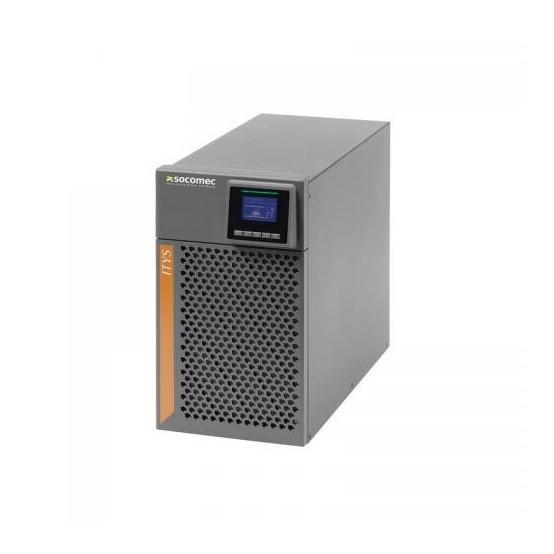

ITYS 3000VA VFI UPS 1/1 PF=1 WITH BATTER

ITYS 3000VA VFI UPS 1/1 PF=1 WITH BATTERY INTEGRATED
Garantie: 24 luni


Specificatii tehnice

Charging current: 8 A
Battery capacity: 9 Ah
Typical backup time at full load: 6 min
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 7.2 V
Battery life (max): 3 year(s)
Certification: IEC/EN 62040-2, AS 62040.2nIEC/EN 62040-3nCE, RCM (E2376)
Product colour: Black, Grey, Orange
International Protection (IP) code: IP20
Display type: LCD
Control type: Buttons
Cooling type: Active
Form factor: Mini Tower
Built-in fan: Yes
ECO mode: Yes
Output frequency: 50/60 Hz
Number of input phases: 1
Number of output phases: 1
Efficiency (ECO mode): 98%
Output power capacity: 3 kVA
UPS topology: Double-conversion (Online)
Input frequency: 40 - 70 Hz
Crest factor: 3:1
Output operation voltage (min): 200 V
Efficiency: 93%
Input power factor: 0.99
Input operation voltage (min): 160 V
Output power factor: 1
Power protection features: Short circuit
Noise level: 50 dB
Output power: 3000 W
Waveform: Sine
Input operation voltage (max): 300 V
Output operation voltage (max): 240 V
Emergency Power Off (EPO): Yes
Country of origin: China
Operating altitude: 0 - 1000 m
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 0 - 95%
Power plug: C20 coupler
AC outlets quantity: 8 AC outlet(s)
AC outlet types: C13 coupler
USB port type: USB Type-B
RS-232 ports: 1
Safety: IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Weight: 2.6 kg
Depth: 428 mm
Width: 192 mm
Height: 322 mm
