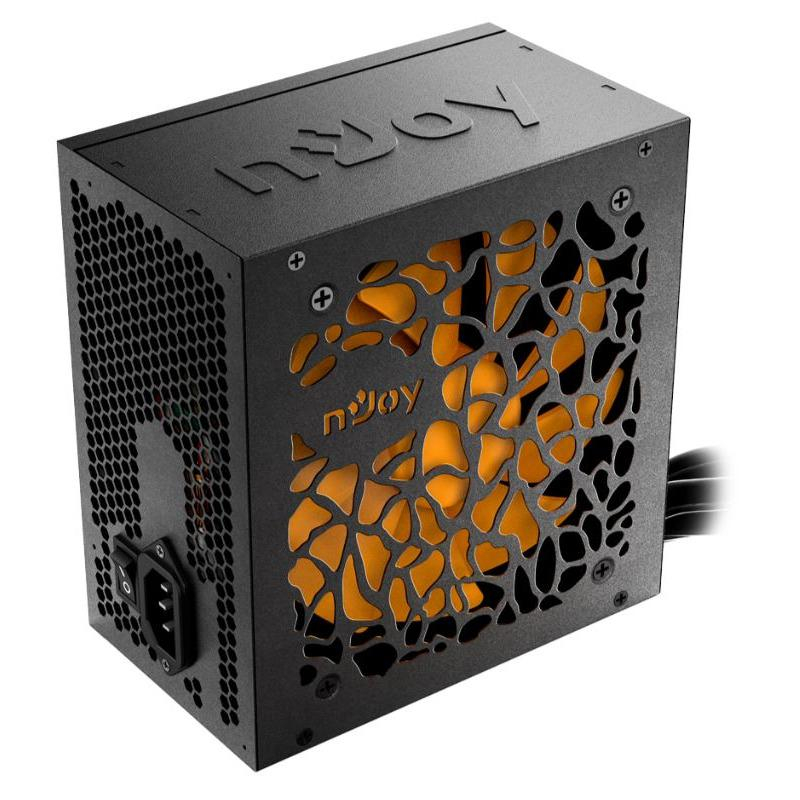

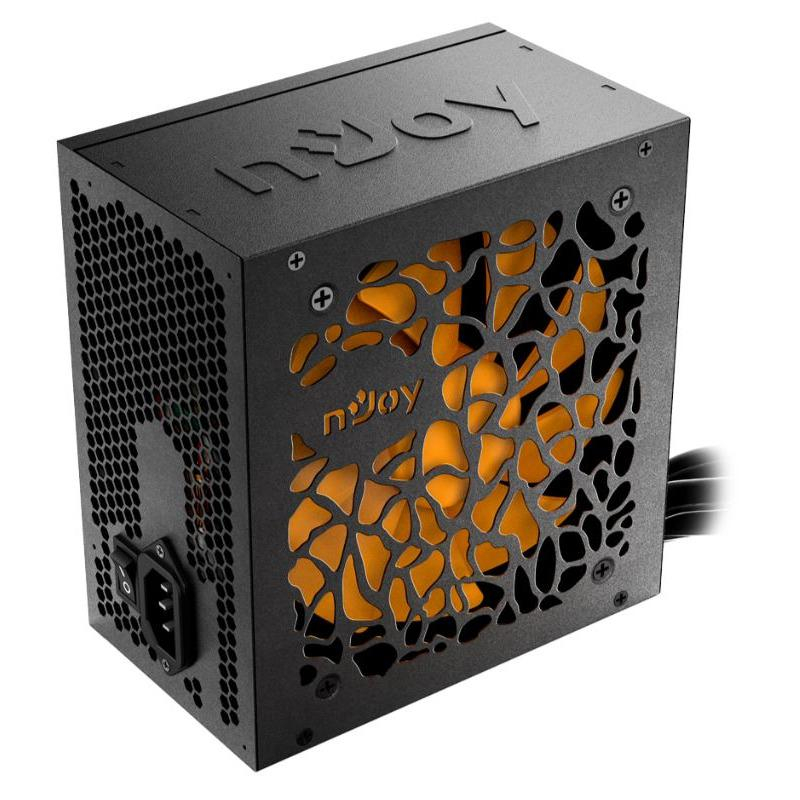

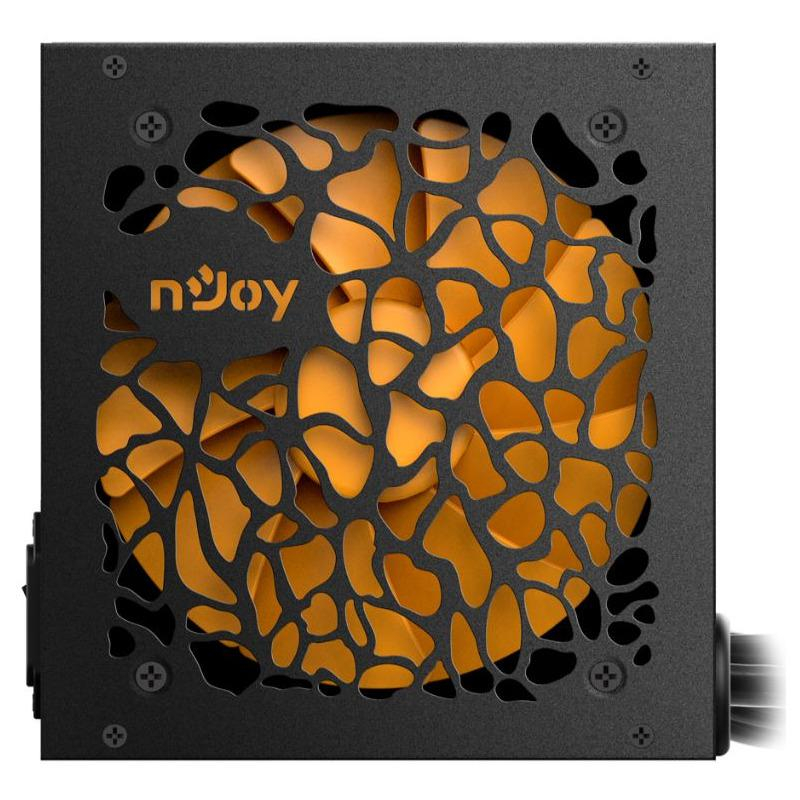

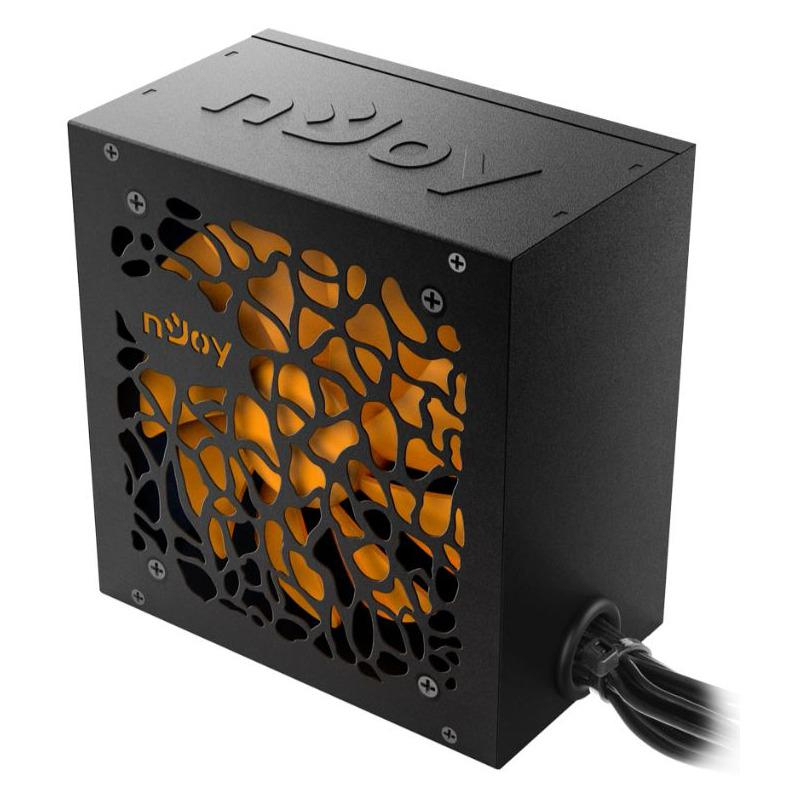

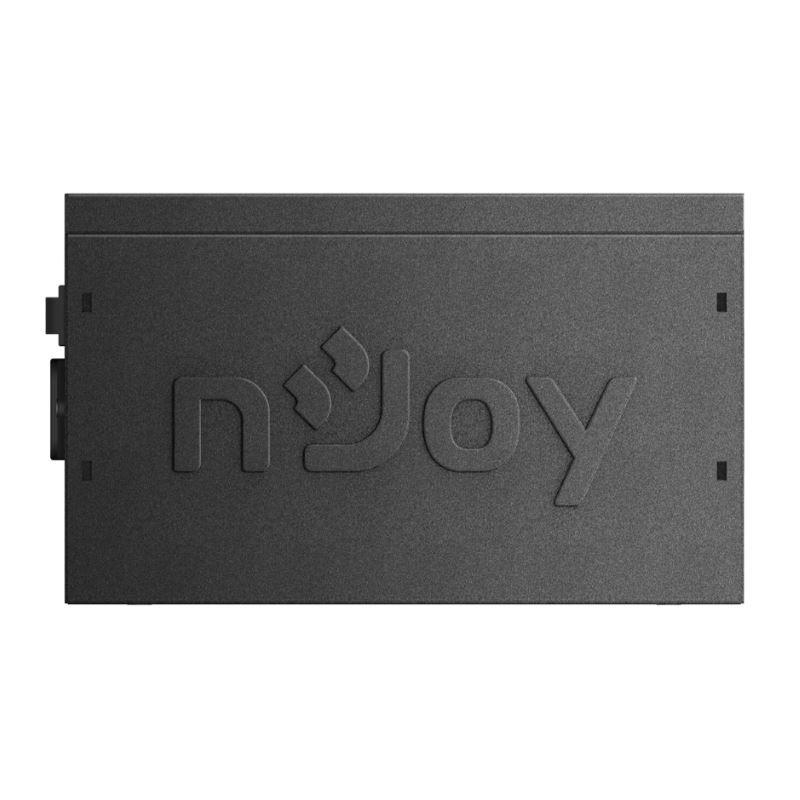

SURSA NJOY TITAN+ 550W

Compliance certificates: CE, RoHS

Product colour: Black, Orange

On/off switch: Yes

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Master (outer) case height: 265 mm

Master (outer) case width: 375 mm

Master (outer) case length: 525 mm

Products per master (outer) case: 10 pc(s)

Master (outer) case net weight: 16.5 kg

Master (outer) case gross weight: 17.4 kg

Warranty period: 3 year(s)

Power plug type: Type F

Parallel processing technology support: CrossFireX, SLI

Cables included: AC

Package type: Box

Package depth: 100 mm

Package height: 180 mm

Package weight: 1.65 kg

Package width: 240 mm

Continuous output rated temperature: 105 °C

ATX version: 2.53

Supported motherboard form factors: ATX

Bearing technology: Hydraulic

80 PLUS certification: 80 PLUS Bronze

Purpose: PC

Power protection features: Over current, Over power, Over voltage, Short circuit

Power supply unit (PSU) form factor: ATX

Number of SATA power connectors: 6

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power connectors (4-pin): 4

Motherboard power cable length: 50 cm

PCI Express power connectors (6+2 pin): 2

SATA power cable length: 400,530,790,920,660 mm

Peripheral (Molex) power cable length: 600 mm

PCI Express power cable length: 65 cm

Number of EPS connectors: 1

Combined power (+12V): 540 W

Power Factor Correction (PFC) type: Active

Max output current (+12V): 45 A

Total power: 550 W

Number of +12V rail(s): 1

Combined power (+3.3V): 90 W

Combined power (+5V): 90 W

Efficiency: 88%

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 12.5 W

Max output current (+3.3V): 15 A

Max output current (+5V): 15 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 2.5 A

AC input voltage: 230 V

AC input frequency: 47-63 Hz

Weight: 1.45 kg

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Modular: No

Garantia Produsului: 24 luni
