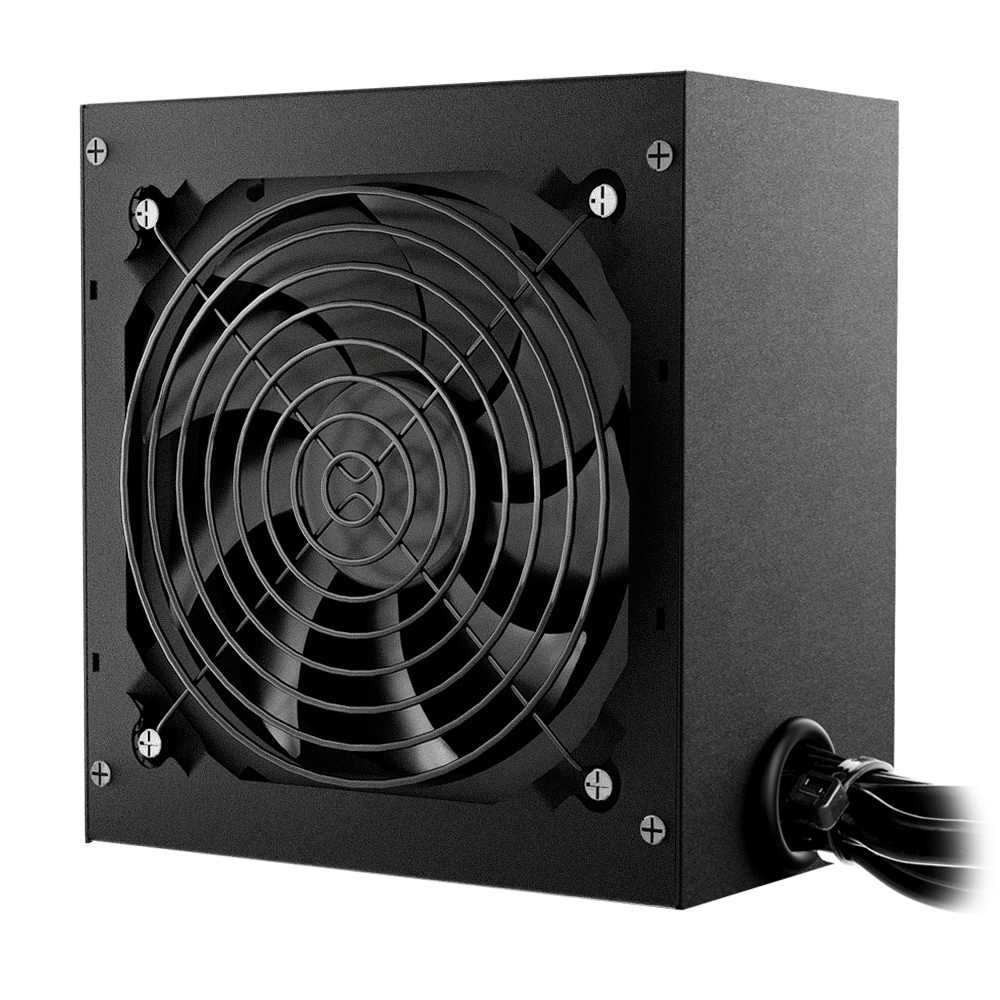

SURSA NJOY Synergy 550 bulk ATX

Certification: CE, RoHS

Product colour: Black

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

Master (outer) case gross weight: 16.7 kg

Master (outer) case height: 195 mm

Products per master (outer) case: 10 pc(s)

Master (outer) case net weight: 15.8 kg

Master (outer) case width: 533 mm

Master (outer) case length: 538 mm

ATX version: 2.31

80 PLUS certification: 80 PLUS White

Bearing technology: Hydraulic

Purpose: PC

Power supply unit (PSU) form factor: ATX

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

CPU power cable length: 60 cm

Cabling type: Non-Modular

Number of SATA power connectors: 5

PCI Express power connectors (6+2 pin): 2

Peripheral (Molex) power connectors (4-pin): 3

SATA power cable length: 150,450 mm

Motherboard power cable length: 50 cm

Number of EPS connectors: 2

Peripheral (Molex) power cable length: 150,450 mm

AC input voltage: 230 V

AC input frequency: 50 Hz

Max output current (-12V): 38 A

Efficiency: 82%

Combined power (+12V): 6 W

Max output current (+3.3V): 21 A

Max output current (+12V): 0.5 A

Total power: 550 W

Power protection features: Over power, Over voltage, Short circuit, Under voltage

Combined power (-12V): 6 W

Max output current (+5V): 16 A

Combined power (+3.3V): 105 W

Combined power (+5V): 105 W

Combined power (+5Vsb): 12.5 W

Max output current (+5Vsb): 2.5 A

Power Factor Correction (PFC) type: Active

Depth: 150 mm

Height: 86 mm

Weight: 1.5 kg

Width: 145 mm

Modular: No

Garantia Produsului: 24 luni
