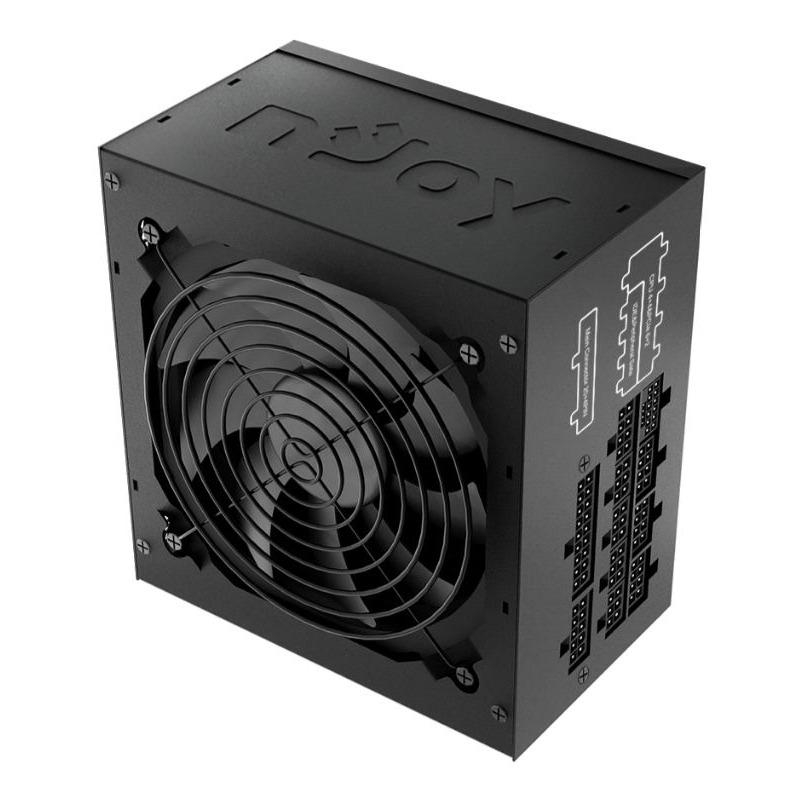

SURSA NJOY ALPHA+ 1000W

Certification: CE, RoHS

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

Master (outer) case net weight: 22.1 kg

Master (outer) case gross weight: 23.6 kg

Master (outer) case width: 590 mm

Master (outer) case length: 450 mm

Master (outer) case height: 275 mm

Products per master (outer) case: 8 pc(s)

Cables included: AC, PATA, PCIe, SATA

Package depth: 280 mm

Package height: 12.5 mm

Package width: 215 mm

Package weight: 2.76 kg

Bearing technology: Hydraulic

80 PLUS certification: 80 PLUS Gold

ATX version: 2.52

Power supply unit (PSU) form factor: ATX

Purpose: PC

Peripheral (Molex) power connectors (4-pin): 3

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

Motherboard power cable length: 60 cm

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 6

SATA power cable length: 150,450 mm

Peripheral (Molex) power cable length: 150,450 mm

PCI Express power connectors (12-pin): 1

PCI Express power cable length: 60 cm

CPU power cable length: 55 cm

Number of PATA power connectors: 9

Efficiency: 89%

Total power: 1000 W

Combined power (+12V): 999.6 W

Max output current (+12V): 83.3 A

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Power Factor Correction (PFC) type: Active

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Max output current (+5Vsb): 3 A

Combined power (+5Vsb): 15 W

Max output current (-12V): 0.3 A

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

AC input voltage: 100 - 240 V

Depth: 160 mm

Weight: 2.75 kg

Width: 150 mm

Height: 86 mm

Garantia Produsului: 24 luni
