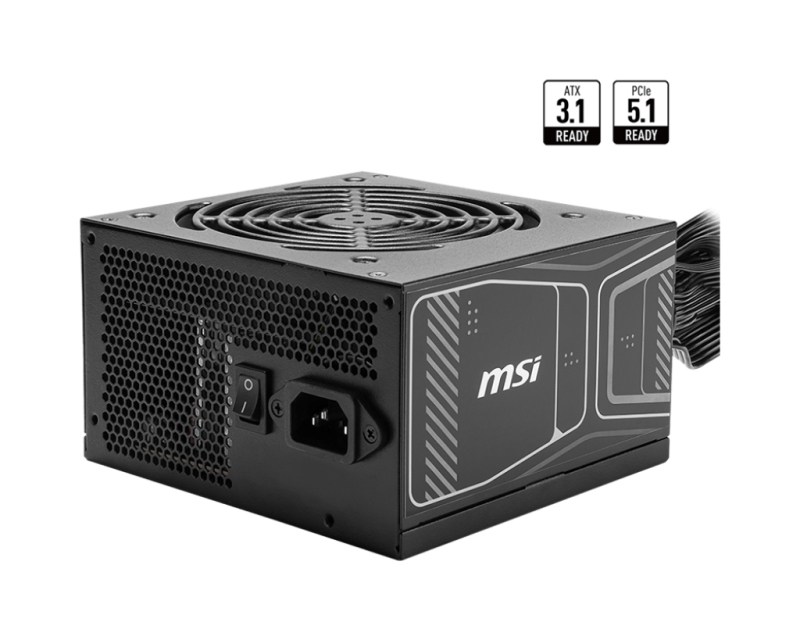

SURSA MSI MAG A750GN PCIE5 80+ Gold

Sursa MSI MAG A750GN PCIE5 750W 80 PLUS GOLD, Active PFC, non modulara, Protectii OCP / OVP / OPP / OTP / SCP
Garantie: 120 luni


Specificatii tehnice

Illumination: No
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Black
On/off switch: Yes
Package type: Box
80 PLUS certification: 80 PLUS Gold
Purpose: PC
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: Sleeve
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
EPS power connector (4+4 pin): Yes
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
SATA power cable length: 150,450 mm
PCI Express power connectors (6-pin): 0
PCI Express power connectors (8-pin): 0
PCI Express power connectors (12+4 pin): 0
PCI Express power connectors (12-pin): 0
ATX power connector (20+4 pin): No
EPS power connector (8-pin): No
PCI Express power connectors (6+2 pin): 2
ATX Power connector (24-pin): No
Peripheral (Molex) power cable length: 500 mm
Number of SATA power connectors: 4
Number of +12V rail(s): 1
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Max output current (+12V): 0.3 A
Efficiency: 90%
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Total power: 750 W
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Power Factor Correction (PFC) type: Active
Combined power (+5V): 110 W
Combined power (+12V): 3.6 W
Maximum input current (@110V): 47 A
Maximum input current (@220V): 63 A
AC input voltage: 100 - 240 V
AC input frequency: 47-63 Hz
Depth: 140 mm
Width: 150 mm
Height: 86 mm
PSU-Power: 501W-750W
Modular: No
