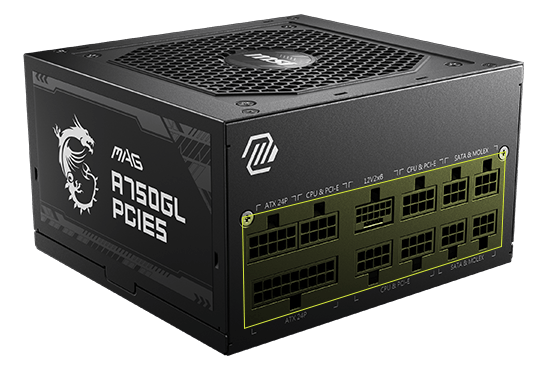

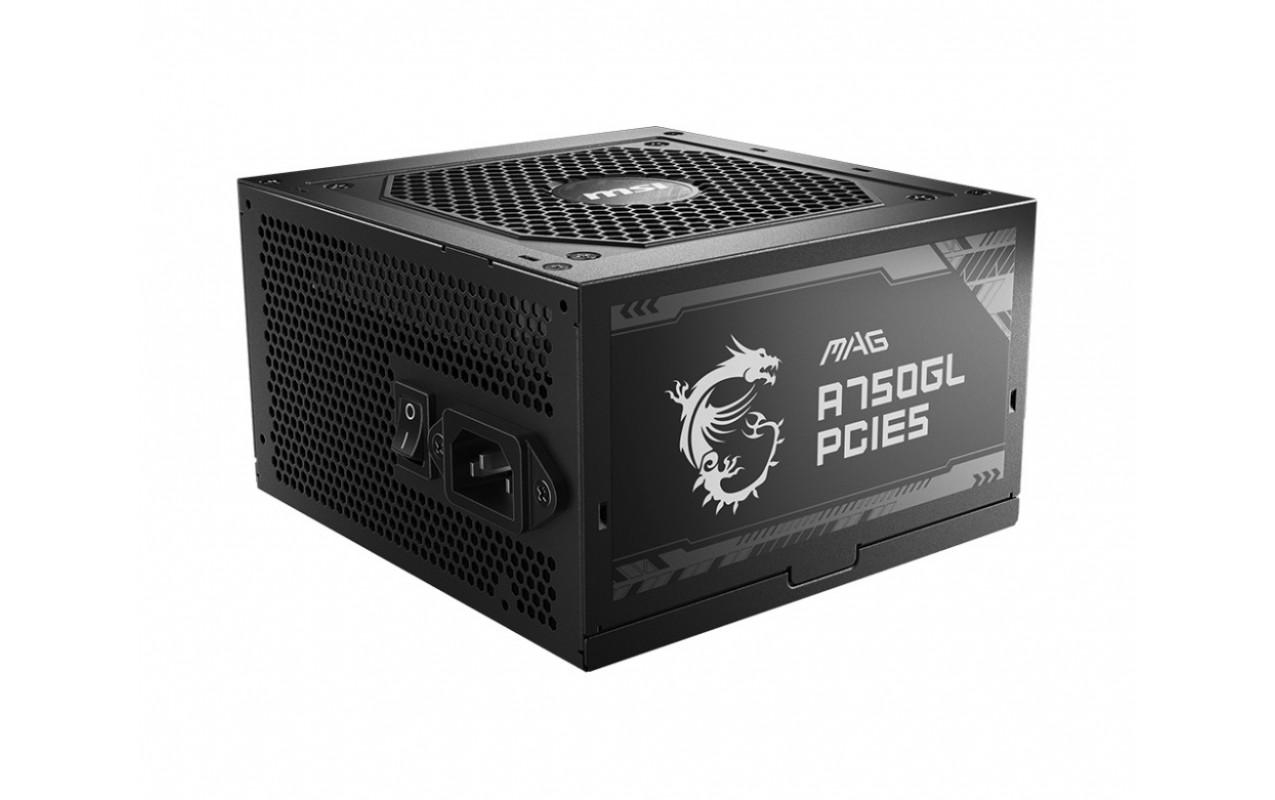

SURSA MSI MAG A750GL PCIE5 80+ Gold

Sursa MSI MAG A750GL PCIE5 750W, Active PFC, fan size 120mm, full modular 80PLUS GOLD
Garantie: 120 luni


Specificatii tehnice

Illumination: No
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Harmonized System (HS) code: 84733020
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Number of SATA power connectors: 8
Cabling type: Fully-Modular
Motherboard power connector: 20+4 pin ATX
EPS power connector (4+4 pin): Yes
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 3
EPS power connector (8-pin): No
ATX Power connector (24-pin): No
PCI Express power connectors (6-pin): 0
PCI Express power connectors (8-pin): 0
PCI Express power connectors (12+4 pin): 0
PCI Express power connectors (12-pin): 0
ATX power connector (20+4 pin): No
Motherboard power cable length: 45 cm
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Combined power (+12V): 744 W
Max output current (+12V): 62 A
Maximum input current (@110V): 8 A
Maximum input current (@220V): 4 A
Combined power (+5V): 110 W
Efficiency: 90%
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power Factor Correction (PFC) type: Active
Total power: 750 W
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Combined power (+3.3V): 110 W
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Depth: 140 mm
Width: 150 mm
Height: 86 mm
