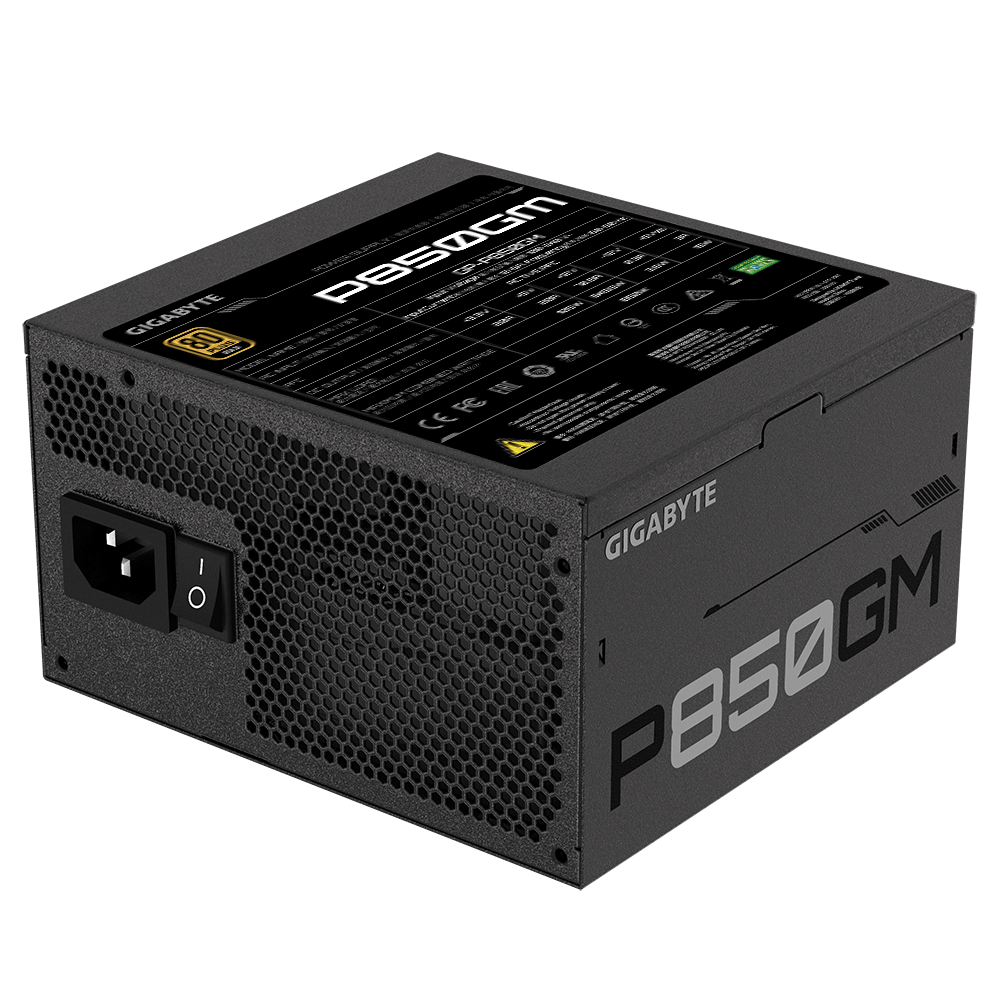

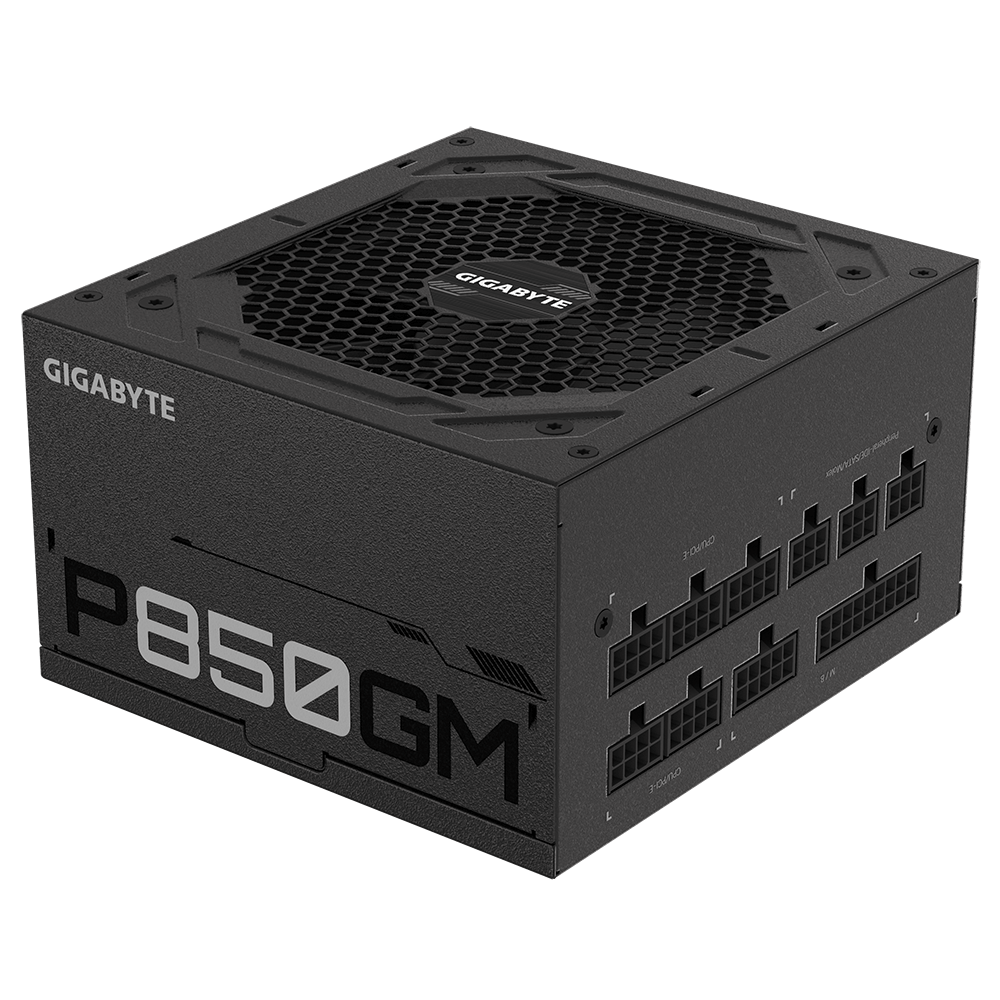

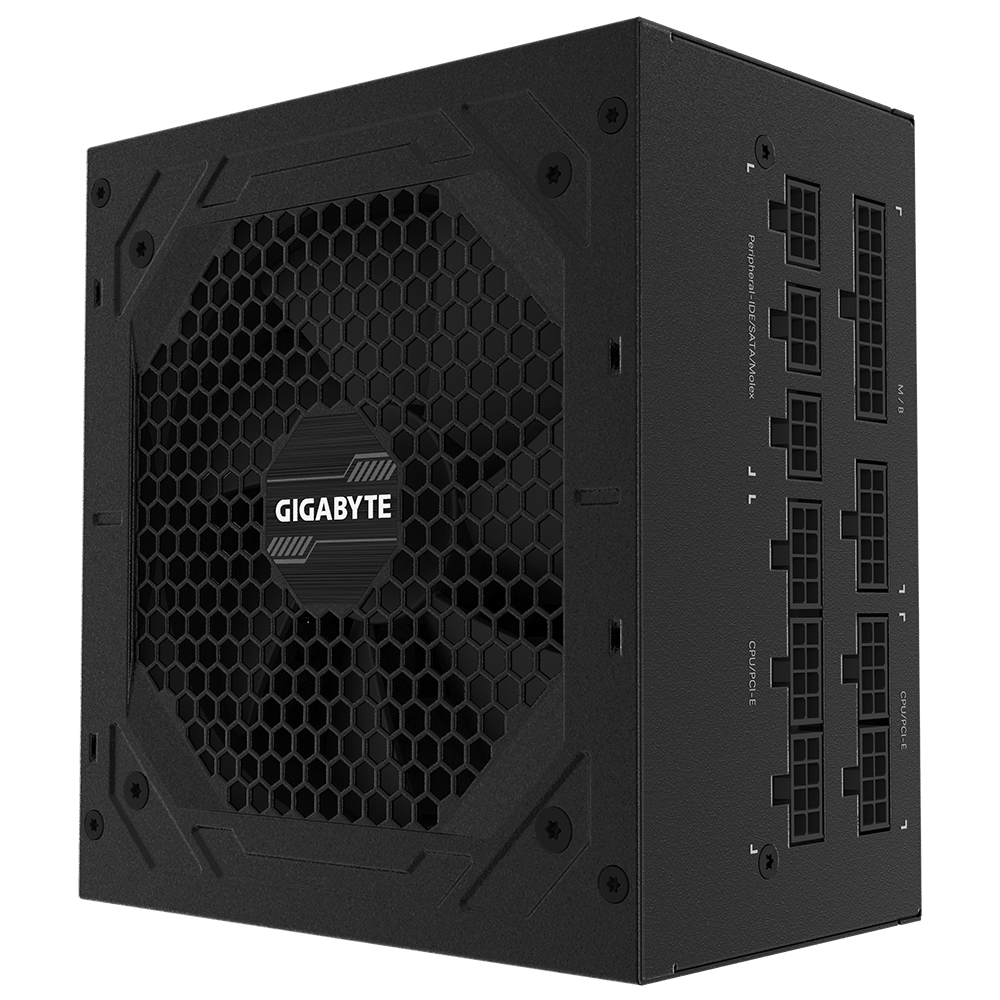

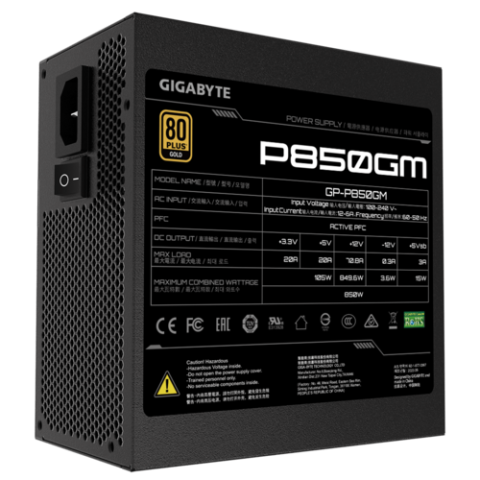

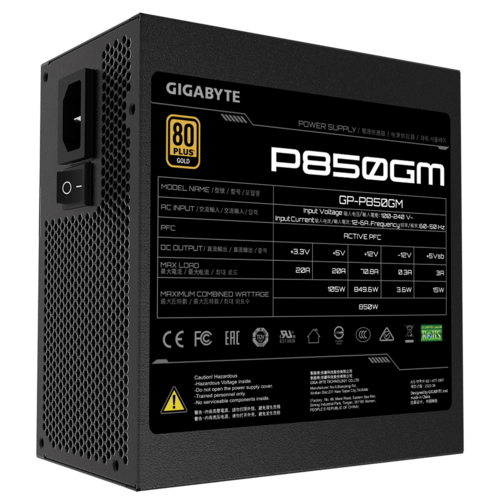

SURSA GB P850GM 850W 80 PLUS GOLD

SURSA GB P850GM 850W 80 PLUS GOLD, Fully Modular Design, 80 PLUS Gold certified: above 90% efficiency at 50% load, ATX Form, Active PFC, ATX/MB 20+4 Pin x 1 : 650mm, CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1, PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2, SATA x6 + 4 Pin Peripheral x2 :, 550mm+100mm+100mm+100mm*1, 450mm+100mm+100mm+100mm *1, 4 Pin Peripheral x 3 +, 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1, 4 Pin Floppy x 1 : 100mm.
Garantie: 60 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
Product colour: Black
On/off switch: Yes
Harmonized System (HS) code: 84733020
Package type: Box
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
ATX version: 2.31
Purpose: PC
Mean time between failures (MTBF): 100000 h
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
PCI Express power connectors (6+2 pin): 4
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 8
Motherboard power cable length: 61 cm
Cabling type: Fully-Modular
PCI Express power cable length: 75 cm
Floppy disk drive connector: Yes
Floppy disk drive cable length: 89 cm
SATA power cable length: 600,750,900 mm
Floppy drive power connector: 2
Maximum input current (@110V): 12 A
Maximum input current (@220V): 6 A
Efficiency: 90%
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Power factor: 0.9
Hold time: 16 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Total power: 850 W
Combined power (+12V): 846 W
Max output current (+12V): 70.5 A
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Depth: 140 mm
Height: 86 mm
Width: 150 mm
Modular: Yes
