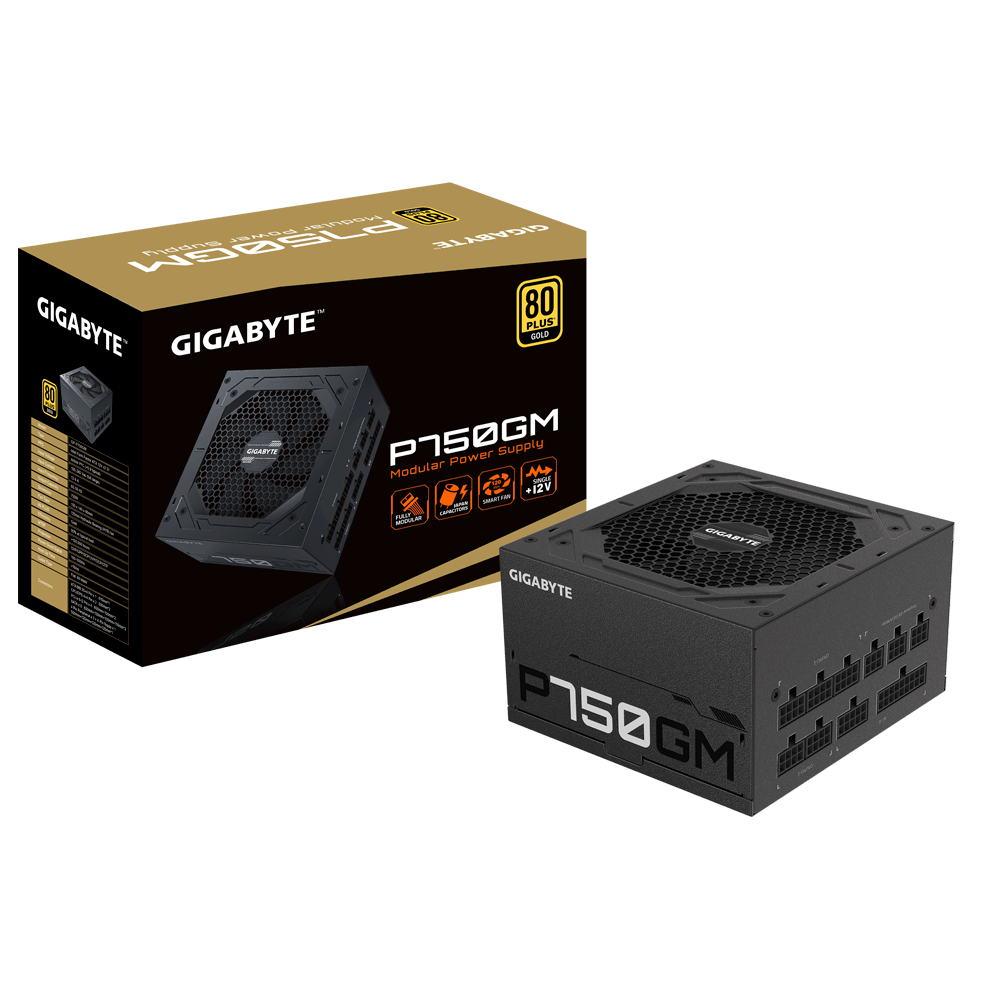

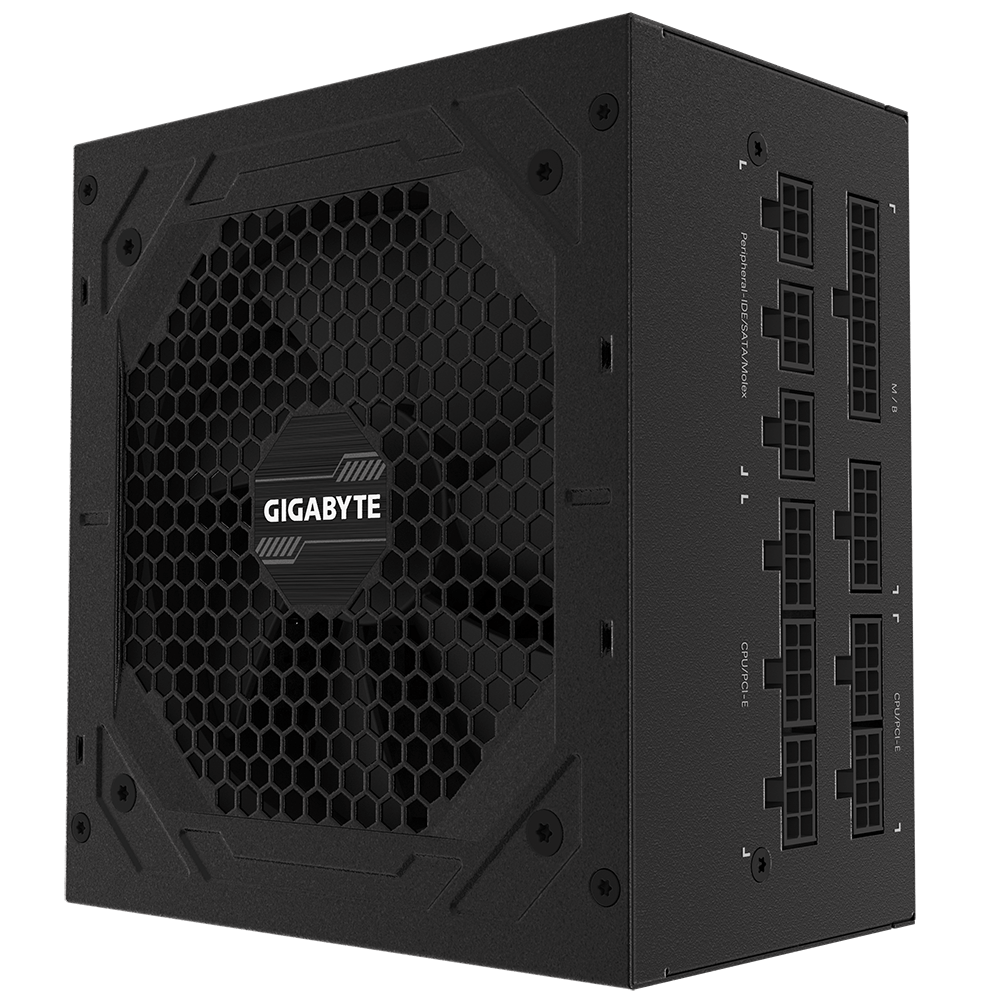

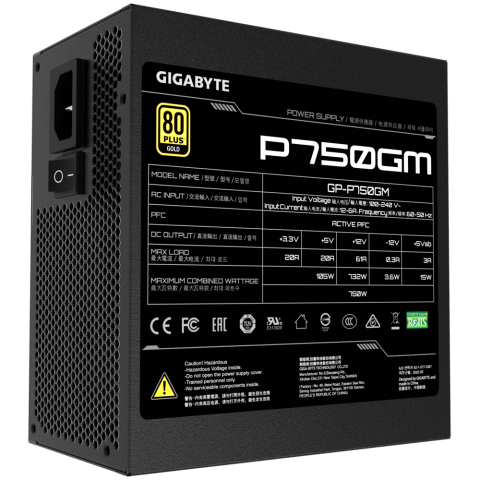

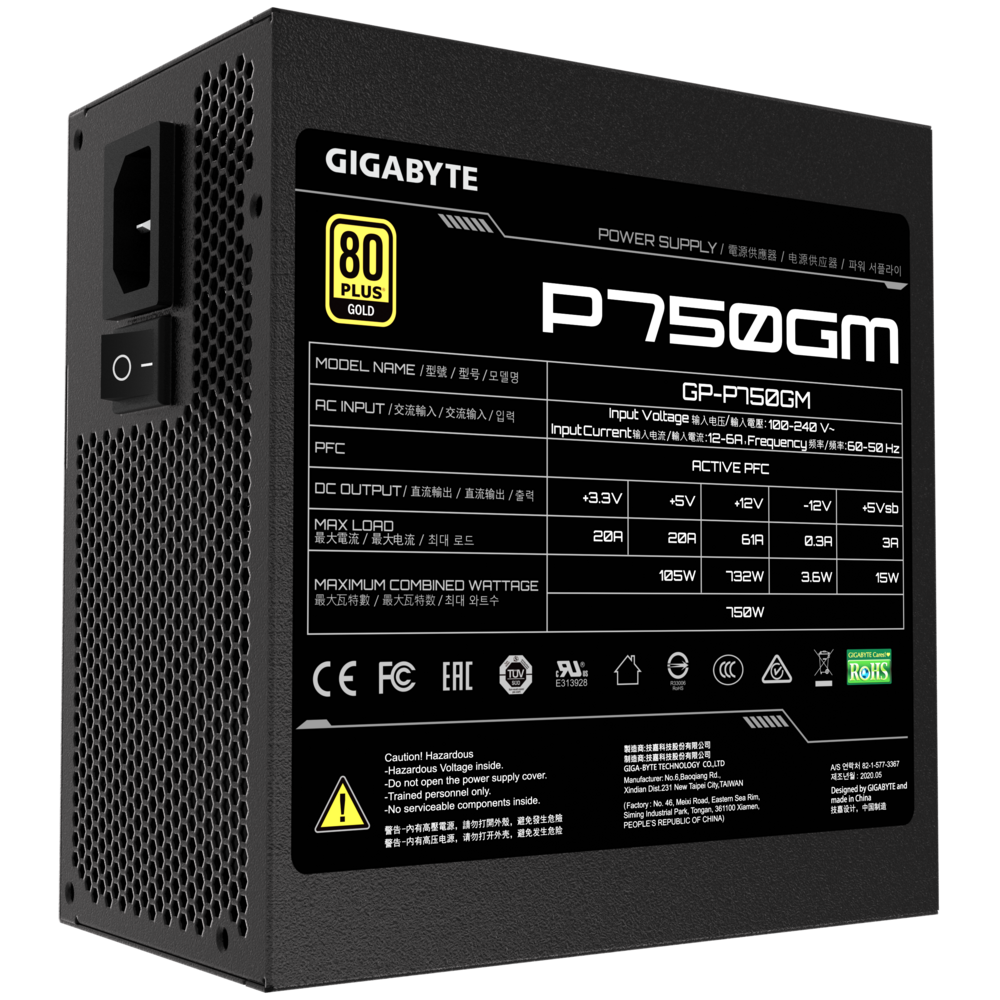

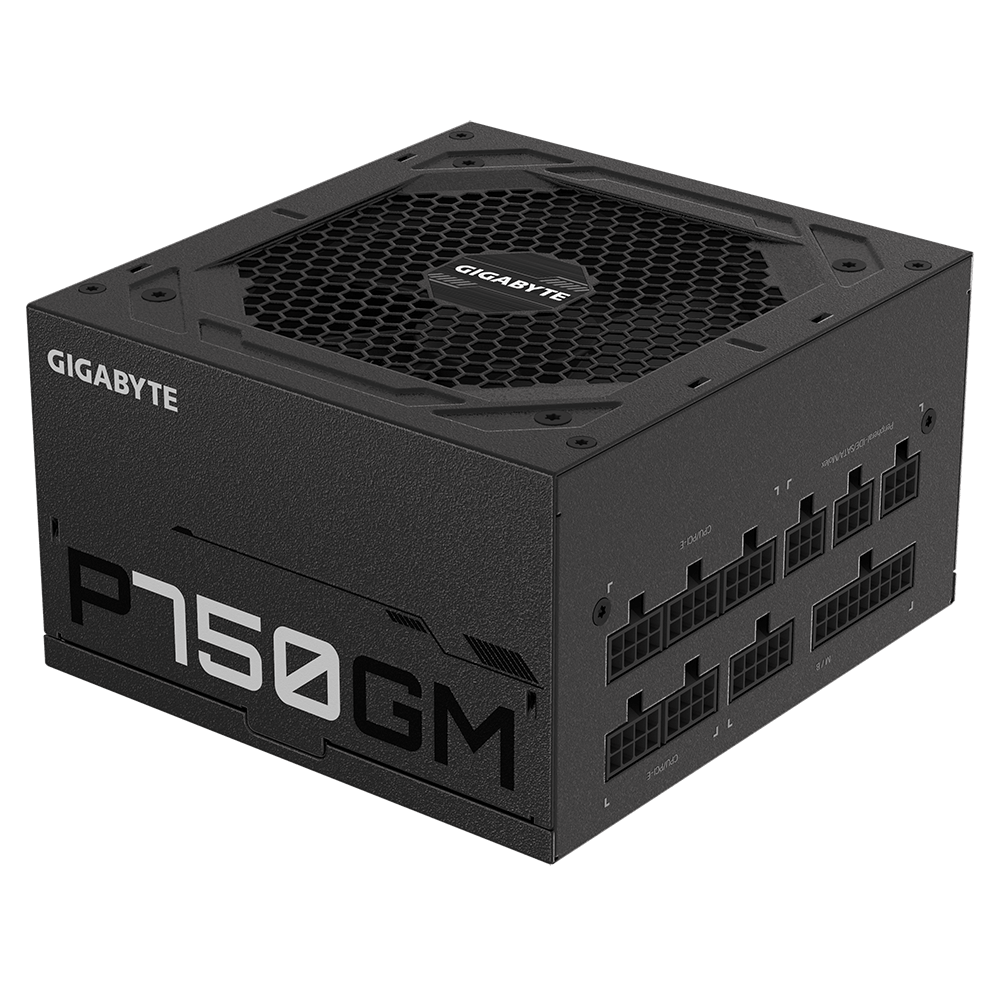

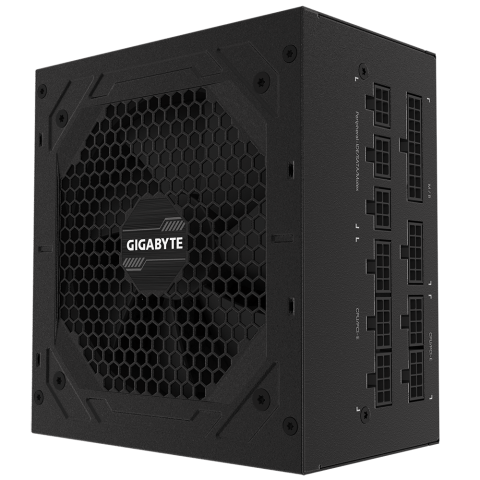

PSU Gigabyte P750GM 80+ Modulara

Sursa Gigabyte Gigabyte P750GM 80+ Modulara Model GP-P750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 1‎00-240 Vac (full range) Input Current 1‎2-6 A Input Frequency 6‎0-50 Hz Output Capacity 7‎50W Dimension 1‎50 x 140 x 86 mm Fan Type 1‎20mm Hydraulic Bearing ( HYB ) fan 80 PLUS Gold Efficiency 9‎0% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 1‎00-500ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1 https://www.gigabyte.com/Power-Supply/GP-P750GM/sp#sp
Garantie: 60 luni


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Fan location: Top
Harmonized System (HS) code: 84733020

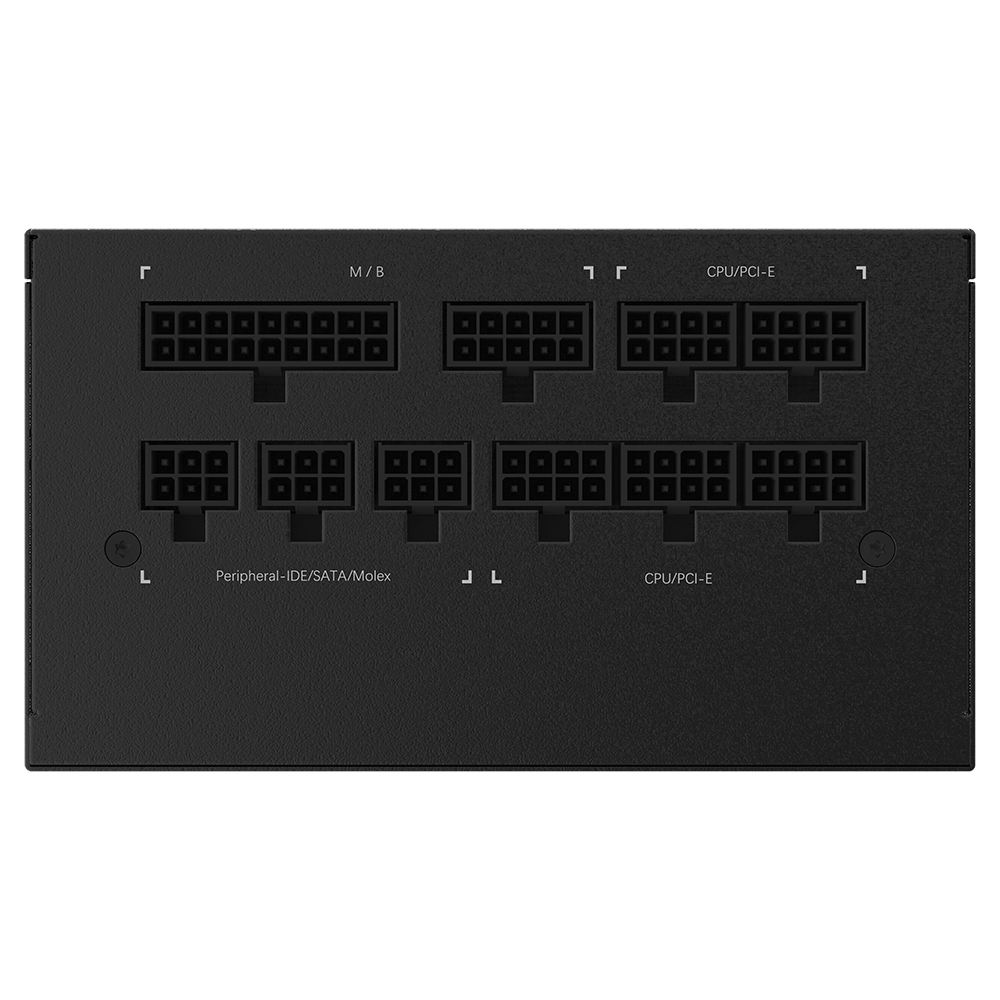

Cables included: CPU, PCIe, Peripheral (Molex), SATA
80 PLUS certification: 80 PLUS Gold
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Mean time between failures (MTBF): 100000 h
Purpose: PC
Peripheral (Molex) power connectors (4-pin): 4
Motherboard power connector: 20+4 pin ATX
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 4
CPU power connector (4+4 pin): Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Number of SATA power connectors: 8
Motherboard power cable length: 61 cm
Cabling type: Fully-Modular
PCI Express power cable length: 60 cm
Floppy drive power connector: 1
Peripheral (Molex) power cable length: 120,500 mm
SATA power cable length: 150,600 mm
Floppy disk drive cable length: 12 cm
Input current: 12 - 6 A
Efficiency: 90%
Hold time: 16 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type: Active
Total power: 750 W
AC input frequency: 50 - 60 Hz
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Modular: Yes
