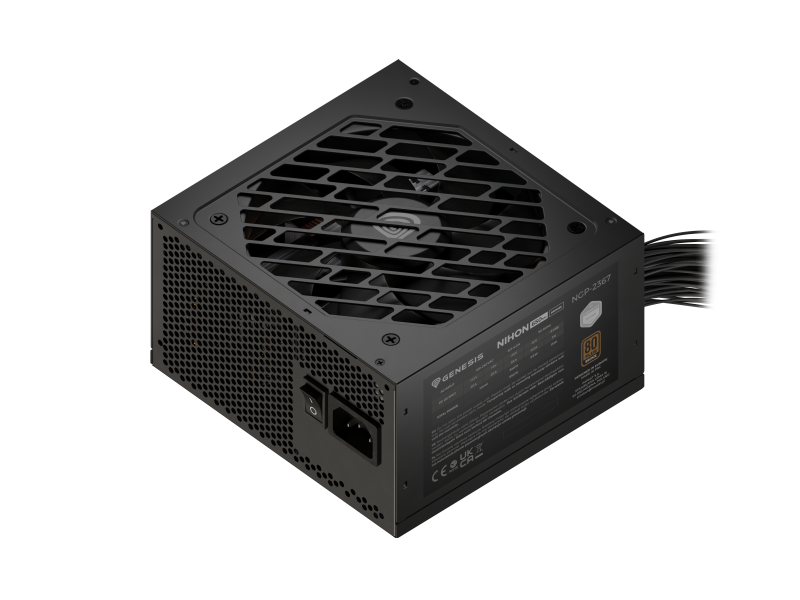

PSU GENESIS NIHON 650NM BLACK

PSU GENESIS NIHON 650NM BLACK
Garantie: 12 luni


Specificatii tehnice

Compliance certificates: CE, RoHS, UKCA
Product colour: Black
On/off switch: Yes
Illumination: No
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)
Operating temperature (T-T): 0 - 40 °C
Cables included: AC
Packaging content: User guide, Set of assembly elements, Velcro bands, Cable combs
Package weight: 2.36 kg
Package depth: 290 mm
Package width: 240 mm
Package height: 125 mm
Mean time between failures (MTBF): 80000 h
Cybenetics certification: Silver
Cybenetics noise rating: Standard++
Noise level: 24.7 dB
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
Bearing technology: FDB
ATX version: 3.1
Number of EPS connectors: 2
CPU power cable length: 85 cm
SATA power cable length: 450,550,650 mm
PCI Express power cable length: 67 cm
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 750 mm
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Cabling type: Non-Modular
Number of SATA power cables: 2
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Total power: 650 W
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Max output current (+12V): 54 A
Max output current (-12V): 0.3 A
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 15 W
Max output current (+5Vsb): 3 A
Input current: 8 - 4 A
Efficiency: 88%
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Country of origin: China
Depth: 140 mm
Width: 150 mm
Height: 86 mm
Weight: 1.96 kg
