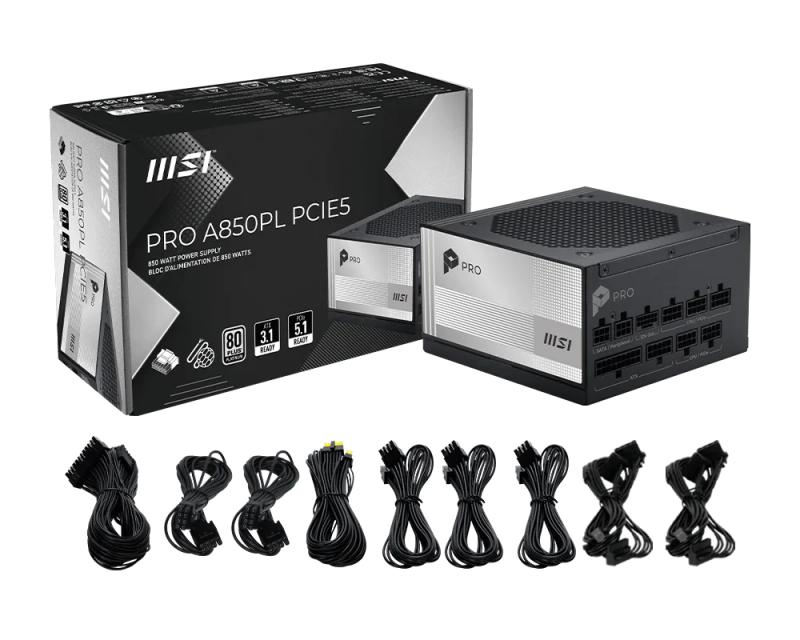

MSI PRO A850PL PCIE5 power supply

MSI PRO A850PL PCIE5 power supply


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Black
Fan diameter: 12 cm
On/off switch: Yes
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Power supply unit (PSU) form factor: ATX
Motherboard power cable length: 60 cm
Cabling type: Fully-Modular
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
EPS power connector (4+4 pin): Yes
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power connectors (4-pin): 2
ATX Power connector (24-pin): No
Floppy disk drive connector: No
Total power: 850 W
Combined power (+12V): 849.6 W
Max output current (+12V): 70.8 A
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Efficiency: 80Plus-Platinum
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Combined power (+3.3V): 100 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Modular: Yes
PSU-Power: ≥751W
