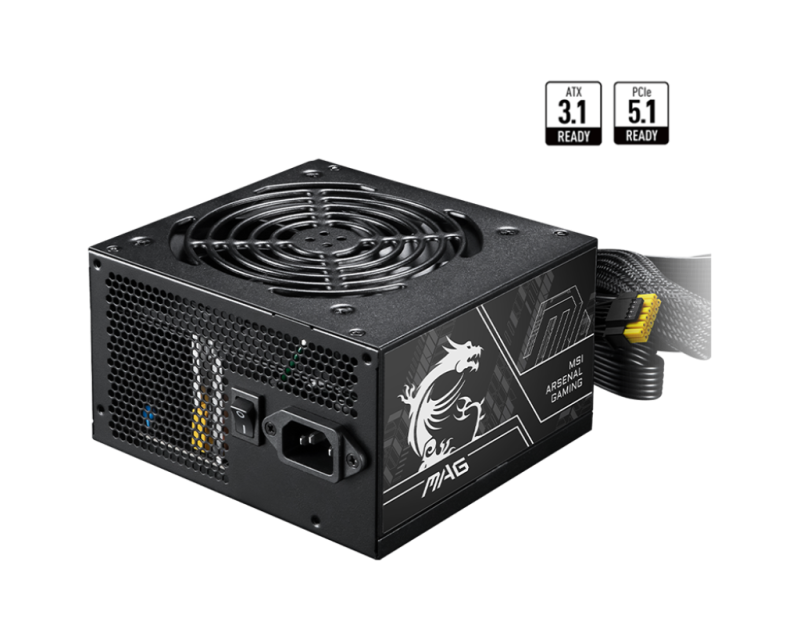

MSI MAG A750BN PCIE5 II power supply

MSI MAG A750BN PCIE5 II power supply


Specificatii tehnice

Cooling type: Active
Number of fans: 1 fan(s)
Illumination: No
Fan diameter: 12 cm
Product colour: Black
On/off switch: Yes
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
Motherboard power connector: 24-pin ATX
ATX Power connector (24-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Floppy drive power connector: 1
PCI Express power connectors (16-pin): 1
PCI Express power connectors (6+2 pin): 2
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
Number of SATA power connectors: 1
Efficiency: 85%
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Max output current (+5Vsb): 32.5 A
Power protection features: Over current, Over power, Over voltage, Short circuit
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Total power: 750 W
Combined power (+12V): 750 W
Combined power (+5Vsb): 15 W
Max output current (+12V): 62.5 A
Depth: 140 mm
Width: 150 mm
Height: 86 mm
