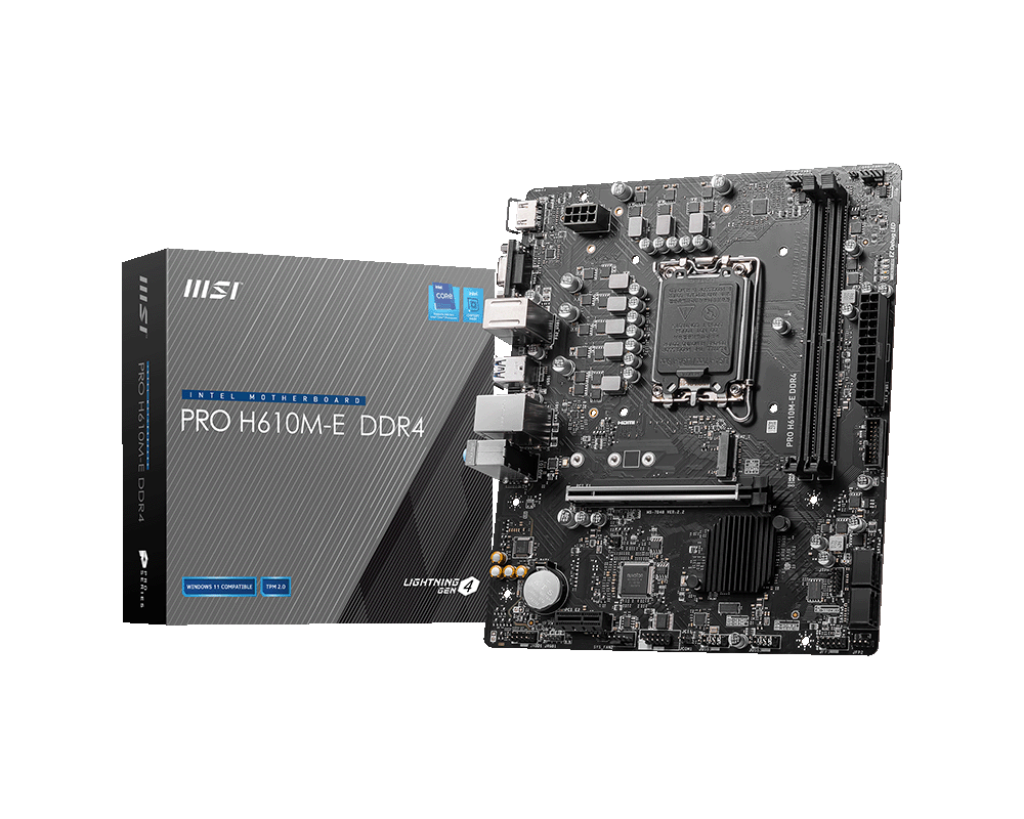

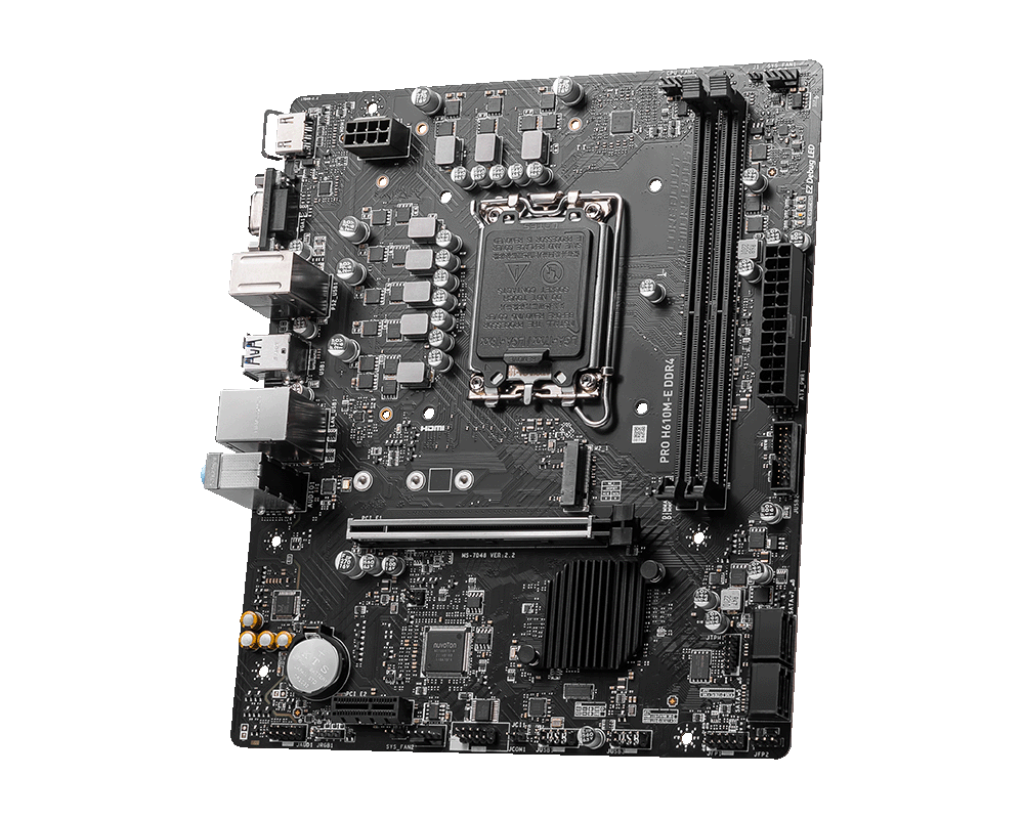

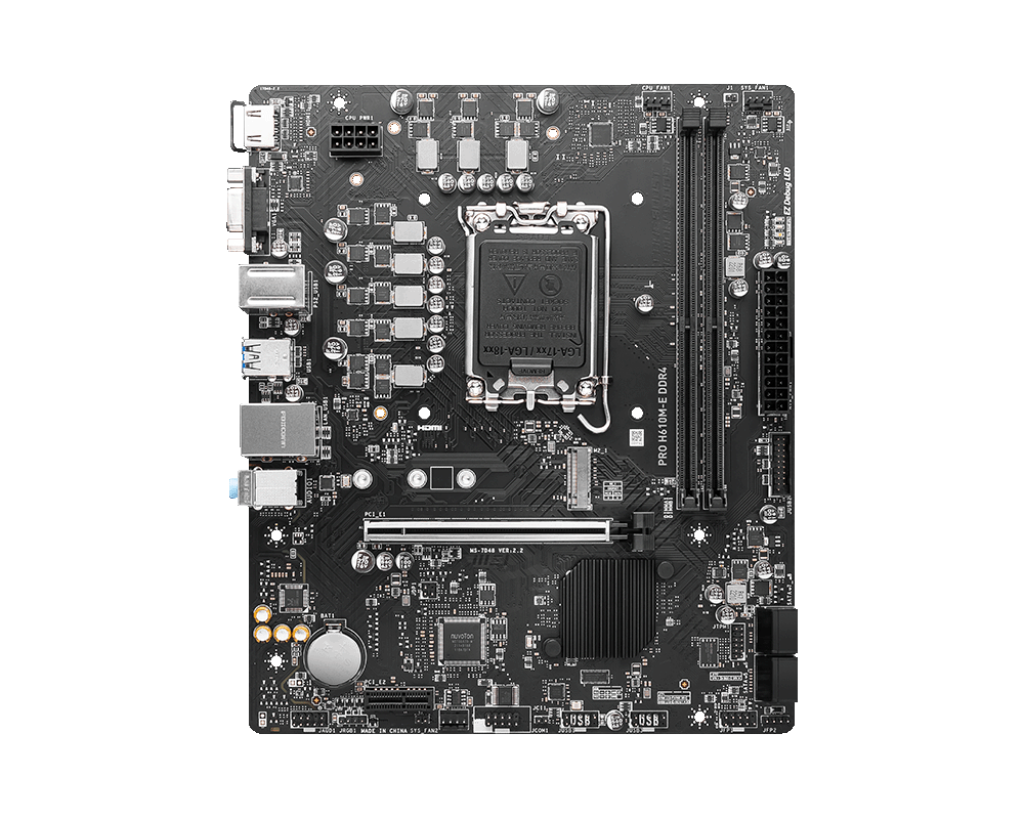

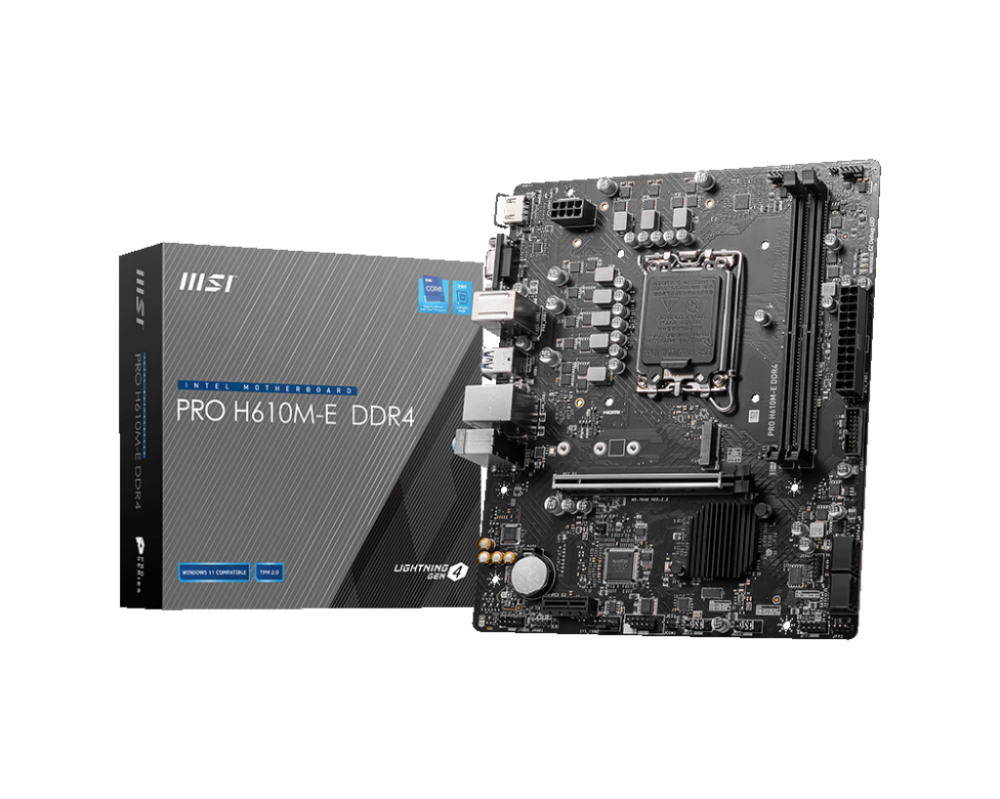

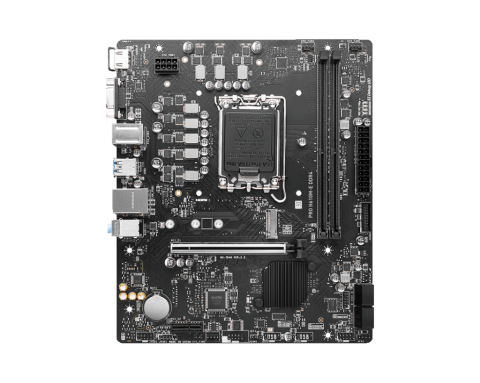

MB MSI PRO H610M-E LGA1700 DDR4

Placa de baza MSI PRO H610M-E LGA1700 DDR4 SPECIFICATIONS Model Name PRO H610M-E DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot Storage 1x M.2 Gen3 x4 32Gbps slot, 4x SATA 6Gbps ports USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A) 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
System Management BIOS (SMBIOS) version: 3.4
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Component for: PC
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Motherboard form factor: micro ATX
Parallel processing technology support: Not supported
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
TPM connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
Number of chassis fan connectors: 1
Supported memory clock speed (max): 3200 MHz
Supported memory clock speeds: 2133,2666,2933,3000,3200 MHz
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
Weight: 760 g
Cables included: SATA
Drivers included: Yes
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i9
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 0
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Height: 65 mm
Onboard-CPU: No
PCI: 1
Serial-or-Paralel: Yes/No
