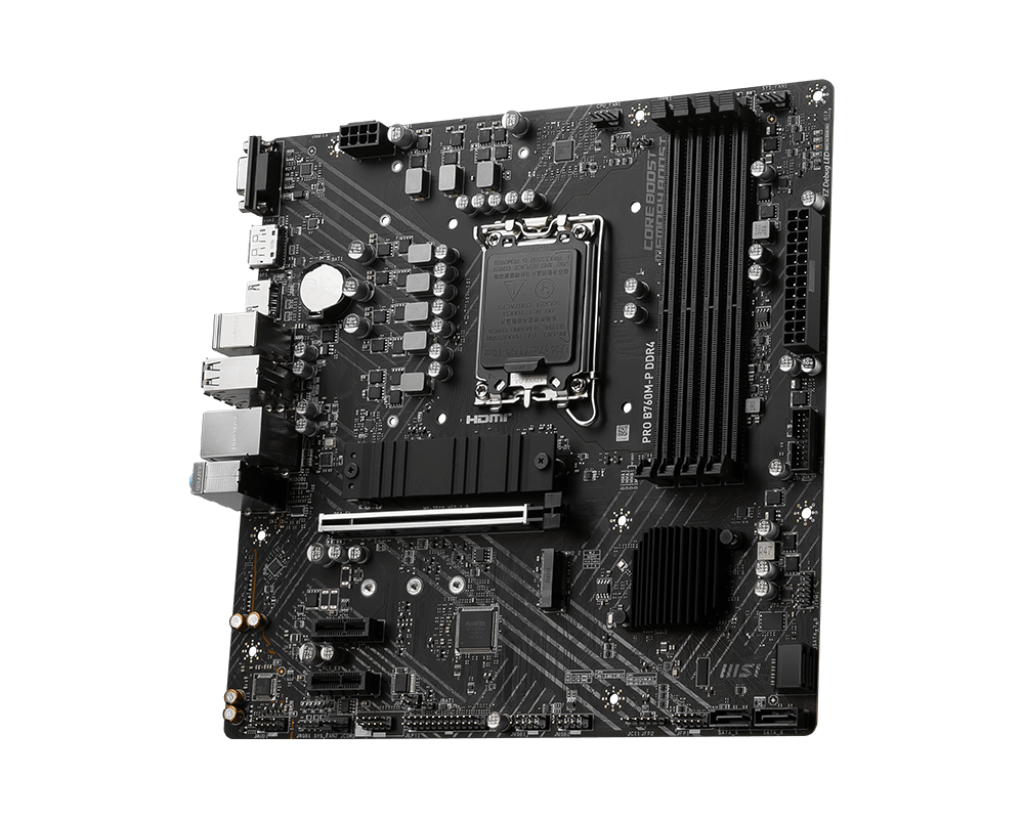

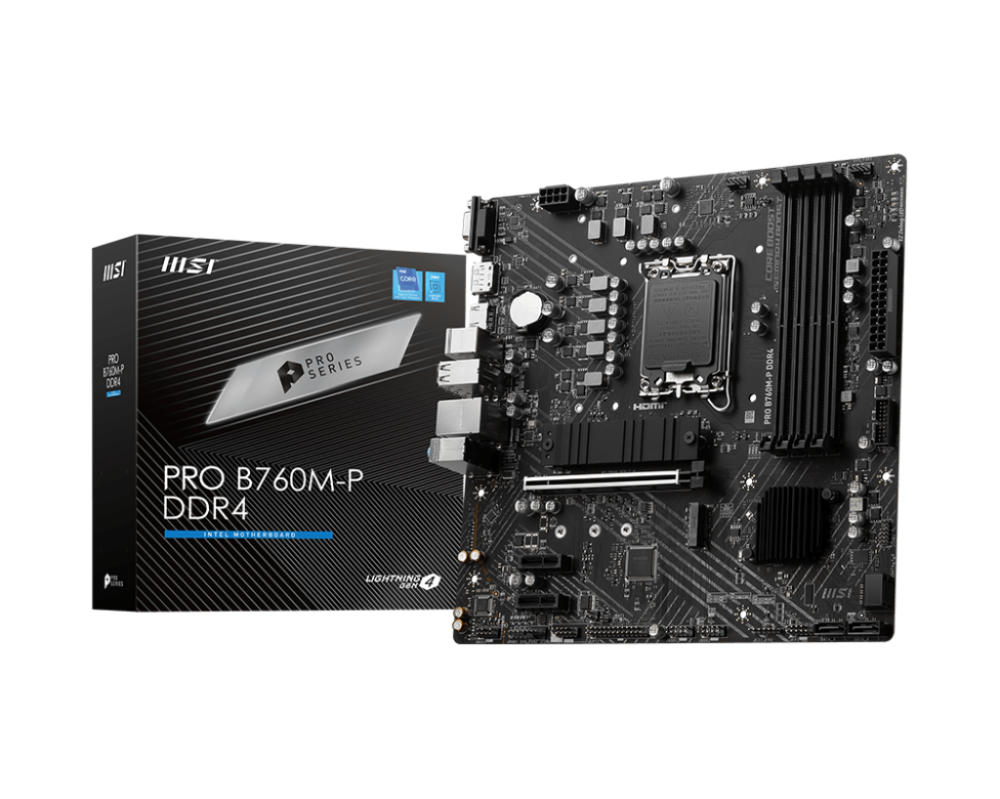

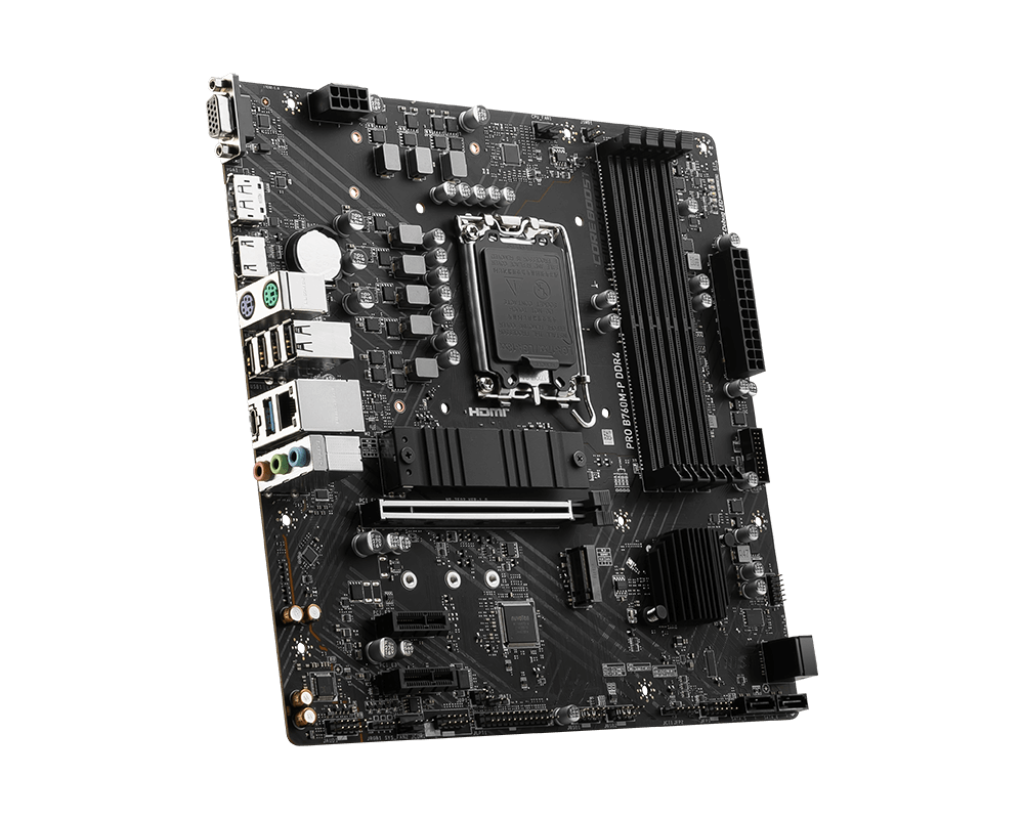

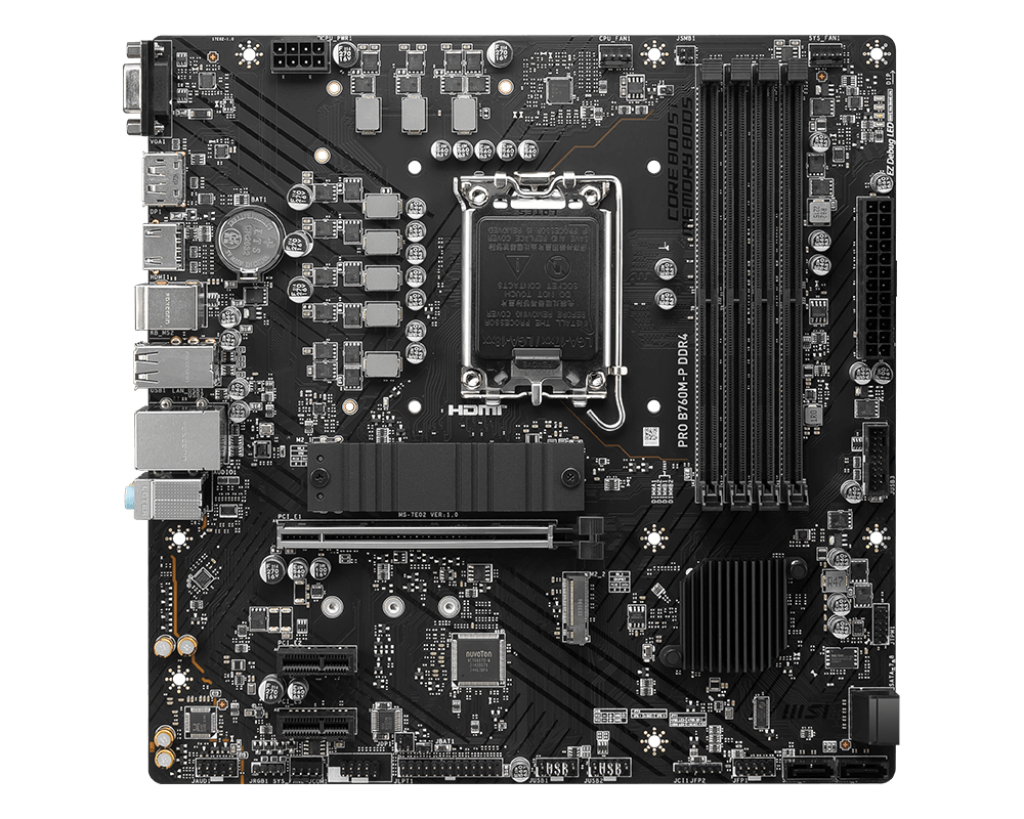

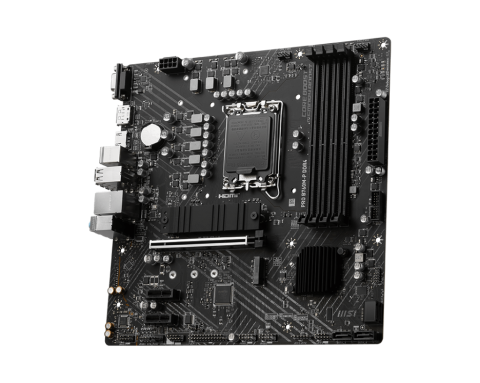

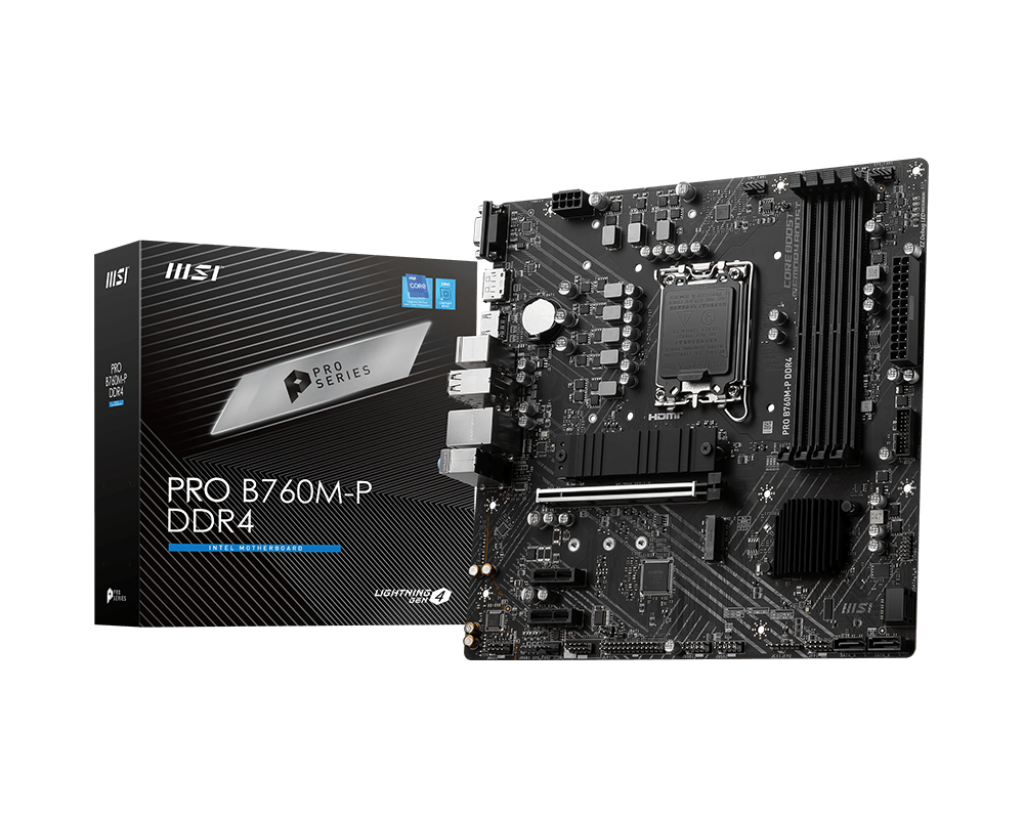

MB MSI PRO B760M-P DDR4 LGA1700

Placa de baza MSI PRO B760M-P DDR4 LGA1700 SPECIFICATIONS Model Name PRO B760M-P DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 4.0 x16 slot 2x PCIe 4.0 x1 slots Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort 1.4, VGA – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz(OC) Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C), 3x USB 3.2 Gen 1 5Gbps (3 Type-A), 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
System Management BIOS (SMBIOS) version: 3.5
PCI Express x16 slots: 2
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Motherboard form factor: micro ATX
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Power source type: ATX
On-board graphics card: No
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 4
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 4800 MHz
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
mSATA ports quantity: 0
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Processor manufacturer: Intel

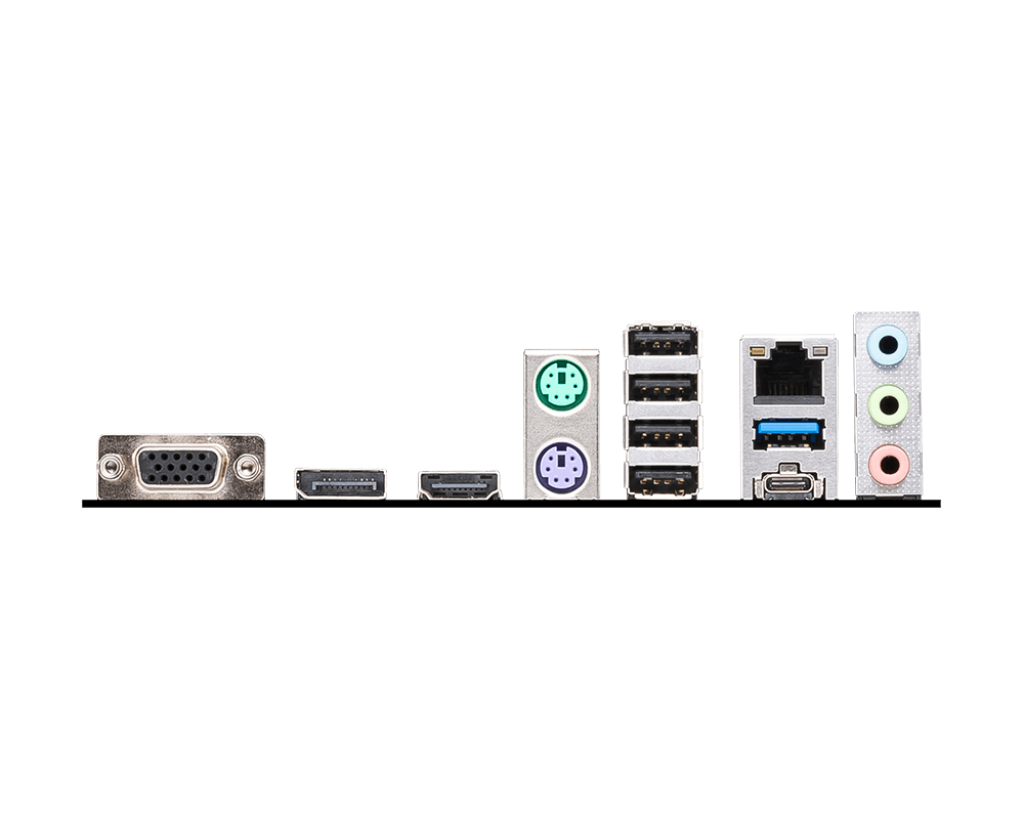

HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 5, 10
Width: 243.8 mm
Depth: 243.8 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
