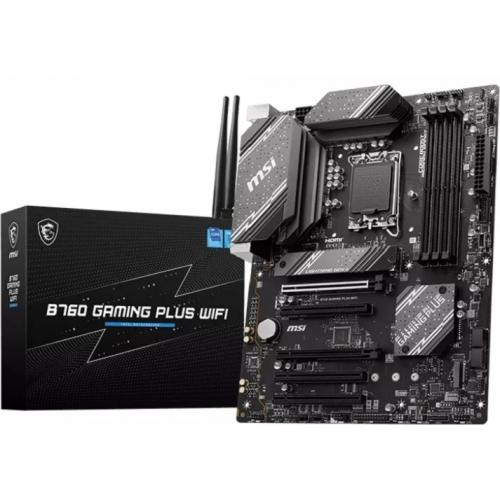

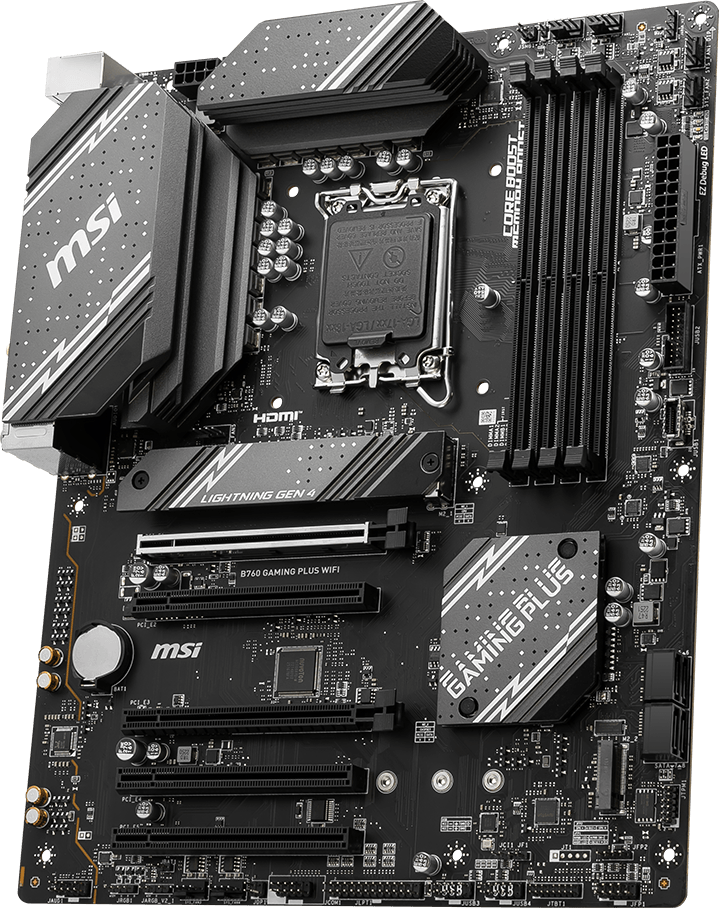

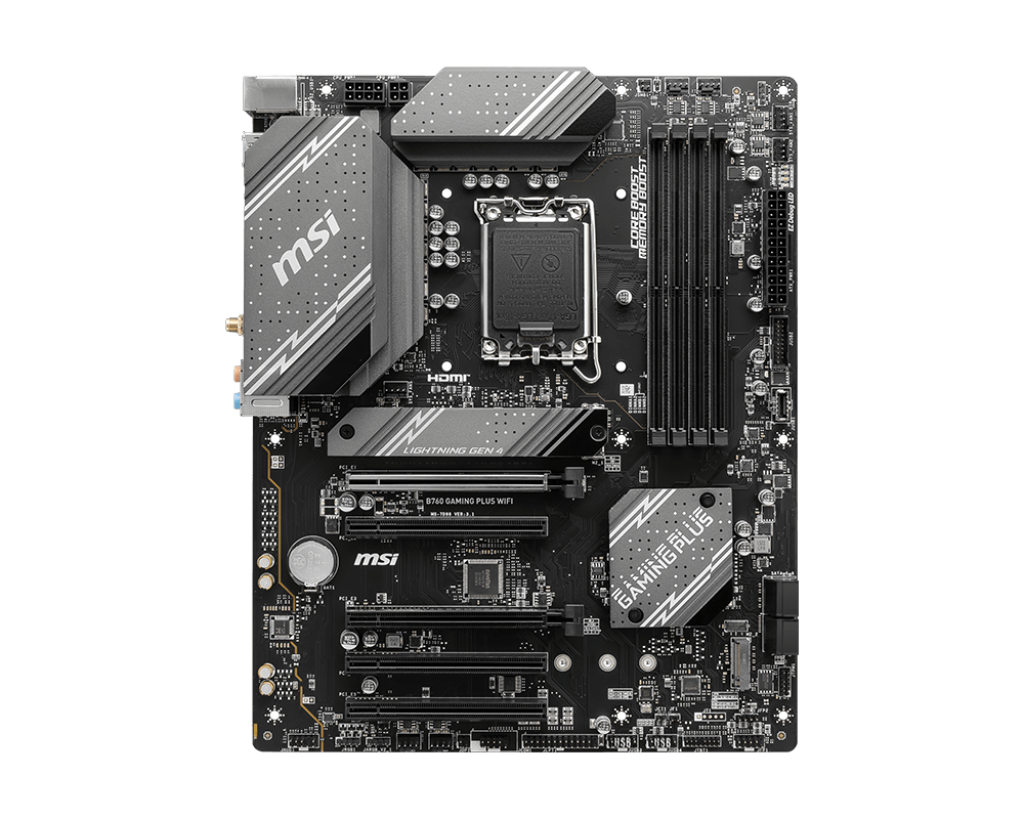

MB MSI B760 GAMING PLUS WIFI DDR5

Placa de baza MSI B760 GAMING PLUS WIFI 4x DDR5 LGA1700 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 5x PCI-E x16 slot https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI/Specification
Garantie: 36 luni


Specificatii tehnice

Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 slots: 2
PCI Express x1 slots: 3
Product colour: Black
Motherboard chipset: Intel B760
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Component for: PC
On-board graphics card: No
TPM connector: Yes
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
S/PDIF out connector: Yes
USB 2.0 connectors: 4
Number of memory slots: 4
Memory slots type: DIMM
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
LAN controller: Dragon RTL8125BG
Bluetooth version: 5.3
mSATA ports quantity: 0
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
S/PDIF out port: Yes
DisplayPorts quantity: 1
RAID support: Yes
RAID levels: 0, 1, 5, 10
Supported storage drive interfaces: M.2, SATA
Width: 243.8 mm
Depth: 304.8 mm
MB-Format: ATX
MB-Socket: 1700
PCI-Ex1: 0
RAM-Slots: 2
PCI-Ex16: 5
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
