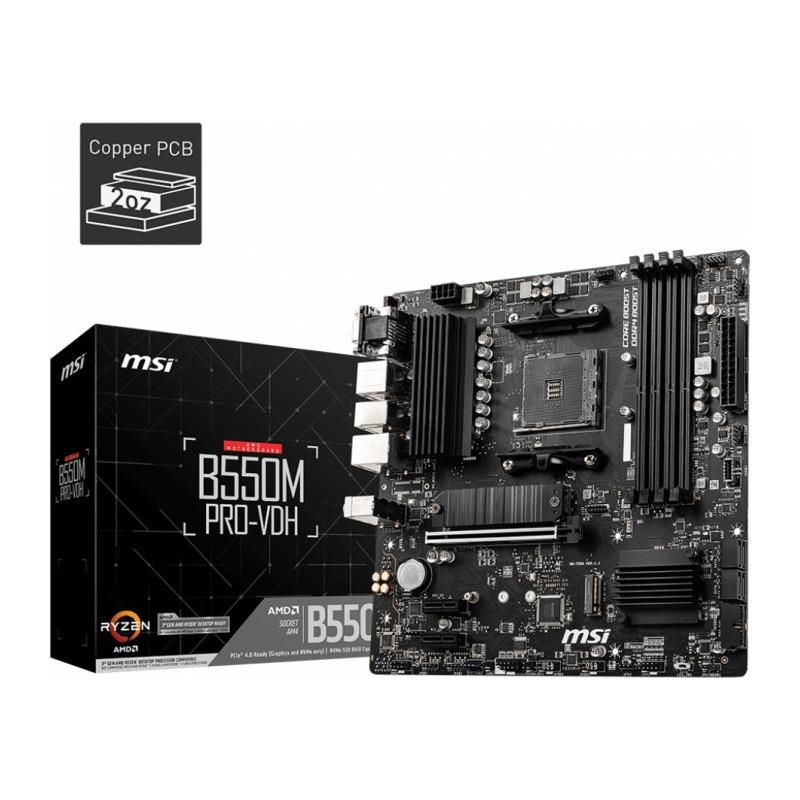

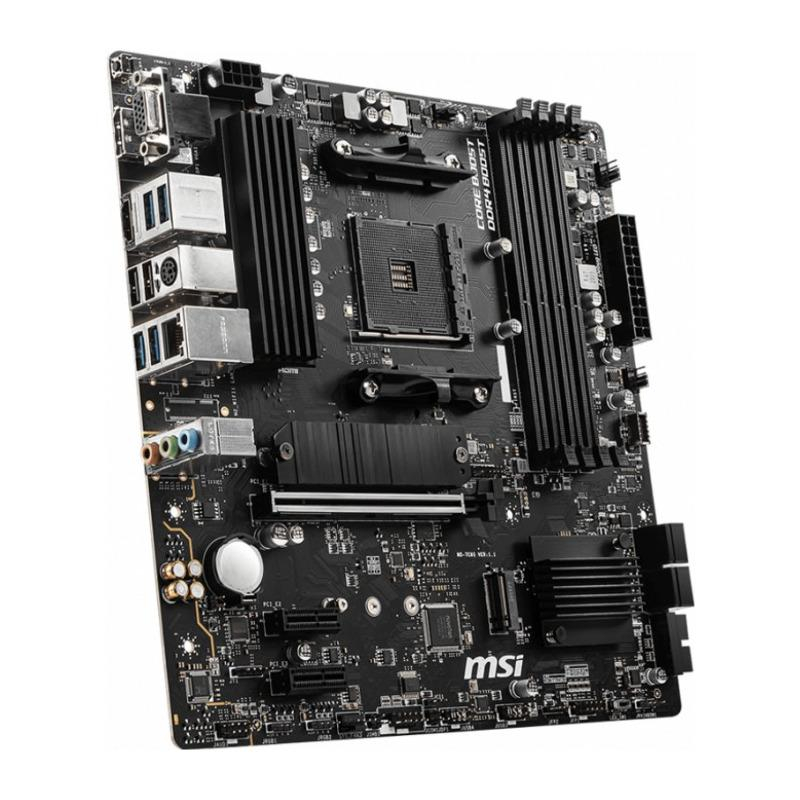

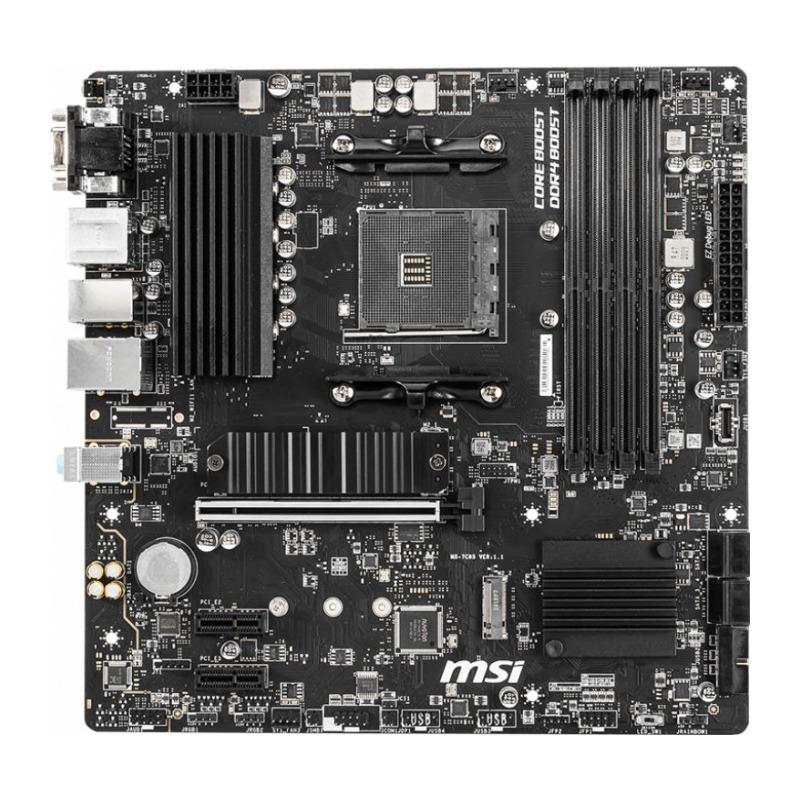

MB MSI B550M PRO-VDH

Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX
Garantie: 36 luni


Specificatii tehnice

Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
Serial port headers: 1
Chassis intrusion connector: Yes
Number of chassis fan connectors: 3
Harmonized System (HS) code: 84733020
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111HN
Weight: 1 kg
Cables included: SATA
Drivers included: Yes
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Processor socket: Socket AM4
DVI-D ports quantity: 0
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
PS/2 ports quantity: 0
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
Supported storage drive interfaces: SATA III
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
Width: 244 mm
Height: 65 mm
Depth: 24.4 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
