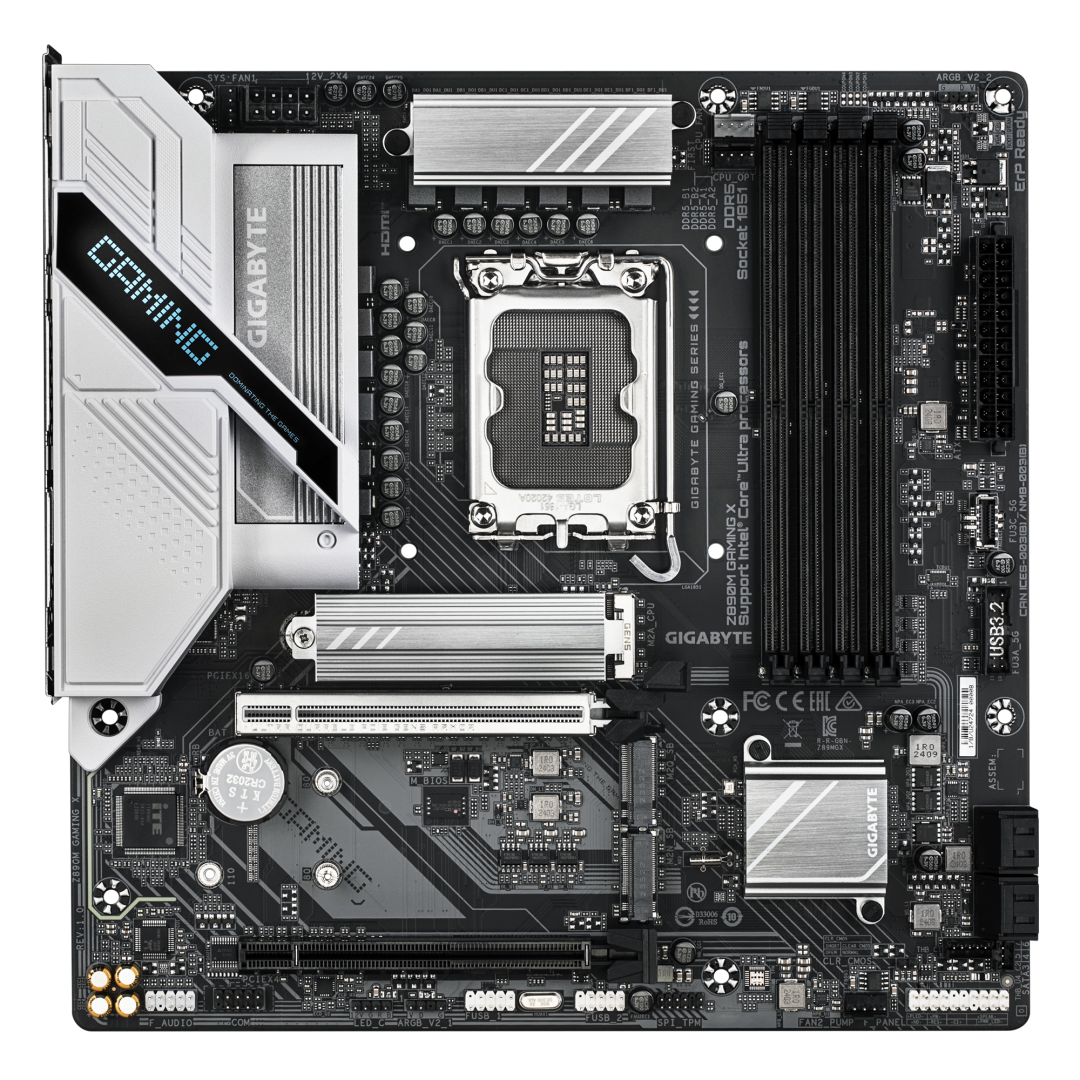

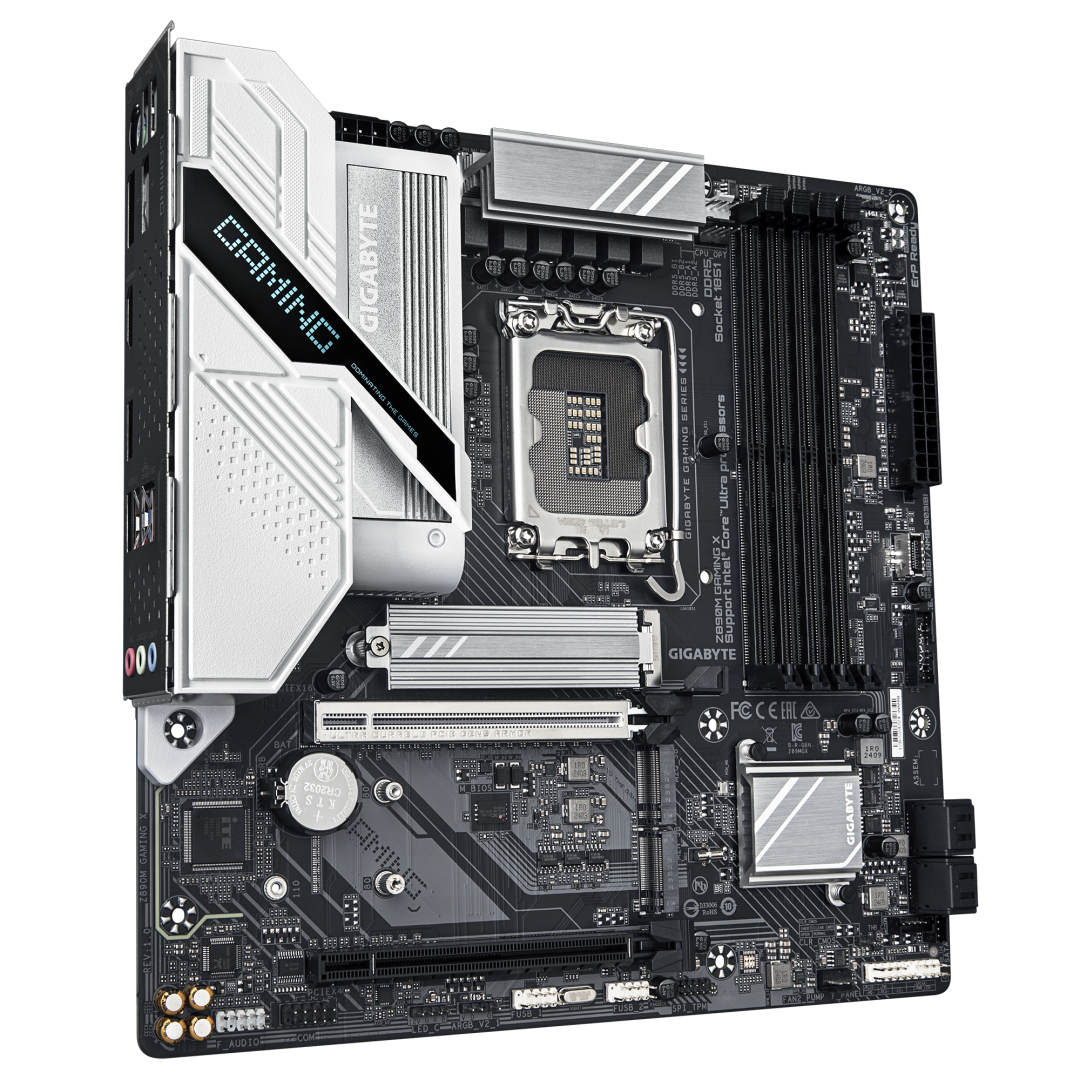

MB GIGABYTE Z890M GAMING X

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Number of M.2 (M) slots: 3

PCI Express x16 slots: 1

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Component for: PC

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Motherboard chipset: Intel Z890

PC health monitoring: Fan, Temperature, Voltage

DirectX version: 12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

Total number of SATA connectors: 4

12V power connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Country of origin: China

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz

Supported memory clock speed (max): 8800 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: No

Weight: 1.1 kg

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package height: 68 mm

Package width: 270 mm

Package depth: 268 mm

Package weight: 1.22 kg

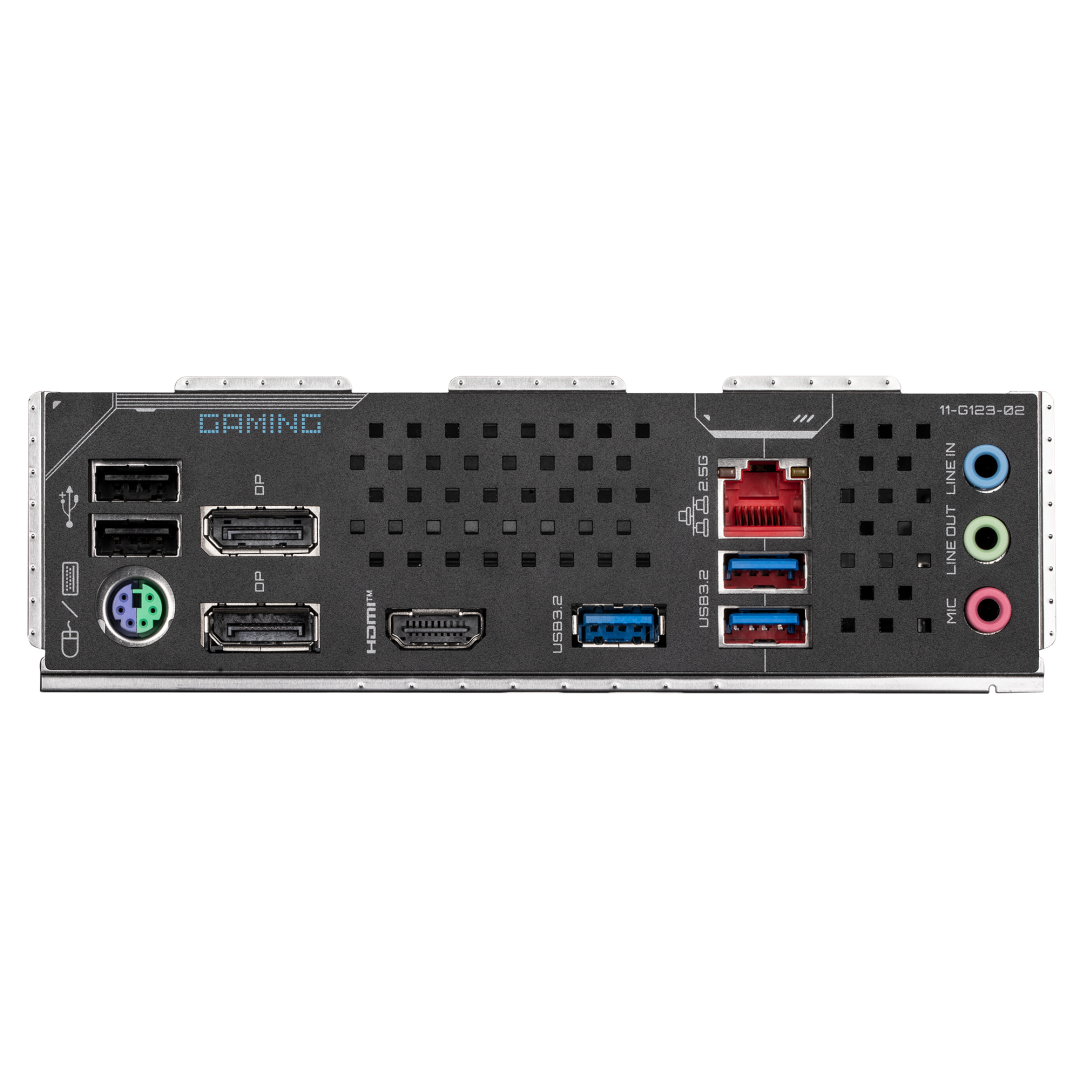

DisplayPorts quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

DVI-D ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Maximum internal memory supported by processor: 256 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 0

Microphone in: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of storage drives supported: 4

Number of HDDs supported: 7

RAID levels: 0, 1, 5, 10

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

PCI-Ex1: 0

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: LGA1851

PCI-Ex16: 2

USB3: 4-8

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: Yes/No

Garantia Produsului: 36 luni
