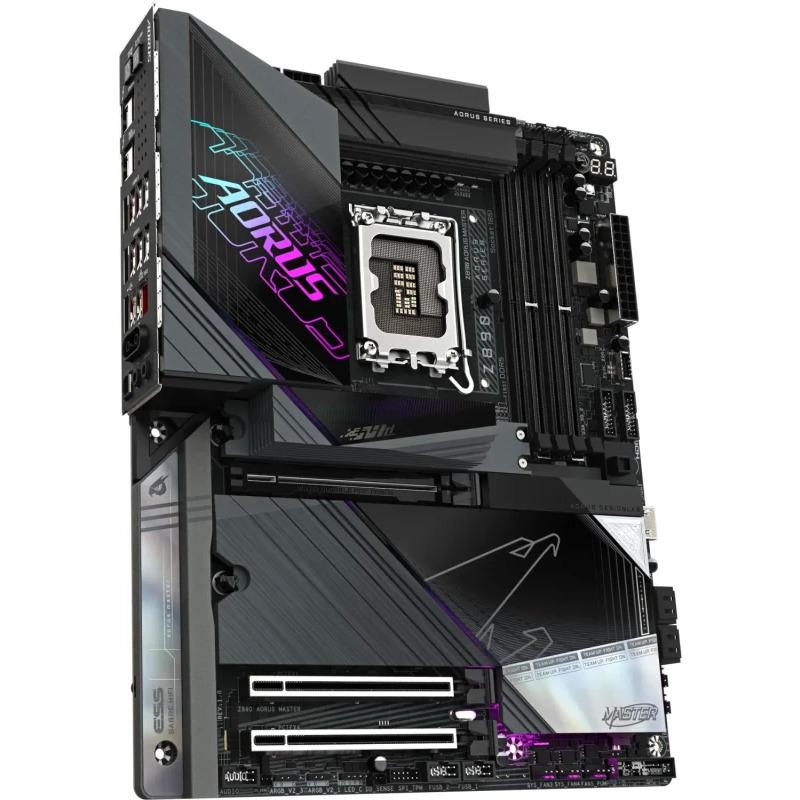

MB GIGABYTE Z890 AORUS MASTER

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Bluetooth: Yes

Product colour: Black

Number of M.2 (M) slots: 5

Motherboard form factor: ATX

Motherboard chipset family: Intel

Windows operating systems supported: Windows 11 x64

Motherboard chipset: Intel Z890

PC health monitoring: Fan, Temperature, Voltage

Component for: PC

Audio output channels: 5.1 channels

DirectX version: 12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Total number of SATA connectors: 4

12V power connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

ECC сompatibility: Non-ECC

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz

Supported memory clock speed (max): 9500 MHz

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Wi-FI: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

WLAN controller model: Intel Wi-Fi 7 BE200

Ethernet interface type: 10 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Weight: 2.19 kg

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package weight: 25.1 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Warranty period: 3 year(s)

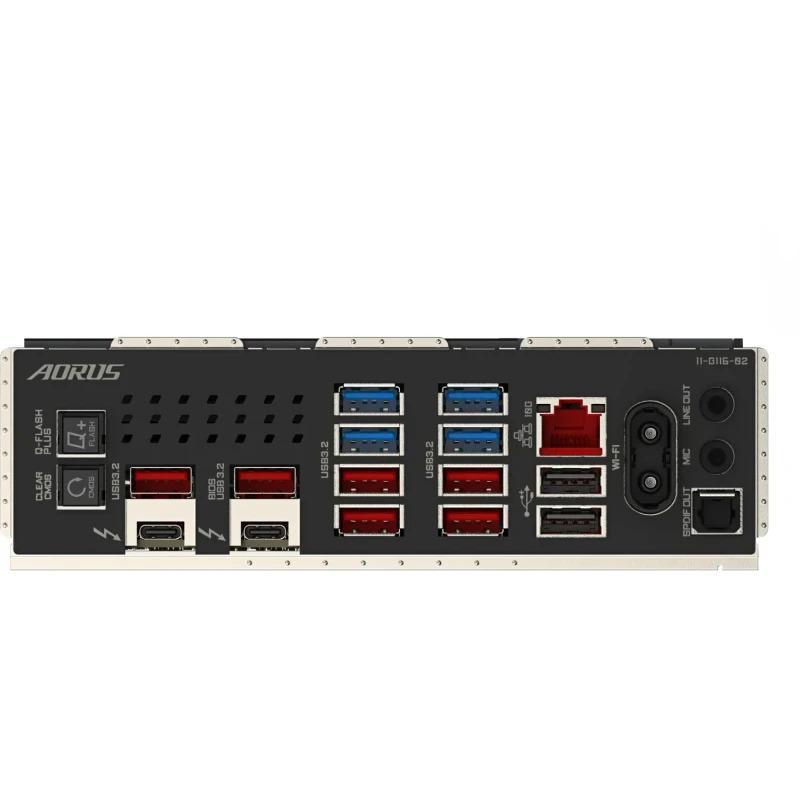

DisplayPorts quantity: 2

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 2

HDMI ports quantity: 1

Processor manufacturer: Intel

Maximum internal memory supported by processor: 256 GB

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Microphone in: Yes

Thunderbolt ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 0

Ethernet LAN (RJ-45) ports: 1

Number of HDDs supported: 9

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 4

RAID levels: 0, 1, 5, 10

Width: 30.5 mm

Depth: 24.4 mm

Height: 35 mm

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
