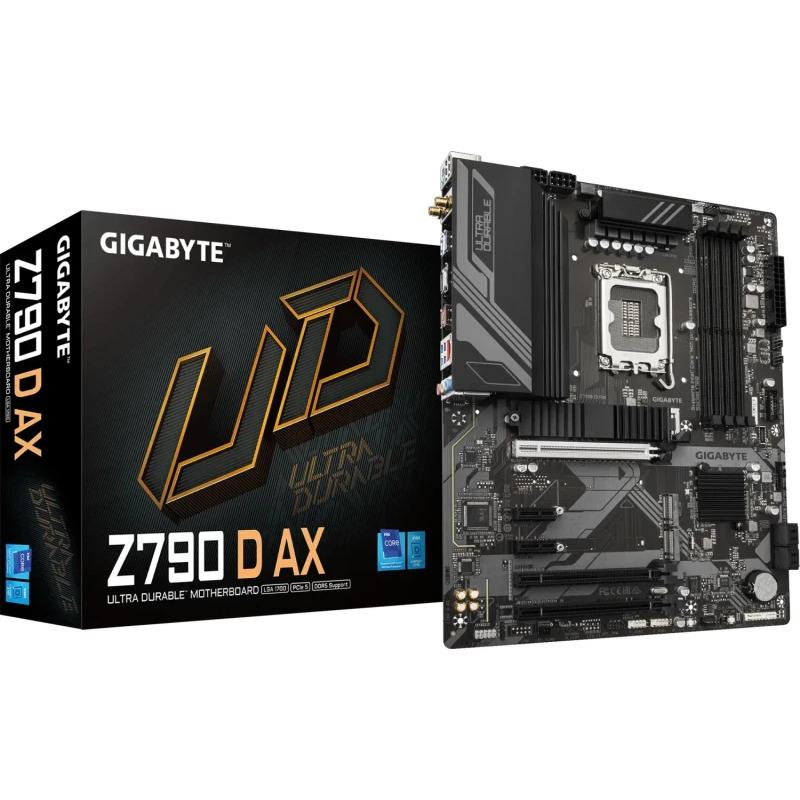

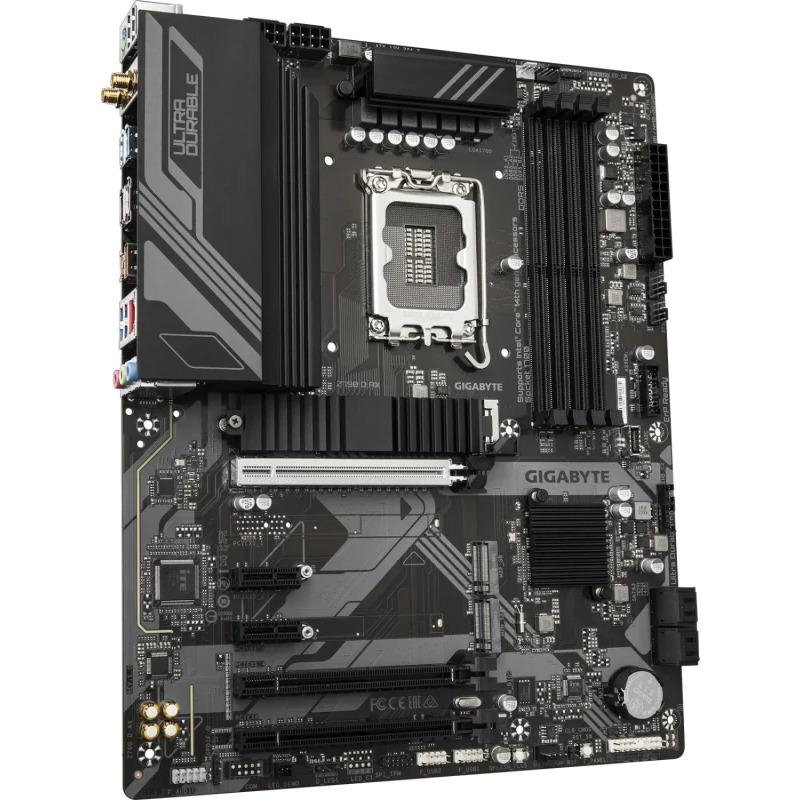

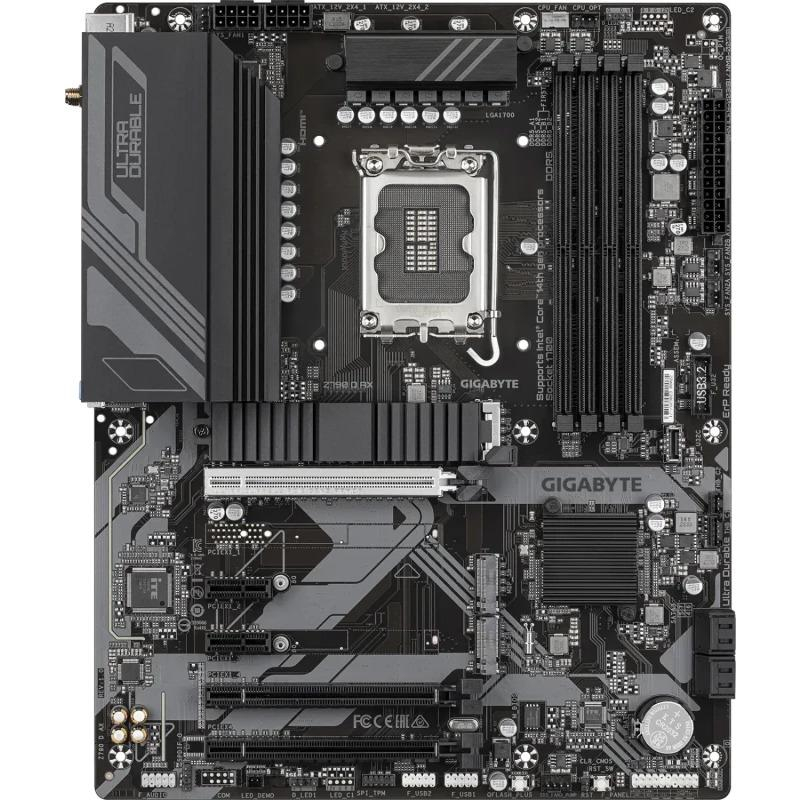

MB GIGABYTE Z790 D AX DDR5 LGA1700

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: Intel Z790 Express

Motherboard form factor: ATX

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Power source type: ATX

DirectX version: 12.0

Maximum resolution: 4096 x 2304 pixels

Discrete graphics support: Yes

Parallel processing technology support: Not supported

HDCP: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Total number of SATA connectors: 4

Number of EATX power connectors: 2

Thunderbolt headers: 2

12V power connector: Yes

Country of origin: China

Supported memory clock speed (max): 7600 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory clock speeds: 4400,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Ethernet LAN: Yes

Wi-FI: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Antenna included: Yes

Cables included: SATA

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package weight: 1.84 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

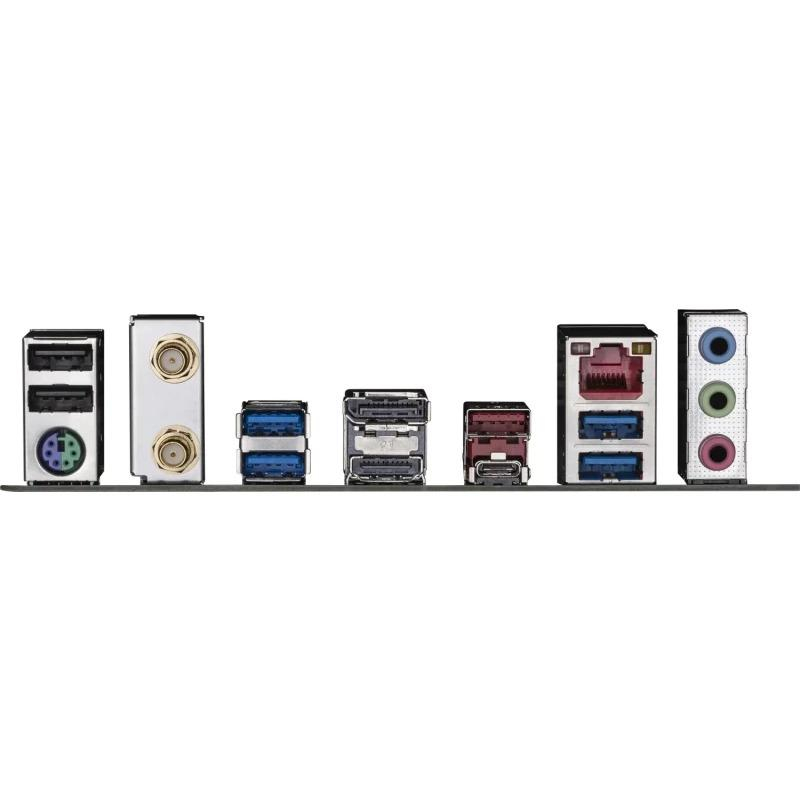

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 2

DVI-D ports quantity:

DisplayPort version: 1.2

DisplayPorts quantity: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Supported processor sockets: LGA 1700

Maximum internal memory supported by processor: 192 GB

Microphone in: Yes

Headphone outputs: 1

USB connector type: USB Type-A, USB Type-C

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 0

PS/2 ports quantity: 1

WiFi-AP antenna jack: 2

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0, 1, 5, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Height: 35 mm

Width: 30.5 mm

Depth: 24.4 mm

MB-Format: ATX

MB-Socket: 1700

PCI-Ex16: 3

RAM-Slots: 4

PCI-Ex1: 2

USB3: 4-8

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
