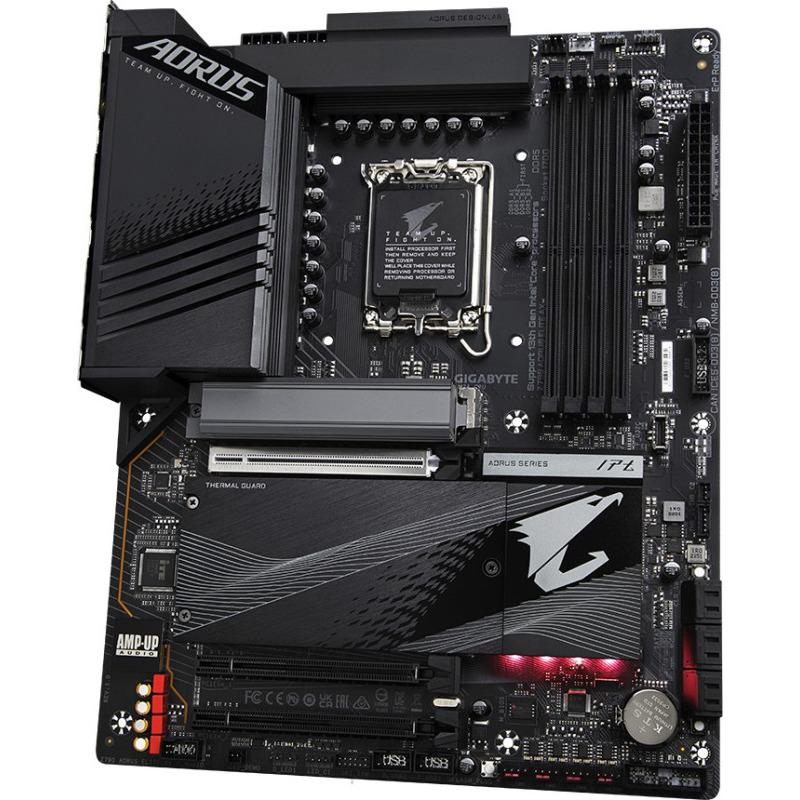

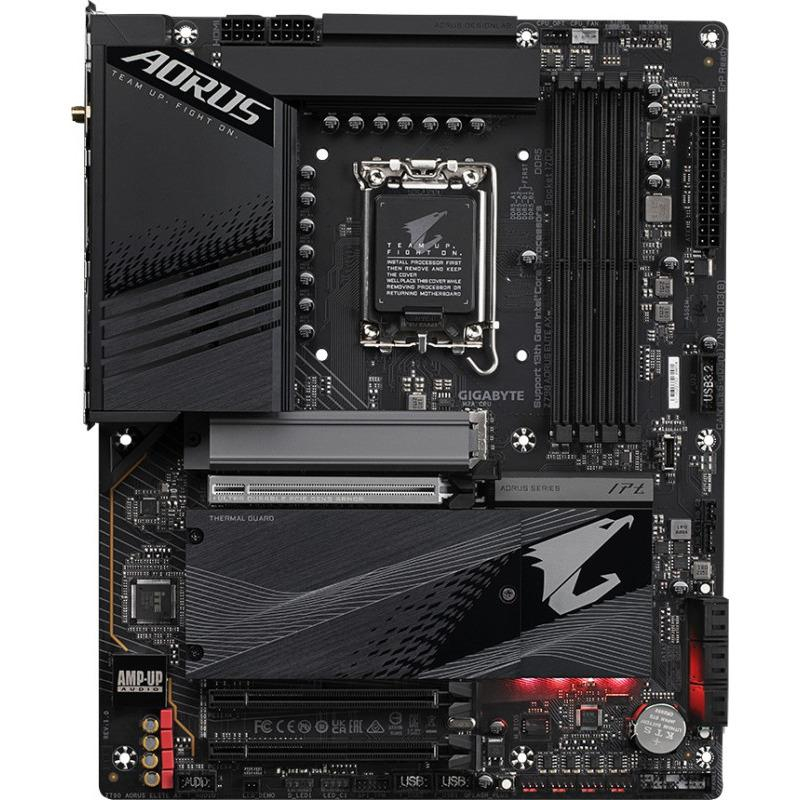

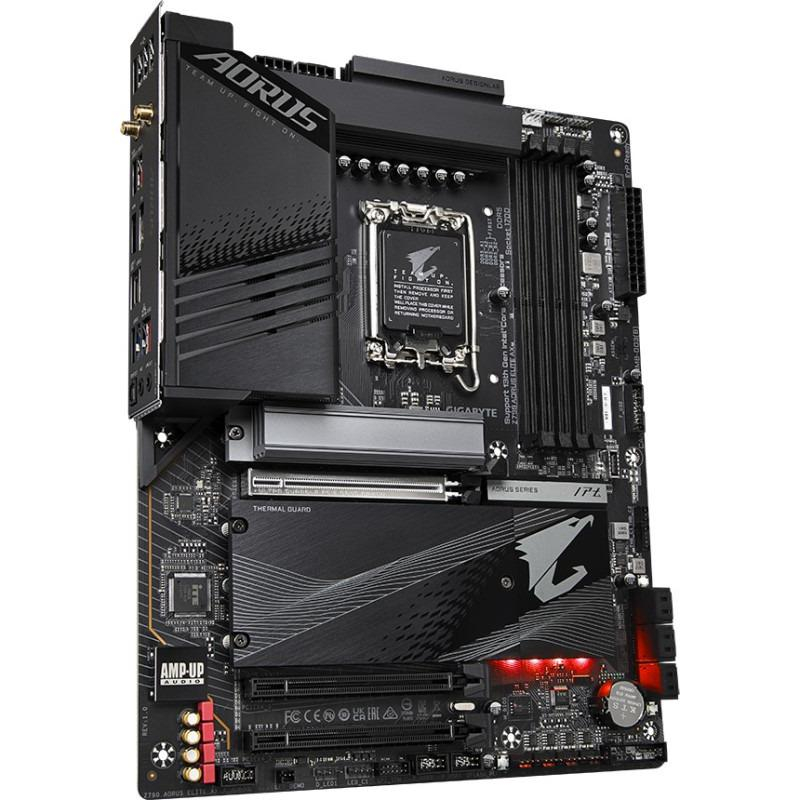

MB GIGABYTE Z790 AORUS ELITE AX LGA 1700

Placa de baza Gigabyte Z790 AORUS ELITE AX LGA 1700,Z790, PCIe Gen 5, ATX, 4x DIMM slots, DDR5 7600MHz(OC), 4 x M.2 , 6 x SATA, 2.5Gb LAN, WIFI 6E, HDMI, 9x USB, Type-C
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x16 slots: 3
Number of M.2 (M) slots: 4
Motherboard chipset: Intel Z790
Motherboard form factor: ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
On-board graphics card: No
HDCP: Yes
Parallel processing technology support: Crossfire
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
Thunderbolt headers: 2
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 6
Total number of SATA connectors: 6
Country of origin: China
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Supported memory types: DDR5-SDRAM
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory clock speed (max): 7600 MHz
Supported memory clock speeds: 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Ethernet LAN: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
mSATA ports quantity: 0
Bundled software: Norton Internet Security
Cables included: SATA
Package weight: 2.32 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 192 GB
Processor manufacturer: Intel

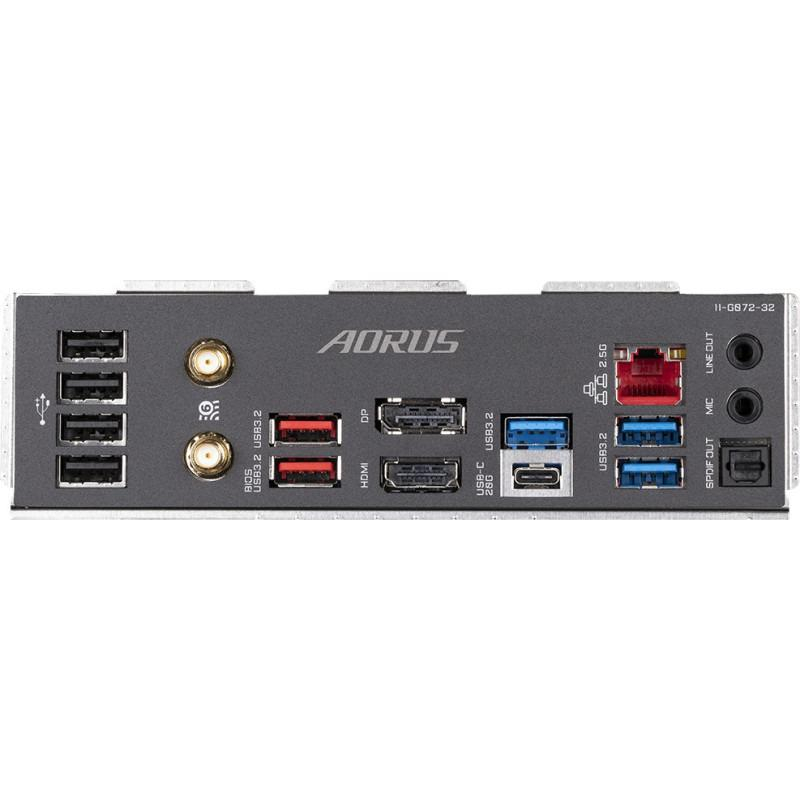

USB connector type: USB Type-A, USB Type-C
HDMI ports quantity: 1
HDMI version: 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPort version: 1.2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
S/PDIF out port: Yes
WiFi-AP antenna jack: 2
Headphone outputs: 2
Microphone in: Yes
RAID levels: 0, 1, 5, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of HDDs supported: 6
Number of storage drives supported: 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Width: 30.5 mm
Depth: 24.4 mm
Height: 35 mm
MB-Format: ATX
MB-Socket: 1700
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 4
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
