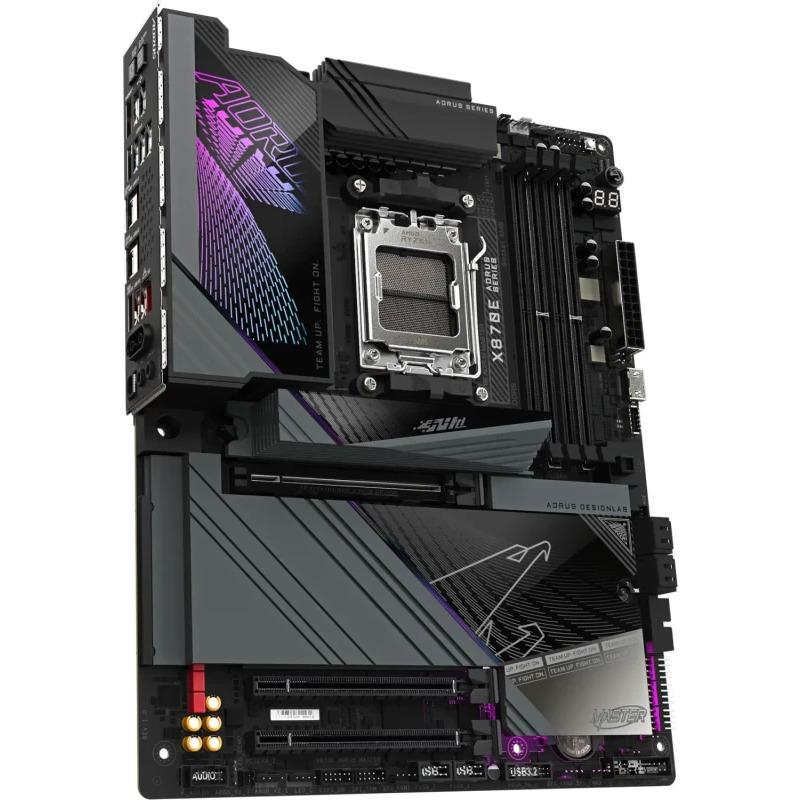

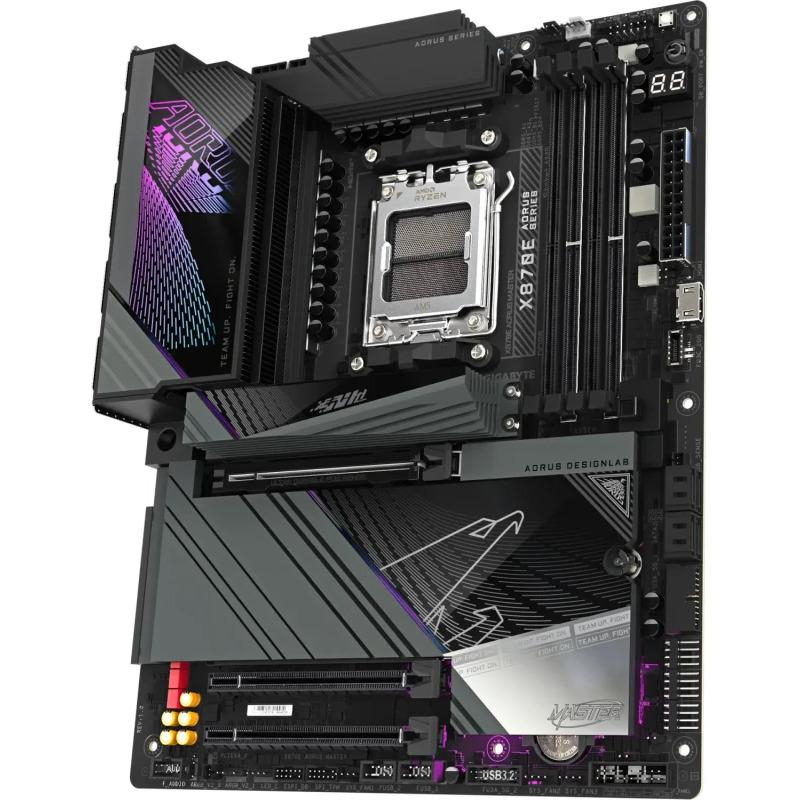

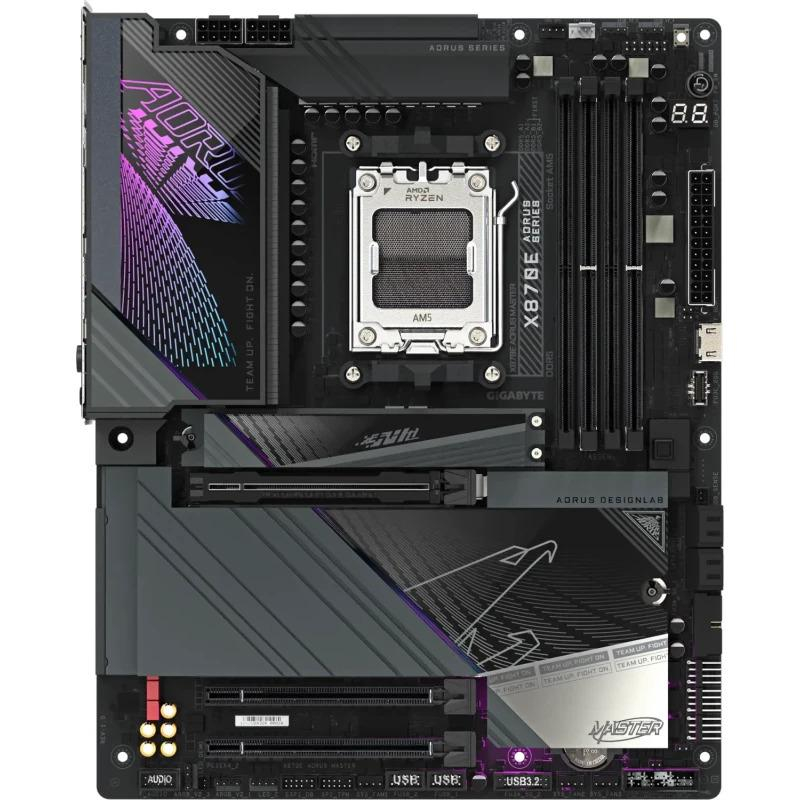

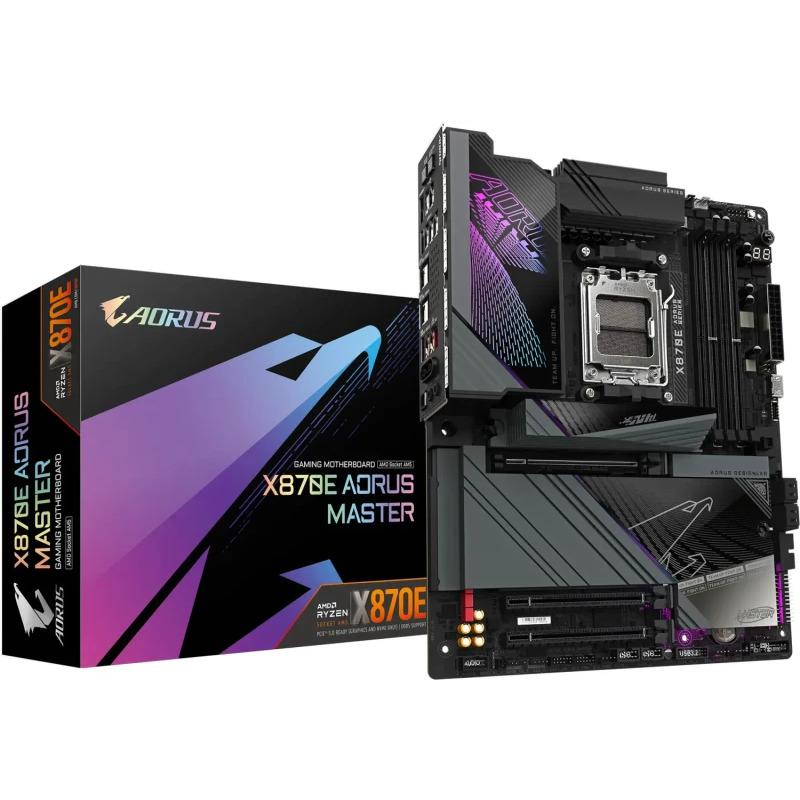

MB GIGABYTE X870E AORUS MASTER

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

3rd M.2 largest key size: 22110

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots:

PCI Express x1 (Gen 4.x) slots:

PCI Express x4 (Gen 4.x) slots:

4th M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 4

PCI Express x4 slots: 2

PCI Express x8 (Gen 3.x) slots:

PCI Express x8 (Gen 4.x) slots:

PCI Express x8 (Gen 5.x) slots:

2nd M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 5.0

4th M.2 largest key size: 22110

Motherboard chipset: AMD X870

Audio Chip: Realtek ALC1220

PC health monitoring: Fan, Temperature, Voltage

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset family: AMD

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64

Parallel processing technology support: Not supported

DirectX version: 12.0

On-board graphics card: No

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of chassis fan connectors: 6

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Number of RGB LED pin headers: 5

Country of origin: China

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8200,8400,8600 MHz

Supported memory clock speed (max): 8600 MHz

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 64 GB

Memory channels: Dual-channel

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-FI: Yes

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 7 (802.11be)

WLAN controller model: Qualcomm QCNCM865

LAN controller: Realtek RTL8126

Ethernet interface type: 5 Gigabit Ethernet

PCI Express x4 (Gen 3.x) slots:

Weight: 2.54 kg

Antenna included: Yes

Screws included: Yes

Package width: 34.5 mm

Package height: 80 mm

Package depth: 294 mm

Package weight: 2.97 kg

DVI-D ports quantity:

DisplayPorts quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

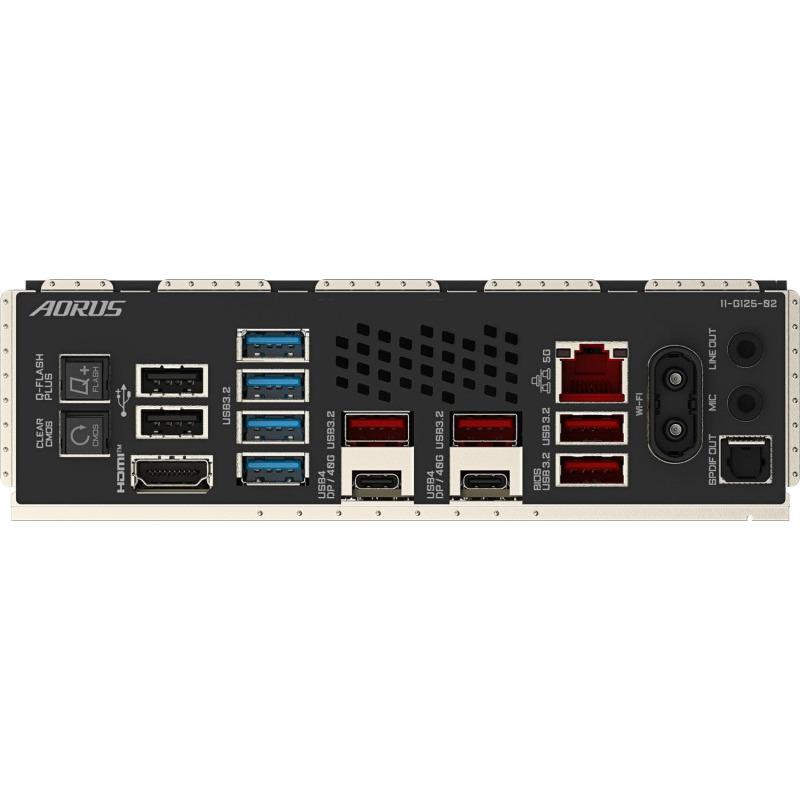

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 2.0 ports quantity: 2

DisplayPort version: 1.4

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

Maximum internal memory supported by processor: 256 GB

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

WiFi-AP antenna jack: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB4 Gen 3x2 ports quantity:

Line-in: Yes

VGA (D-Sub) ports quantity: 0

S/PDIF out port: Yes

USB 3.2 Gen 2x2 Type-C ports quantity:

USB4 Gen 2x2 ports quantity: 2

PS/2 ports quantity:

Headphone outputs: 1

RAID levels: 0, 1, 10

Number of storage drives supported: 8

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Height: 35 mm

Width: 30.5 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: Yes/No

Garantia Produsului: 36 luni
