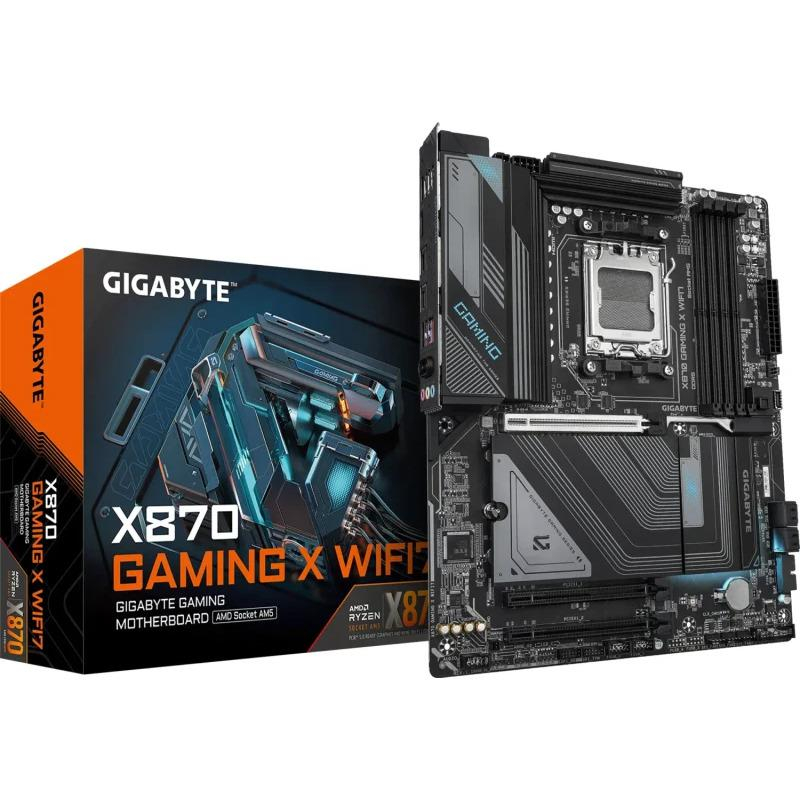

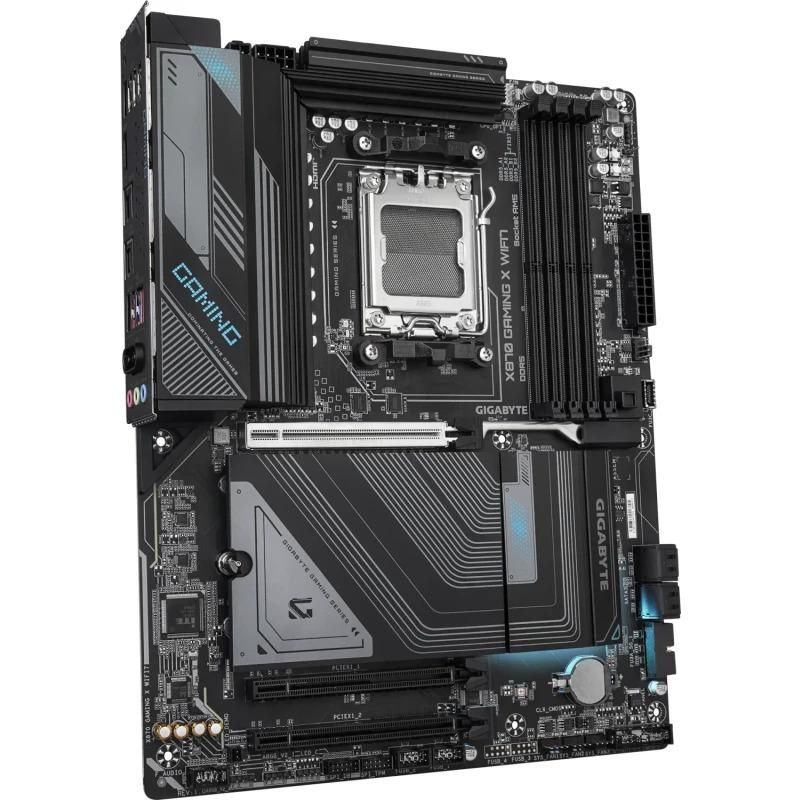

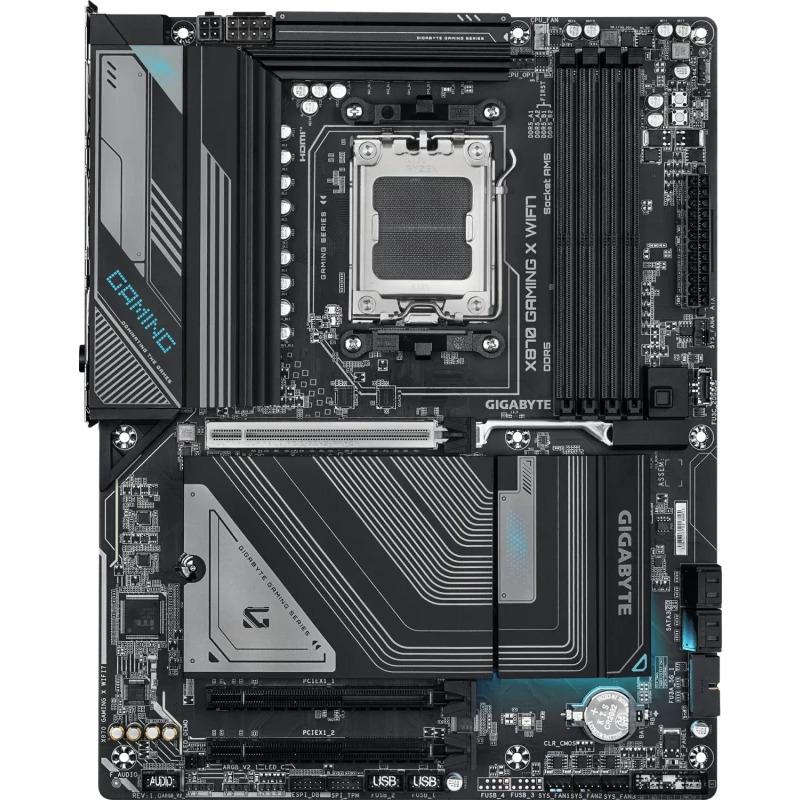

MB GIGABYTE X870 GAMING X WIFI7

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Clear CMOS button: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Number of M.2 (M) slots: 3

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x1 (Gen 3.x) slots:

PCI Express x1 (Gen 4.x) slots:

PCI Express x4 (Gen 4.x) slots:

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots:

2nd M.2 largest key size: 25110

3rd M.2 largest key size: 25110

PCI Express x4 slots: 2

PCI Express x8 (Gen 3.x) slots:

PCI Express x8 (Gen 4.x) slots:

PCI Express x8 (Gen 5.x) slots:

Motherboard chipset: AMD X870

PC health monitoring: Fan, Temperature, Voltage

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset family: AMD

Parallel processing technology support: Not supported

DirectX version: 12.0

On-board graphics card: No

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of chassis fan connectors: 4

TPM connector: Yes

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

Peripheral (Molex) power connectors (4-pin): 1

Number of EPS power connectors (8-pin): 1

USB 3.2 Gen 2x2 connectors: 1

Number of water pump connectors: 1

Country of origin: China

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz

Supported memory clock speed (max): 8200 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

WLAN controller model: MediaTek MT7925

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Weight: 2.23 kg

PCI Express x4 (Gen 3.x) slots:

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Antenna included: Yes

Screws included: Yes

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Package weight: 2.53 kg

DVI-D ports quantity:

DisplayPorts quantity: 0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

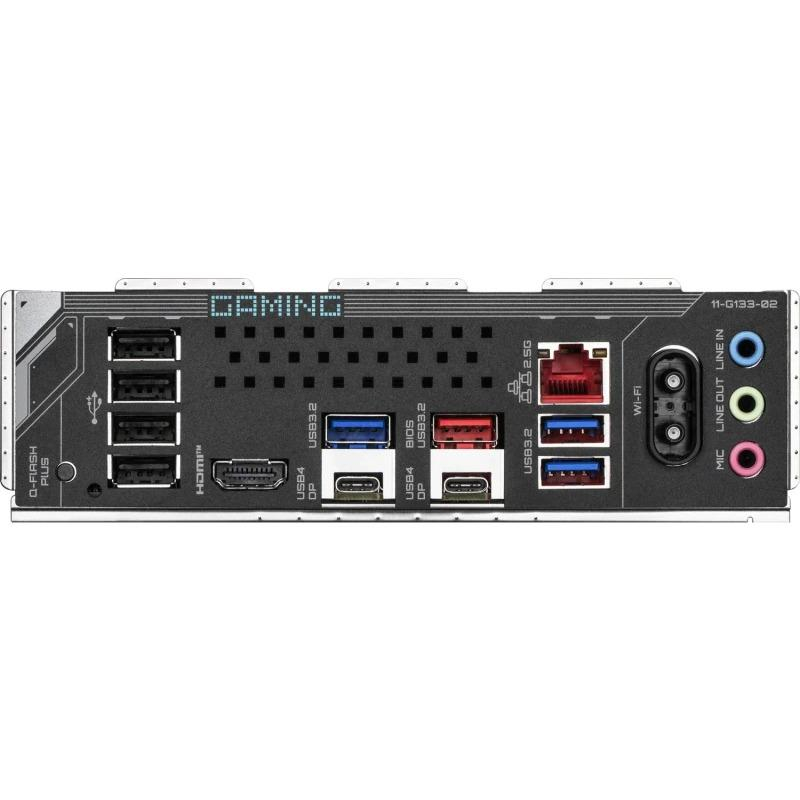

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

HDMI version: 2.1

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Maximum internal memory supported by processor: 256 GB

USB4 Gen 2x2 ports quantity: 2

PS/2 ports quantity:

Microphone in: Yes

Headphone outputs: 1

WiFi-AP antenna jack: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB4 Gen 3x2 ports quantity:

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 2x2 Type-C ports quantity:

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 7

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 7

RAID levels: 0, 1, 10

Depth: 24.4 mm

Width: 30.5 mm

Height: 35 mm

MB-Format: ATX

PCI-Ex1: 0

PCI-Ex16: 3

RAM-Slots: 4

MB-Socket: AM5

USB3: 4-8

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: Yes/No

Garantia Produsului: 36 luni
