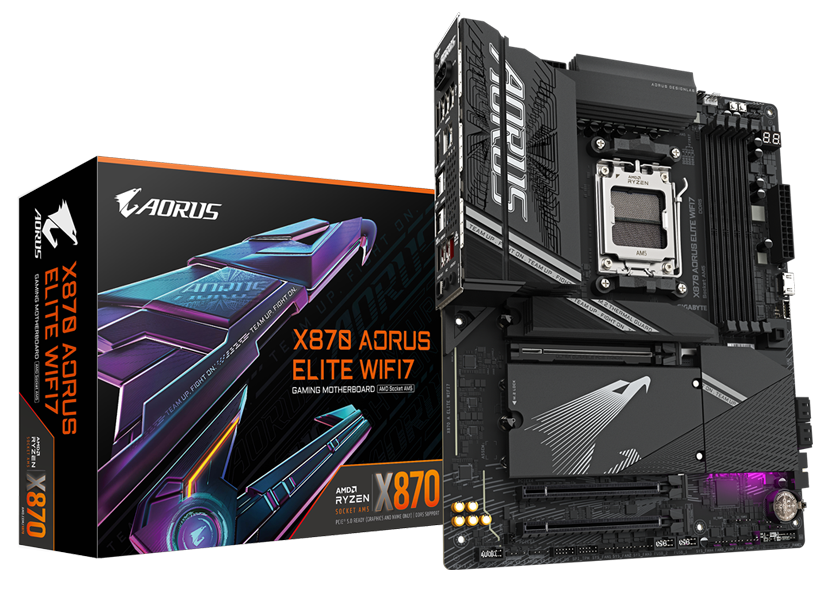

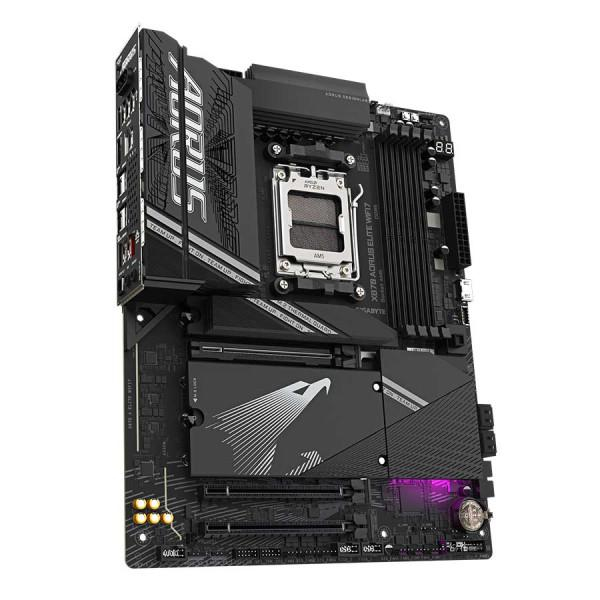

MB GIGABYTE X870 AORUS ELITE WIFI7

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 AM5, 4x DDR5, 1x HDMI 1x front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 3.x) slots: 0
PCI Express x1 (Gen 4.x) slots: 0
PCI Express x4 (Gen 4.x) slots: 0
4th M.2 highest PCI Express generation: 4.0
PCI Express x4 slots: 2
PCI Express x8 (Gen 3.x) slots: 0
PCI Express x8 (Gen 4.x) slots: 0
PCI Express x8 (Gen 5.x) slots: 0
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
PC health monitoring: Fan, Temperature, Voltage
Motherboard chipset: AMD X870
Audio Chip: Realtek ALC1220
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Parallel processing technology support: Not supported
On-board graphics card: No
DirectX version: 12.0
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 3.2 Gen 2x2 connectors: 1
Number of water pump connectors: 3
Number of chassis fan connectors: 6
Country of origin: China
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: MediaTek MT7925
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth version: 5.4
Weight: 2.4 kg
PCI Express x4 (Gen 3.x) slots: 0
mSATA ports quantity: 0
Screws included: Yes
Antenna included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.74 kg
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB4 Gen 3x2 ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 0
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 0
DisplayPort version: 1.4
DisplayPorts quantity: 2
DVI-D ports quantity: 0
WiFi-AP antenna jack: 2
USB4 Gen 2x2 ports quantity: 2
PS/2 ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 8
RAID levels: 0, 1, 10
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Depth: 24.4 mm
Width: 30.5 mm
Height: 35 mm
MB-Format: ATX
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 4
MB-Socket: AM5
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
