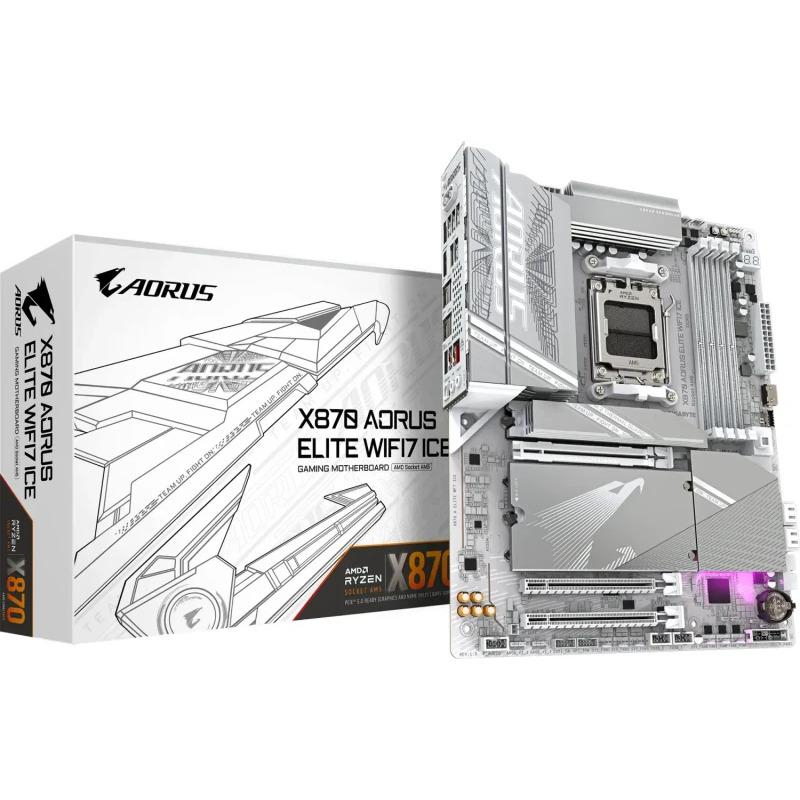

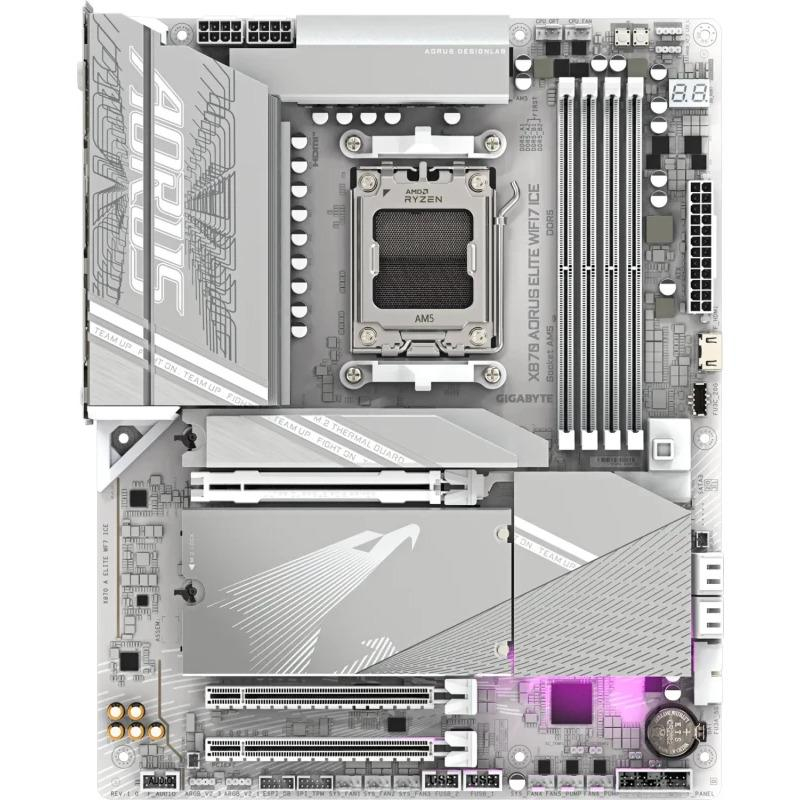

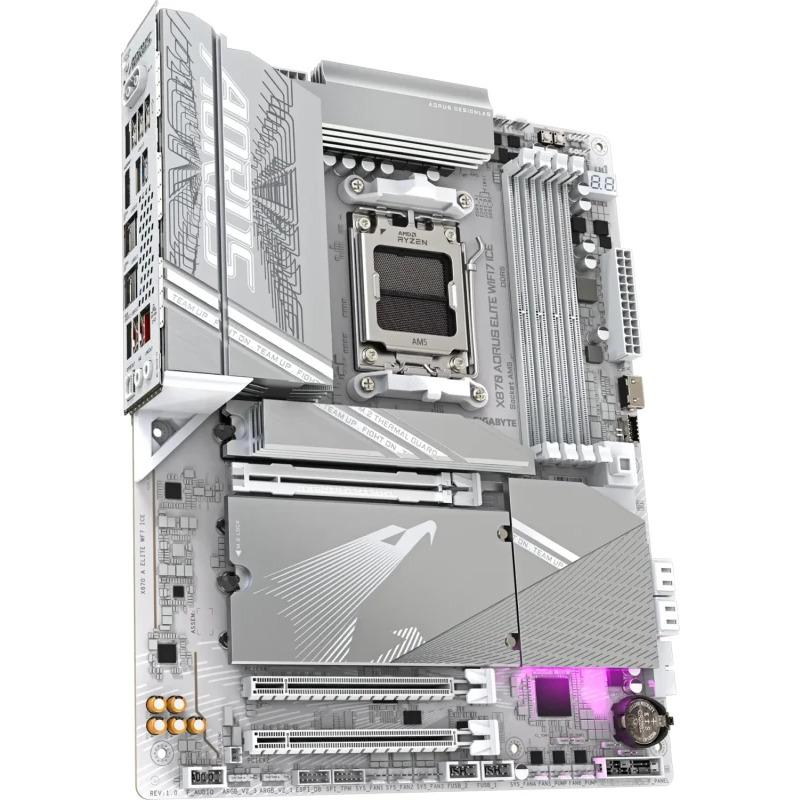

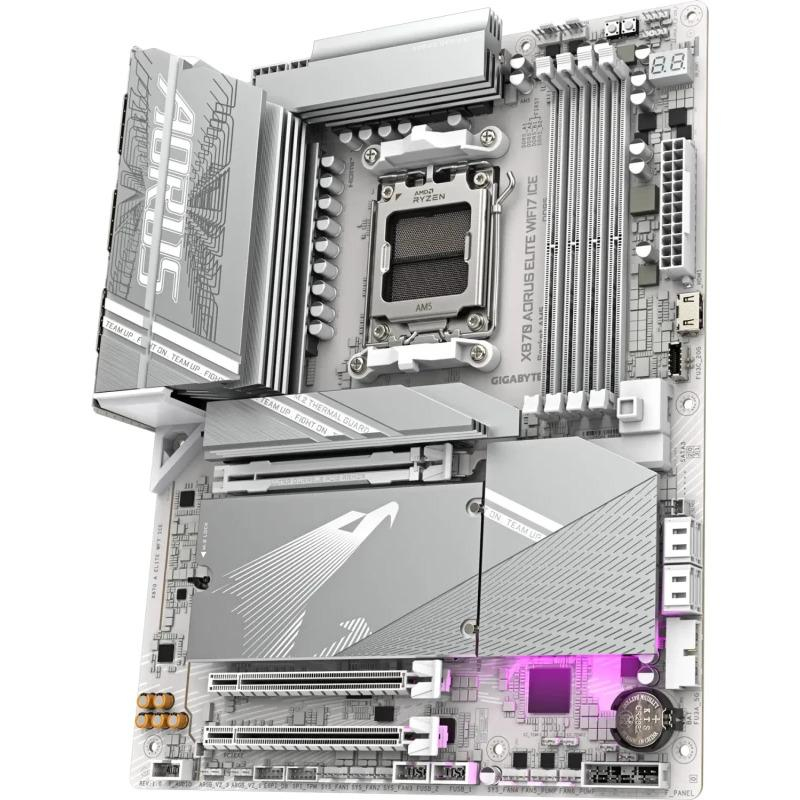

MB GIGABYTE X870 AORUS ELITE WIFI7 ICE

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 4x DDR5, 1x PCIE Gen5 x16 2x PCIE 4.0 x4, 4x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Clear CMOS button: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 3.x) slots: 0
PCI Express x1 (Gen 4.x) slots: 0
PCI Express x4 (Gen 4.x) slots: 0
4th M.2 highest PCI Express generation: 4.0
PCI Express x8 (Gen 3.x) slots: 0
PCI Express x8 (Gen 4.x) slots: 0
PCI Express x8 (Gen 5.x) slots: 0
2nd M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
PC health monitoring: Fan, Noise, Temperature, Voltage, Water cooling
Motherboard chipset family: AMD
Motherboard chipset: AMD X870
Audio Chip: Realtek ALC1220
Product colour: White
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
On-board graphics card: Yes
On-board graphics card model: AMD Radeon Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Number of displays supported: 4
Discrete graphics support: Yes
USB 3.2 Gen 2x2 connectors: 1
Total number of SATA connectors: 4
12V power connector: Yes
Number of chassis fan connectors: 6
Number of water pump connectors: 3
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max): 8200 MHz
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet LAN: Yes
Wi-FI: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
WLAN controller model: MediaTek MT7925
Bluetooth version: 5.4
Bluetooth: Yes
Weight: 2.4 kg
PCI Express x4 (Gen 3.x) slots: 0
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package weight: 2.74 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Maximum internal memory supported by processor: 256 GB
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB4 Gen 3x2 ports quantity: 2
DisplayPort version: 1.4
VGA (D-Sub) ports quantity: 0
USB4 Gen 2x2 ports quantity: 0
DisplayPorts quantity: 0
DVI-D ports quantity: 0
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
WiFi-AP antenna jack: 2
PS/2 ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 8
RAID levels: 0, 1, 10
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2
RAID support: Yes
Warranty period: 3 year(s)
Width: 30.5 mm
Height: 35 mm
Depth: 24.4 mm
MB-Format: ATX
PCI-Ex1: 0
PCI-Ex16: 3
RAM-Slots: 4
MB-Socket: AM5
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
