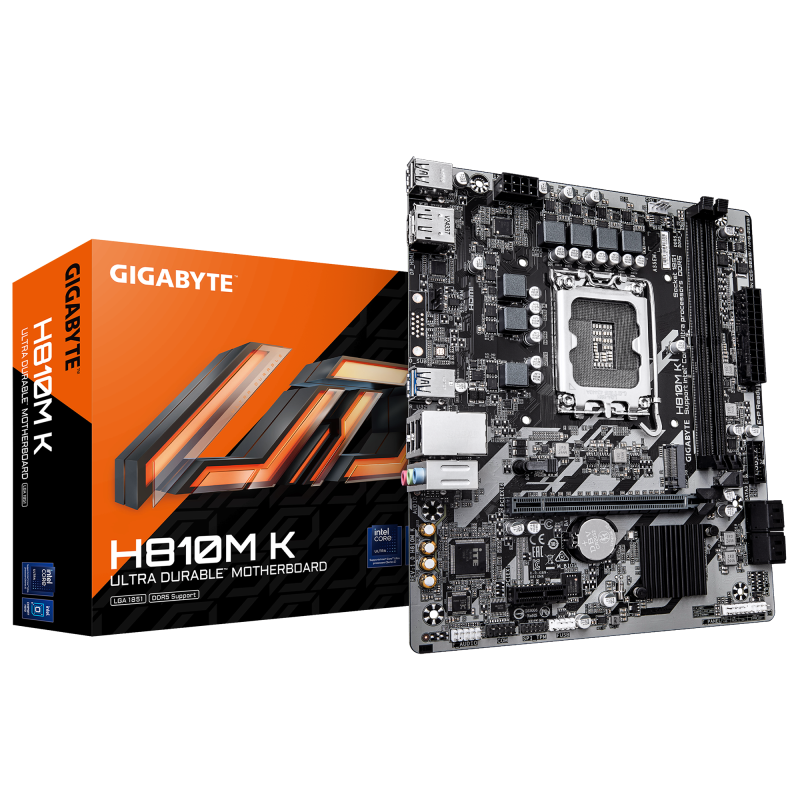

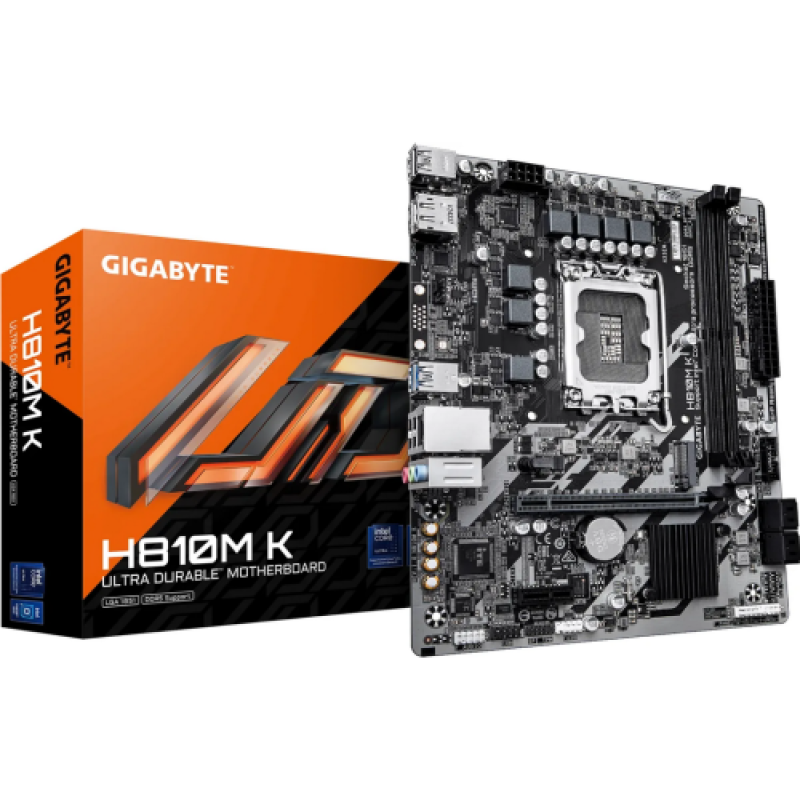

MB GIGABYTE H810M K LGA1851 DDR5

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

RJ-45: 1

HDMI: 1

Bluetooth: Nu

Thunderbolt: Nu

USB 2.0: 4

DisplayPort: 1

Suport audio: 7.1

USB 3.2 Gen1 tip A: 2

Audio jacks: 3

Product colour: Dark brown

Cooling type: Passive

Number of M.2 (M) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

Motherboard chipset: Intel H810

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Power source type: ATX

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Recomandat Gaming: Da

SATA III: 4

RAID: 0, 1, 5, 10

Procesoare suportate: Intel Core Ultra din a doua serie

Placa video integrata: Necesita procesor cu tehnologia Intel Integrated Graphics

Chipset audio: Realtek ALC897

Interfata grafica: PCI Express x16 4.0

Format: mATX

Placa retea integrata: 1 Gbps

Chipset retea: Realtek GbE

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

NGFF (M.2): 1

Alte specificatii: Suporta profil de memorie XMP

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

Number of chassis fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 1

USB 2.0 connectors: 1

Serial port headers: 1

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Sloturi memorie: 2

Frecvente suportate: 6400/5600 MHz

Capacitate maxima memorie RAM: 128 GB

Memorie Suportata: DDR5

Tehnologie: Dual channel

Tip Memorie: DDR5

Memorie maxima: N/A

Supported memory clock speeds: 5600,6400 MHz

Supported memory clock speed (max): 6400 MHz

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 64 GB

Memory slots type: DIMM

Unbuffered memory: Yes

Number of memory slots: 2

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: No

LAN controller: Realtek RTL8111H

Weight: 688 g

Batteries included: Yes

Screws included: Yes

Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software

Package height: 54 mm

Package weight: 766.6 g

Package width: 265 mm

Package depth: 265 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPort version: 2.1

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

Chipset: H810

Producator chipset: Intel

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

VGA (D-Sub) ports quantity: 0

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Microphone in: Yes

Headphone outputs: 1

PCI Express 4.0: 1 (x16)

Header USB 3.0: Da

PCI Express x1: 1

Dimensiuni (L x l, cm): 22.6 x 18.5 cm

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Model Chipset: H810

Canale audio: N/A

Sloturi M.2: 1

RJ-45 LAN: N/A

Chipset audio integrat: Realtek

Soclu Procesor: Socket 1851

USB Type C: N/A

Tip slot interfata grafica: PCIe 4.0 x16

Numar sloturi memorie: 2

Gaming: Nu

Height: 35 mm

Width: 226 mm

Depth: 185 mm

MB-Socket: LGA1851

MB-Format: micro-ATX

RAM-Slots: 2

PCI: 0

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
