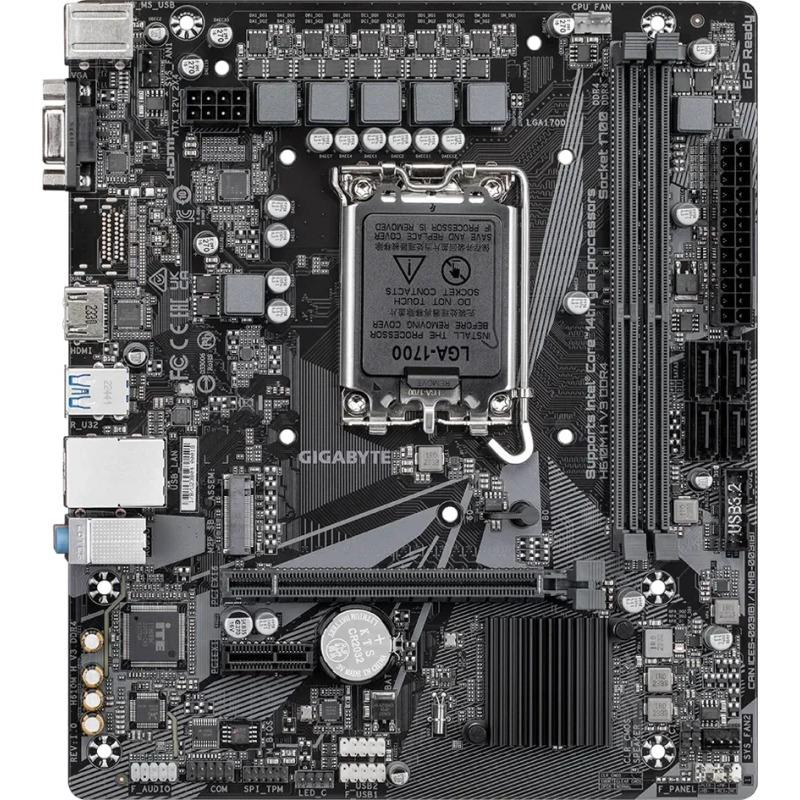

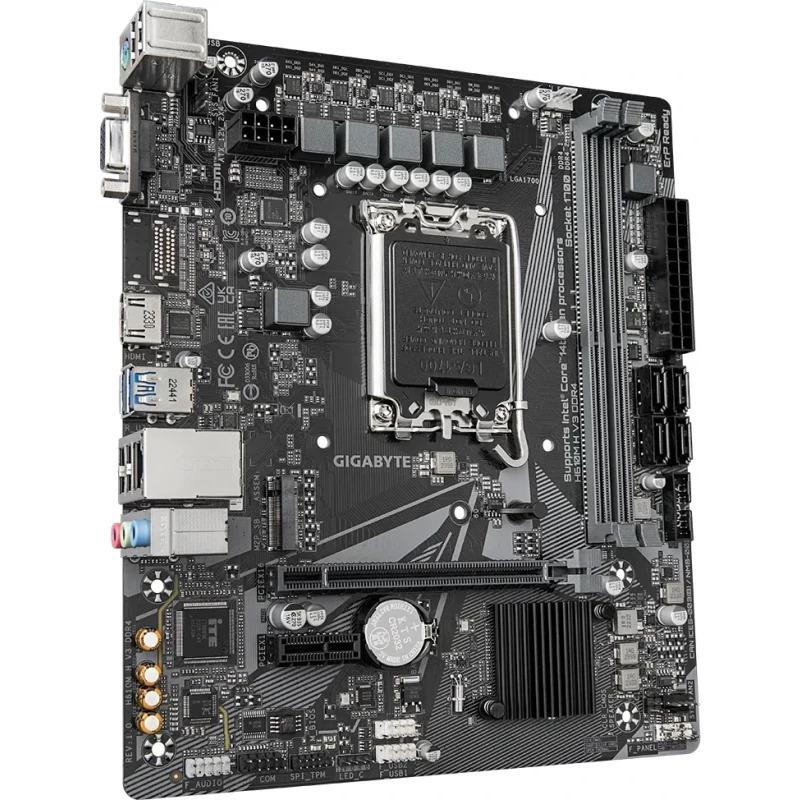

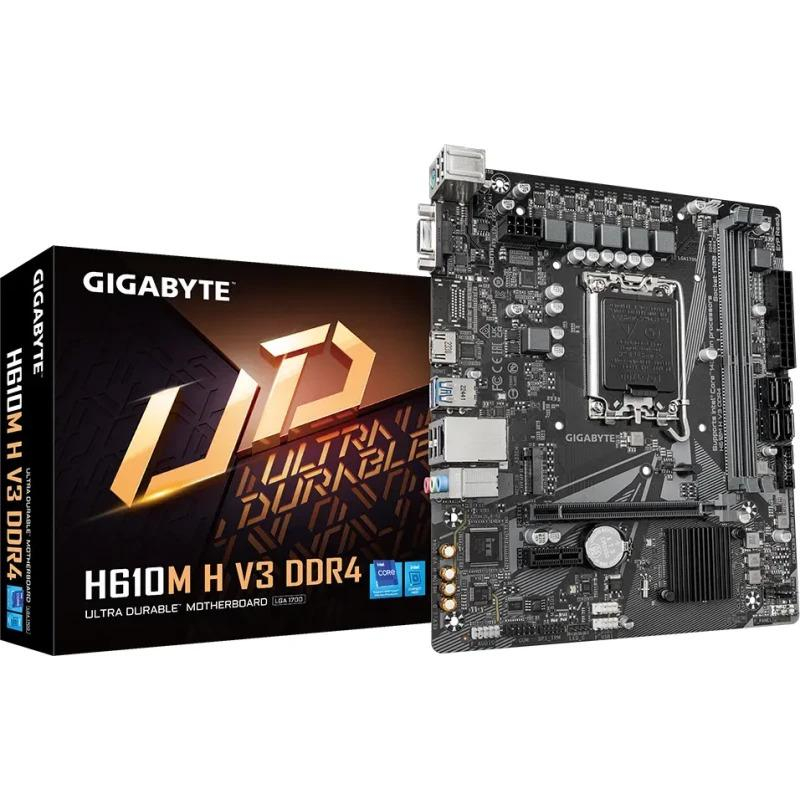

MB GIGABYTE H610M H V3 LGA1700 DDR4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Cooling type: Active

PCI Express x16 slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 slots: 1

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset: Intel H610 Express

Power source type: ATX

Graphics card: HD Graphics

Maximum resolution: 4096 x 2304 pixels

Graphics card family: Intel

Parallel processing technology support: Not supported

HDCP: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

12V power connector: Yes

Serial port headers: 1

Country of origin: China

Supported memory clock speed (max): 3200 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory clock speeds: 3200, 3000, 2933, 2666, 2400, 2133 MHz

ECC сompatibility: ECC & Non-ECC

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory types: DDR4-SDRAM

Number of memory slots: 2

Memory channels: Dual-channel

Maximum internal memory: 64 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: Gigabit Ethernet

Cables included: SATA

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package width: 265 mm

Package depth: 235 mm

Package height: 52 mm

Package weight: 684 g

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

DisplayPorts quantity: 2

DVI-D ports quantity: 1

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

USB connector type: USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 1

PS/2 ports quantity: 1

Headphone outputs: 3

Microphone in: Yes

Number of HDDs supported: 1

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Depth: 215 mm

Height: 35 mm

Width: 230 mm

MB-Socket: 1700

MB-Format: micro-ATX

RAM-Slots: 2

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
