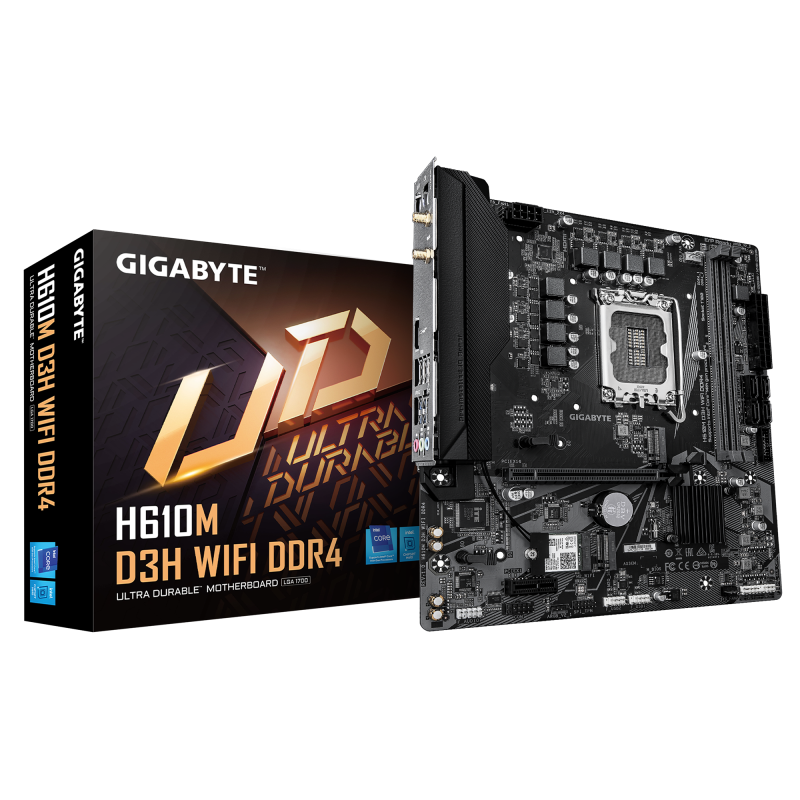

MB GIGABYTE H610M D3H LGA1700 DDR4

Placa de Baza GIGABYTE H610M D3H DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0
2nd M.2 highest PCI Express generation: 3.0
Motherboard chipset: Intel H610
Product colour: Dark brown
Power source type: ATX
Cooling type: Passive
Audio output channels: 7.1 channels
Audio Chip: Realtek ALC897
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Serial port headers: 1
Number of RGB LED pin headers: 2
Products per shipping (inner) case: 1 pc(s)
Maximum internal memory per slot: 32 GB
Supported memory clock speeds: 2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max): 3200 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Ethernet interface type: Gigabit Ethernet
Wi-FI: Yes
LAN controller: Realtek RTL8111H
Bluetooth version: 5.1
Bluetooth: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Intel Dual Band Wireless-AC 9560
Weight: 930 g
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Antenna included: Yes
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Package weight: 106 kg
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Line-in: Yes
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
Microphone in: Yes
Headphone outputs: 1
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 220 mm
MB-Socket: 1700
MB-Format: micro-ATX
RAM-Slots: 2
USB3: 4-8
PCI-Ex1: 1
PCI-Ex16: 1
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
